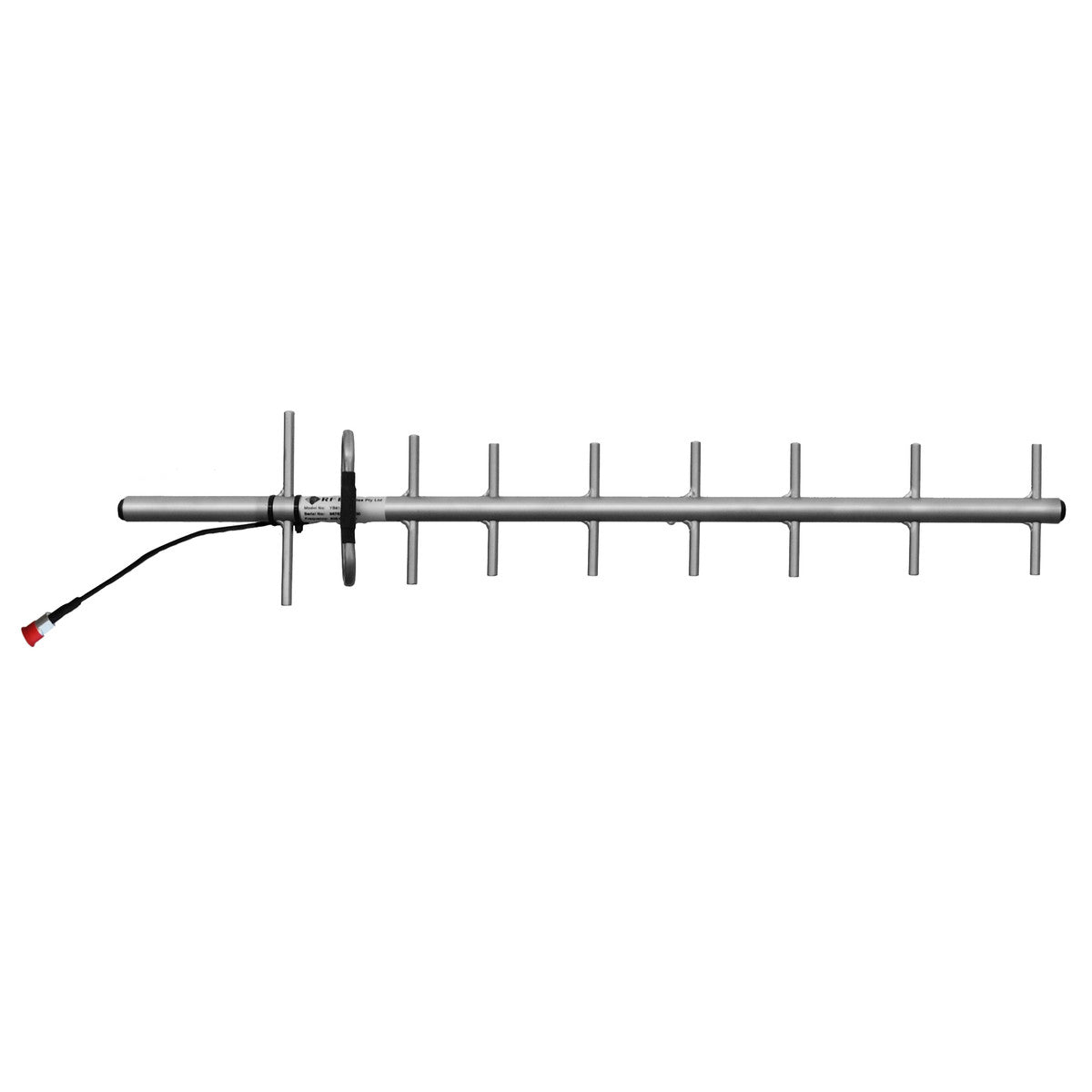

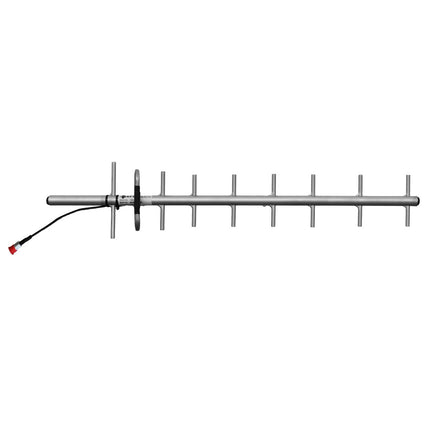

The RFI YBS809-82 is a 9-element stainless steel Yagi antenna designed for directional communication in the 850–960 MHz frequency range. With a 12 dBi gain and rugged construction, it is ideal for use in corrosive environments requiring high reliability and low PIM performance.

Features:

• The RFI YBS809-82 antenna provides 12 dBi gain for strong and focused signal transmission.
• It is constructed from all-welded 316 grade stainless steel for maximum durability in extreme conditions.
• The antenna features narrow beamwidth and high front-to-back ratios to reduce interference.
• It is -150 dBc PIM rated, ensuring low passive intermodulation for critical RF applications.
• The antenna includes a short 9302 Durathene cable tail with an N female connector for superior weather resistance.
• The Durathene cable is more resistant to bird damage than standard PVC cables.
• It supports stacking or baying using PH and PHE series phasing harnesses for higher gain configurations.
• The antenna includes DC grounding on all elements for lightning protection and static noise dissipation.
• It is suitable for broadband use across trunking, cellular, and ISM bands.

Application Areas:

• The antenna is ideal for point-to-point and point-to-multipoint communication in harsh or corrosive environments.
• This antenna is suitable for broadband RF systems requiring low PIM and high gain.
• It is designed for use in trunking, cellular, and ISM band applications.

In the Box:

• 1x RFI YBS809-82 9 Element SS Yagi Antenna

Documents:

RFI YBS809-82 Yagi Antenna - Datasheet Phasing of RFI Yagi Antenna - Technical Guide
