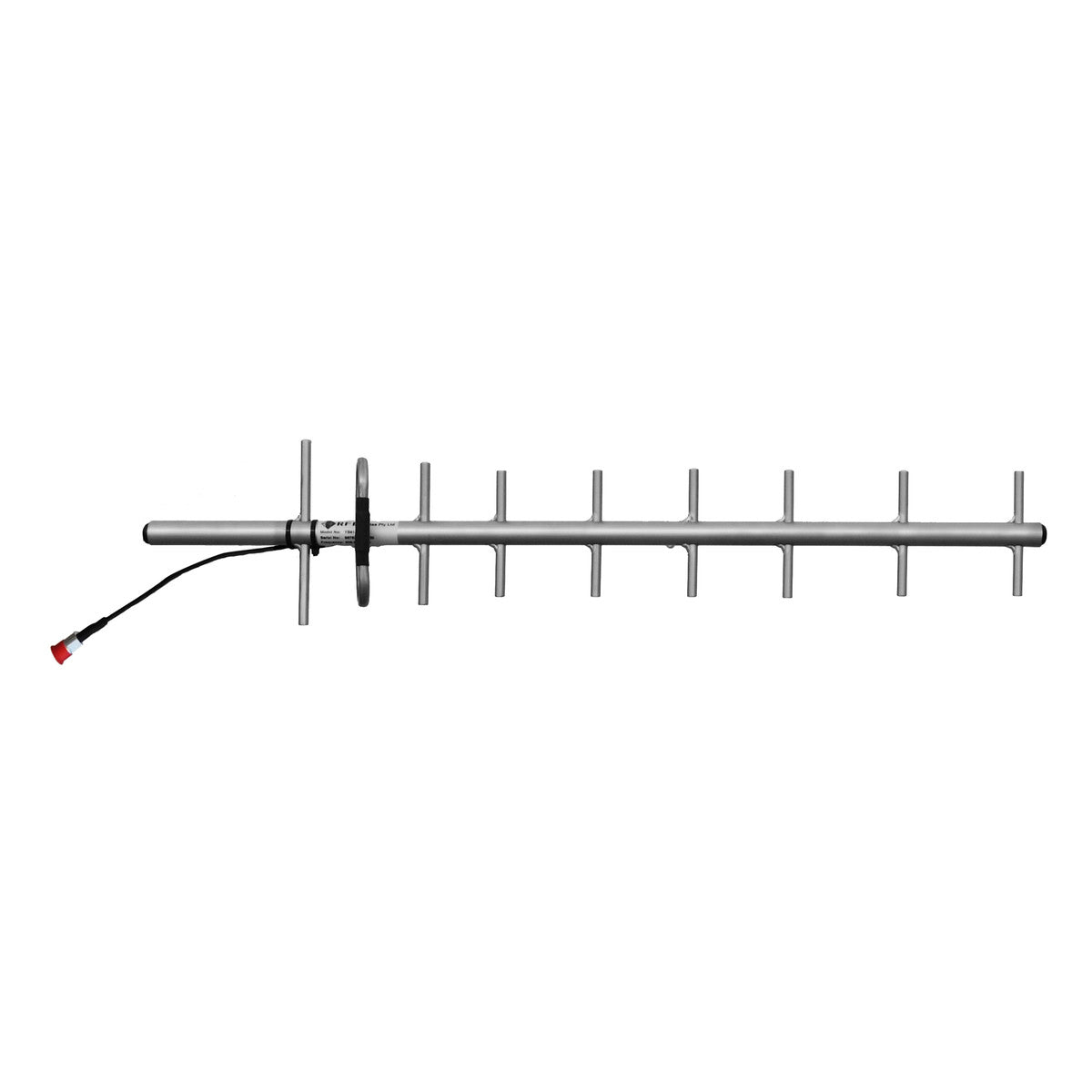

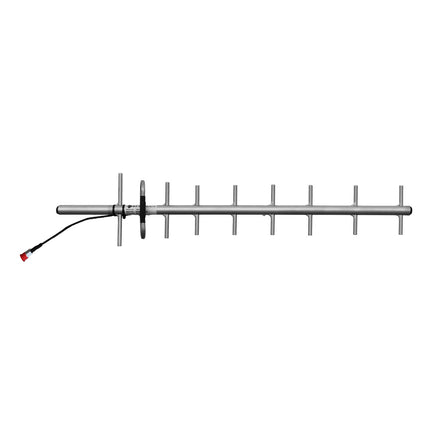

The RFI YBS809-99 is a custom-tuned 9-element stainless steel Yagi antenna designed for broadband directional communication across the 540–1000 MHz frequency range. With a 13 dBi gain and low PIM rating, it is built for high-performance RF systems operating in extreme and corrosive environments.

Features:

• The RFI YBS809-99 antenna is custom tuned for operation across the 540–1000 MHz frequency range.
• It delivers 13 dBi gain for high-performance broadband communication.
• The all-welded 316 grade stainless steel construction ensures durability in corrosive and extreme conditions.
• The antenna features narrow beamwidth and high front-to-back ratios to minimize interference.
• It is -150 dBc PIM rated, ensuring low passive intermodulation for sensitive RF applications.
• The antenna includes a short 9302 Durathene cable tail with an N female connector for excellent weather and abrasion resistance.
• The Durathene cable is less susceptible to bird damage than standard PVC sheathed cables.
• It supports stacking or baying using PH and PHE series phasing harnesses for higher gain configurations.
• The antenna includes DC grounding on all elements for lightning protection and static noise dissipation.

Application Areas:

• The antenna is ideal for broadband point-to-point and point-to-multipoint communication in corrosive or extreme environments.
• This antenna is suitable for RF systems requiring custom frequency tuning and low PIM performance.
• It is designed for use in trunking, cellular, and ISM band applications.

In the Box:

• 1x RFI YBS809-99 9 Element SS Yagi Antenna (custom tuned)

Documents:

RFI YBS809-99 Yagi Antenna - Datasheet Phasing of RFI Yagi Antenna - Technical Guide
