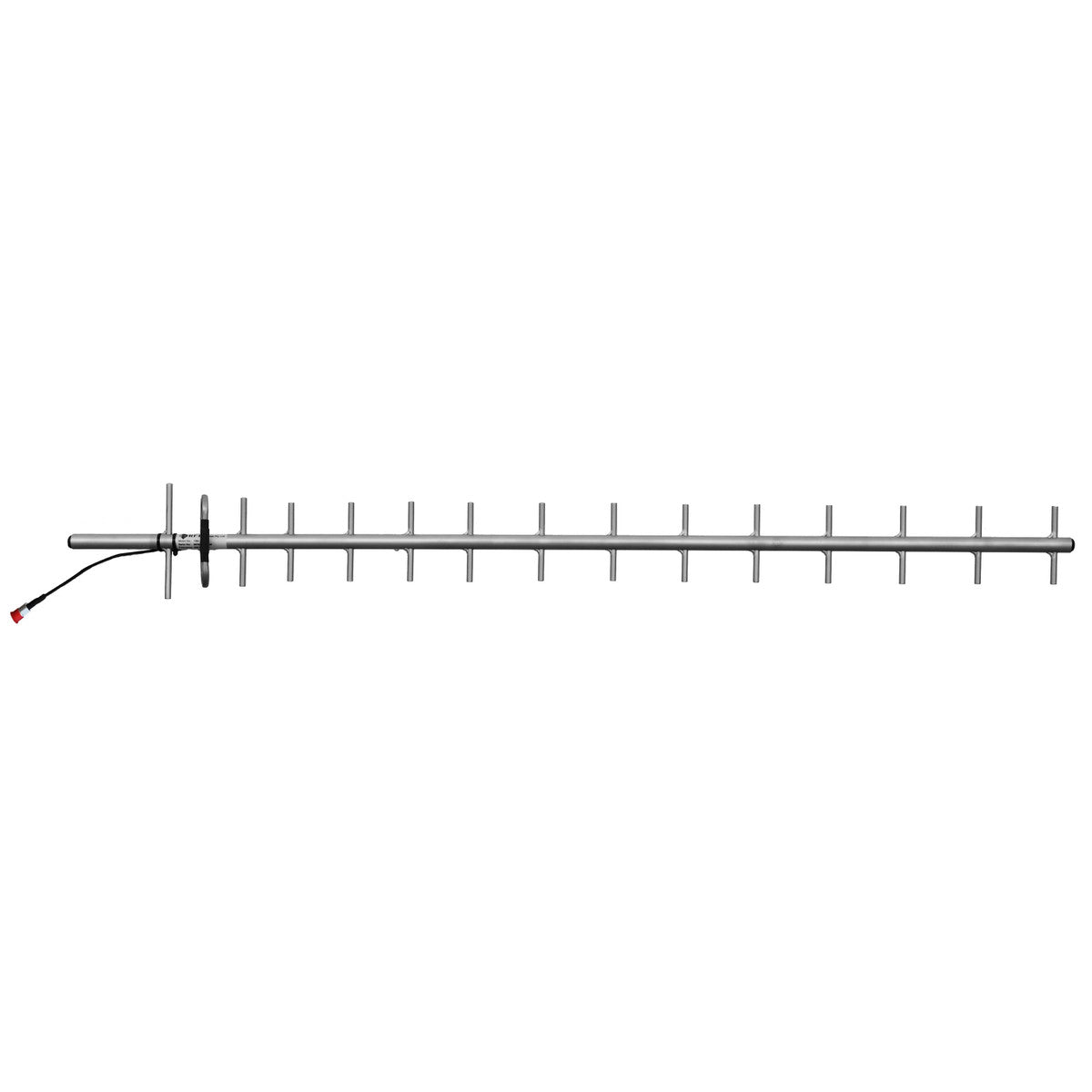

RFI YBS815-82 15 Element Yagi Antenna, 850-930 MHz, 15 dBi

RFI YBS815-82 15 Element Yagi Antenna, 850-930 MHz, 15 dBi

Available

Brand:
Item ID:
167016275
Export:
Restricted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
YBS815-82
Send Request for Quote (RFQ) Discount Offers
The RFI YBS815-82 is 15 dBi 15-element stainless steel Yagi antenna designed for high-gain directional communication across the 850–930 MHz frequency range.
Regular price $437.50
Regular price $0.00 Sale price $437.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI YBS815-82 is a 15-element stainless steel Yagi antenna designed for high-gain directional communication across the 850–930 MHz frequency range. With all-welded 316-grade stainless steel construction, this antenna is built to perform reliably in extreme and corrosive environments while maintaining low PIM and high signal integrity.

Product Features:

  • The RFI YBS815-82 antenna is made from 316-grade stainless steel, ensuring durability and resistance to corrosion in harsh environments.
  • It operates across the 850–930 MHz frequency range, making it suitable for a variety of wireless communication needs.
  • It delivers 15 dBi gain with a narrow beamwidth and high front-to-back ratio, enhancing signal clarity and reducing interference.
  • The all-welded construction provides structural integrity and long-term reliability.
  • It includes a short 9302 Durathene cable tail with an N female connector, offering excellent resistance to weathering, abrasion, and bird damage.
  • The antenna supports stacking or baying using PH and PHE series phasing harnesses for increased gain.
  • It is designed for both point-to-point and point-to-multipoint communication setups.
  • DC grounding on all elements ensures superior lightning protection and dissipation of static noise.

Application Areas:

  • The antenna is ideal for RF control and telemetry systems operating in corrosive or extreme environments.
  • It is suitable for directional communication in both short and long-haul point-to-point links.
  • It is a dependable solution for point-to-multipoint applications requiring high directionality and low PIM.
  • The design supports both horizontal and vertical polarization configurations.

In the Box:

  • 1x RFI YBS815-82 15 Element Stainless Steel Yagi Antenna

Documents:

RFI YBS815-82 Yagi Antenna - Datasheet Phasing of RFI Yagi Antenna - Technical Guide

Product Specifications

MPN YBS815-82
Antenna application Base Station Antenna
Antenna cable type 9302
Antenna features Directional
Antenna port connectors N (F)
Antenna type Directional Yagis
Brands RFI
Cable length m 0.1
Construction All welded stainless steel with polished finish
Coverage type Directional
Frequency band 900 MHz, 700 MHz, 800 MHz
Frequency mhz 850-930
Front back ratio db 18
Height 3
Horizontal beamwidth 30?
Installation type External mounting
Length 99
Low pim No
Max frequency mhz 930
Max gain dbd dbi 15
Mimo support No
Min frequency mhz 850
Min gain dbd dbi 15
Mount supported Clamp mount
Mount supported detailed UCR1
Mounting area 100mm of 25mm diam. stainless steel
No of antenna ports 1
Power w 100
Technologies supported UHF
Termination N female with short 9302 cable tail
Torque nm 53
Tuned bandwidth Full band
Vertical beamwidth 30?
Vswr <1.5:1
Width 3
Wind gust km h 240
Wind thrust 76
