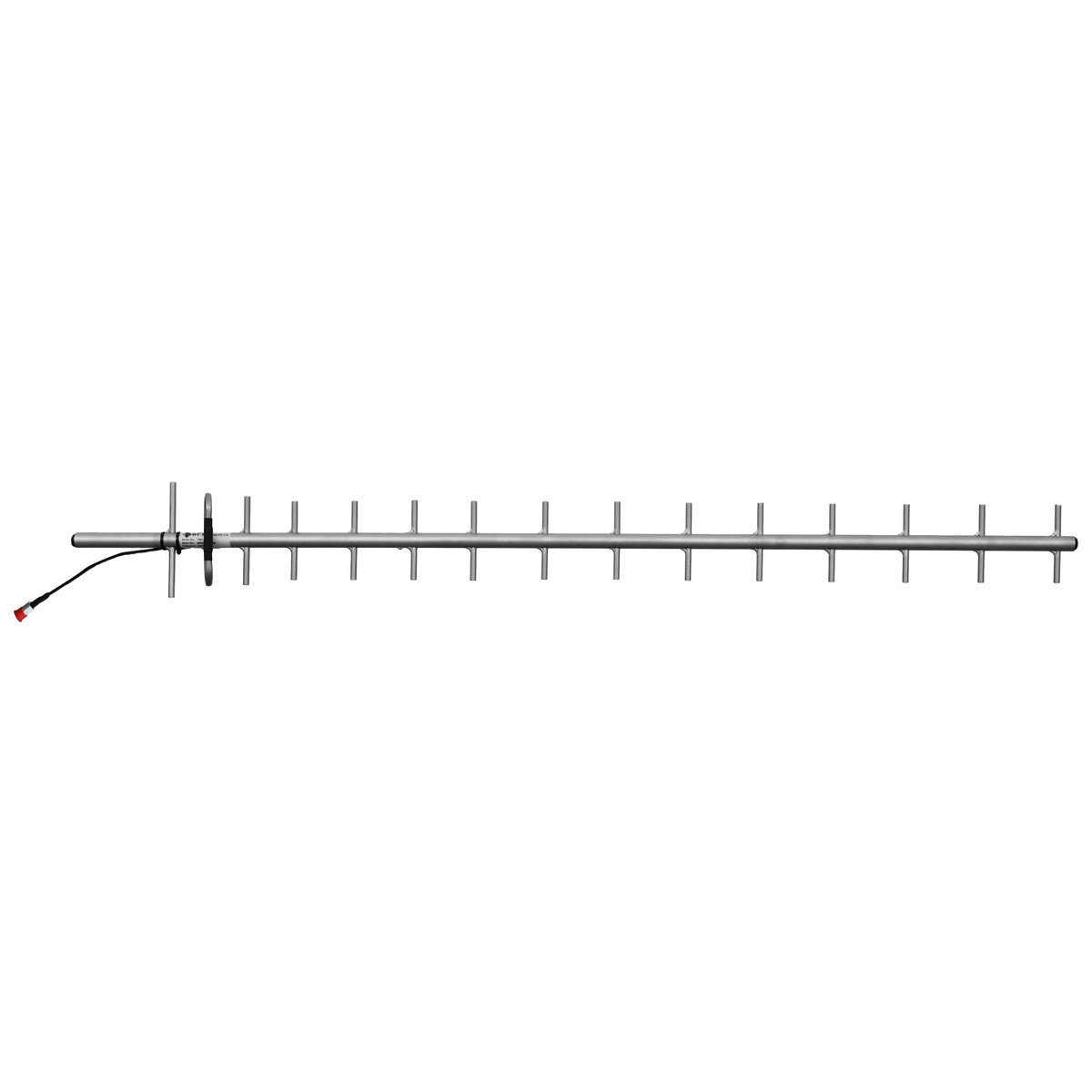

RFI YBS815-94 15 Element Yagi Antenna, 890-960 MHz, 15 dBi

RFI YBS815-94 15 Element Yagi Antenna, 890-960 MHz, 15 dBi

Available

Brand:
Item ID:
167014354
Export:
Restricted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
YBS815-94
Send Request for Quote (RFQ) Discount Offers
The RFI YBS815-94 is a 15-element Yagi antenna designed for 15 dBi high-gain directional communication across the 890–960 MHz frequency range.
Regular price $437.50
Regular price $0.00 Sale price $437.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI YBS815-94 is a 15-element Yagi antenna designed for high-gain directional communication across the 890–960 MHz frequency range. Built from all-welded 316-grade stainless steel, this antenna is engineered for extreme and corrosive environments, offering reliable performance and low Passive Intermodulation (PIM) characteristics.

Product Features:

  • The RFI YBS815-94 antenna is constructed from 316-grade stainless steel, providing exceptional durability in harsh and corrosive conditions.
  • This model operates within the 890–960 MHz frequency range, making it suitable for a variety of wireless communication needs.
  • It delivers 15 dBi gain with a narrow beamwidth and high front-to-back ratio for focused signal transmission.
  • The antenna includes a short 9302 Durathene cable tail with an N female connector, offering superior resistance to weathering, abrasion, and bird damage.
  • It supports stacking or baying using PH and PHE series phasing harnesses for higher gain configurations.
  • This antenna is ideal for both point-to-point and point-to-multipoint communication setups.
  • It features DC grounding on all elements for effective lightning protection and static noise dissipation.
  • The rugged, all-welded design ensures long-term performance in demanding environments.
  • It is optimized for applications requiring high directionality and signal integrity.

Application Areas:

  • The antenna is ideal for RF control and telemetry systems in corrosive or extreme environments.
  • This model is well-suited for directional communication in both short and long-haul point-to-point links.
  • It is a reliable choice for point-to-multipoint applications requiring high gain and low interference.
  • The design is suitable for industrial, coastal, and remote outdoor installations.

In the Box:

  • 1x RFI YBS815-94 15 Element Stainless Steel Yagi Antenna

Documents:

RFI YBS815 Antenna - Datasheet RFI YBS815 Antenna - Technical Support Guide

Product Specifications

MPN YBS815-94
Antenna application Base Station Antenna
Antenna cable type 9302
Antenna features Directional
Antenna port connectors N (F)
Antenna type Directional Yagis
Brands RFI
Cable length m 0.1
Construction All welded stainless steel with polished finish
Coverage type Directional
Frequency band 900 MHz, 700 MHz, 800 MHz
Frequency mhz 890-960
Front back ratio db 17
Height 3
Horizontal beamwidth 32?
Installation type External mounting
Length 99
Low pim No
Max frequency mhz 960
Max gain dbd dbi 15
Mimo support No
Min frequency mhz 890
Min gain dbd dbi 15
Mount supported Clamp mount
Mount supported detailed UCR1
Mounting area 100mm of 25mm diam. stainless steel
No of antenna ports 1
Power w 100
Technologies supported UHF
Termination N female with short 9302 cable tail
Torque nm 52
Tuned bandwidth Full band
Vertical beamwidth 31?
Vswr <1.5:1
Width 3
Wind gust km h 240
Wind thrust 74
