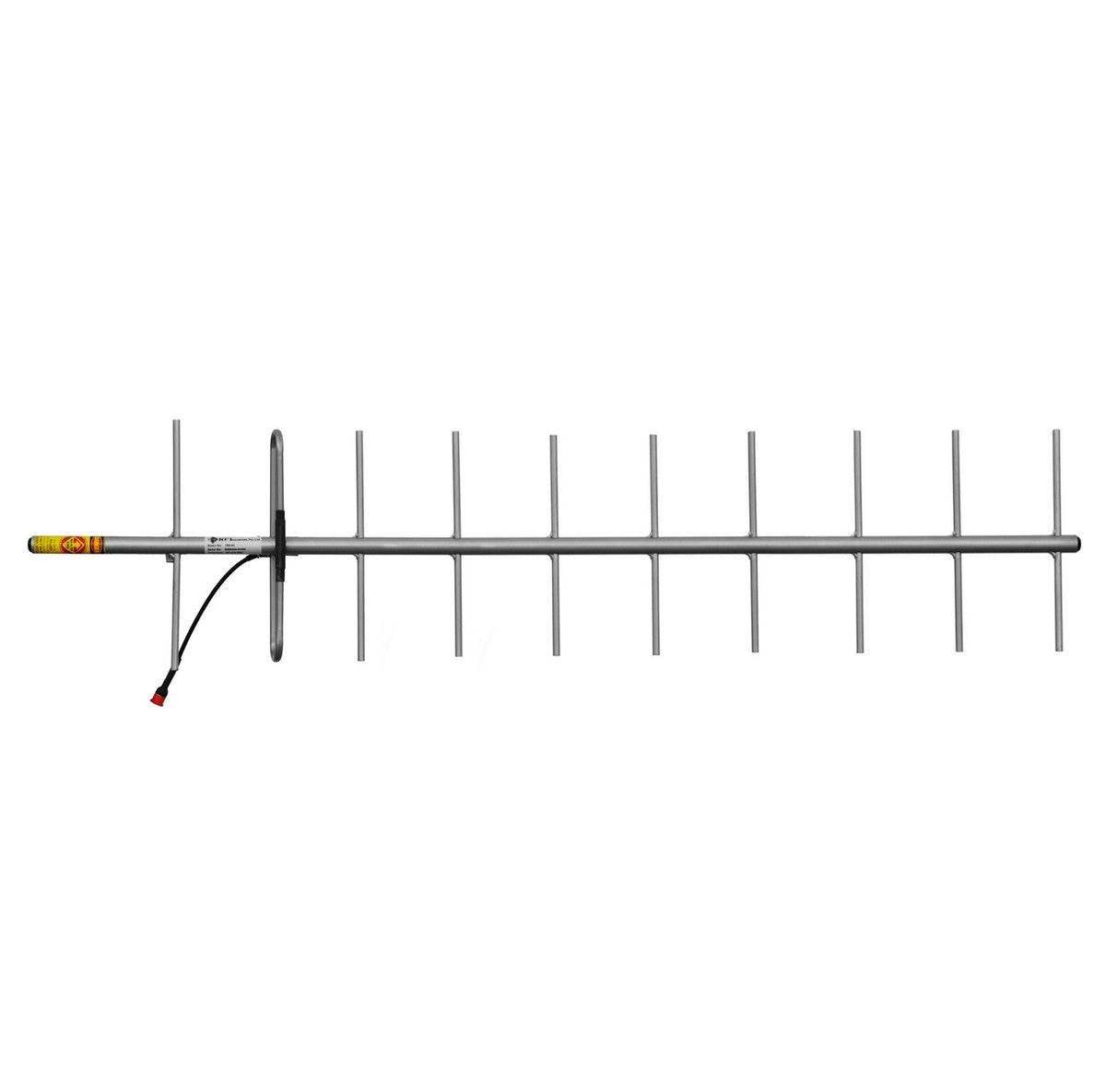

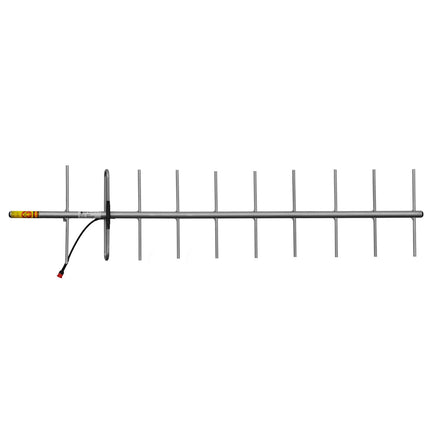

RFI YBSS10-65 10 Element Yagi Antenna, 400-420 MHz, 13 dBi

RFI YBSS10-65 10 Element Yagi Antenna, 400-420 MHz, 13 dBi

Low stock

Brand:
Item ID:
167016277
Export:
Restricted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
YBSS10-65
Send Request for Quote (RFQ) Discount Offers
The RFI YBSS10-65 is a 10-element stainless steel Yagi antenna designed for high-gain directional communication across the 400–420 MHz frequency range.
Regular price $500.00
Regular price $0.00 Sale price $500.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI YBSS10-65 is a 10-element stainless steel Yagi antenna designed for high-gain directional communication across the 400–420 MHz frequency range. Built from all-welded 316-grade stainless steel, this antenna is engineered for extreme and corrosive environments, offering long-term durability and reliable RF performance.

Product Features:

  • The RFI YBSS10-65 antenna is constructed from 316-grade stainless steel, providing exceptional resistance to corrosion and harsh environmental conditions.
  • It operates across the 400–420 MHz frequency range, making it suitable for a variety of RF control and communication applications.
  • It delivers 13 dBi gain with a narrow beamwidth and high front-to-back ratio, effectively minimizing interference.
  • The full folded dipole feed element ensures maximum bandwidth and consistent performance.
  • Passive elements are through-mounted and welded on both sides to reduce the risk of corrosion and passive intermodulation (PIM).
  • The alodined finish provides a conductive surface for effective grounding and long-term reliability.
  • The antenna includes DC grounding on all elements for lightning protection and static noise dissipation.
  • It can be configured in stacks or bays using PH and PHE series phasing harnesses for higher gain applications.
  • The all-welded construction ensures structural integrity and dependable operation in demanding environments.

Application Areas:

  • The antenna is ideal for RF control and telemetry systems in corrosive or extreme environments.
  • It is suitable for directional communication in both short and long-haul point-to-point links.
  • It is a reliable choice for installations requiring high gain and minimal interference.
  • The design supports both horizontal and vertical polarization configurations.

In the Box:

  • 1x RFI YBSS10-65 10 Element Stainless Steel Yagi Antenna

Documents:

RFI YBSS10-65 Yagi Antenna - Datasheet Phasing of RFI Yagi Antenna - Technical Guide

Product Specifications

MPN YBSS10-65
Antenna application Base Station Antenna
Antenna features Directional
Antenna port connectors N (F)
Antenna type Directional Yagis
Brands RFI
Construction Welded 316 stainless steel
Coverage type Directional
Frequency band UHF 380-520 MHz
Frequency mhz 400-420
Front back ratio db 18
Height 3
Horizontal beamwidth 39?
Installation type External mounting
Length 99
Low pim No
Max frequency mhz 420
Max gain dbd dbi 13
Mimo support No
Min frequency mhz 400
Min gain dbd dbi 13
Mount supported Clamp mount
Mount supported detailed UNV + M-4528
Mounting area 100mm x 25mm diam.
No of antenna ports 1
Nominal gain dbi 13
Power w 100
Technologies supported UHF
Termination N female
Torque 160km h nm 83
Torque nm 83
Tuned bandwidth Full
Vertical beamwidth 36?
Vswr <1.5:1 (14dB)
Width 3
Wind gust km h 240
Wind load 160km h n 240
Wind thrust 103
