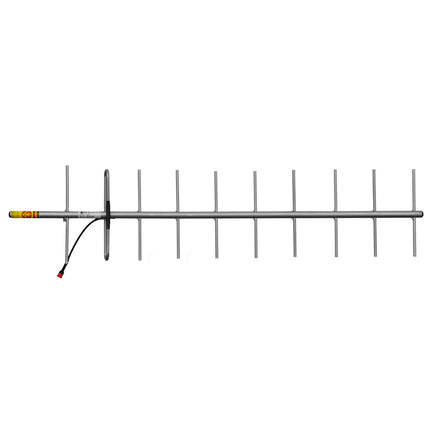

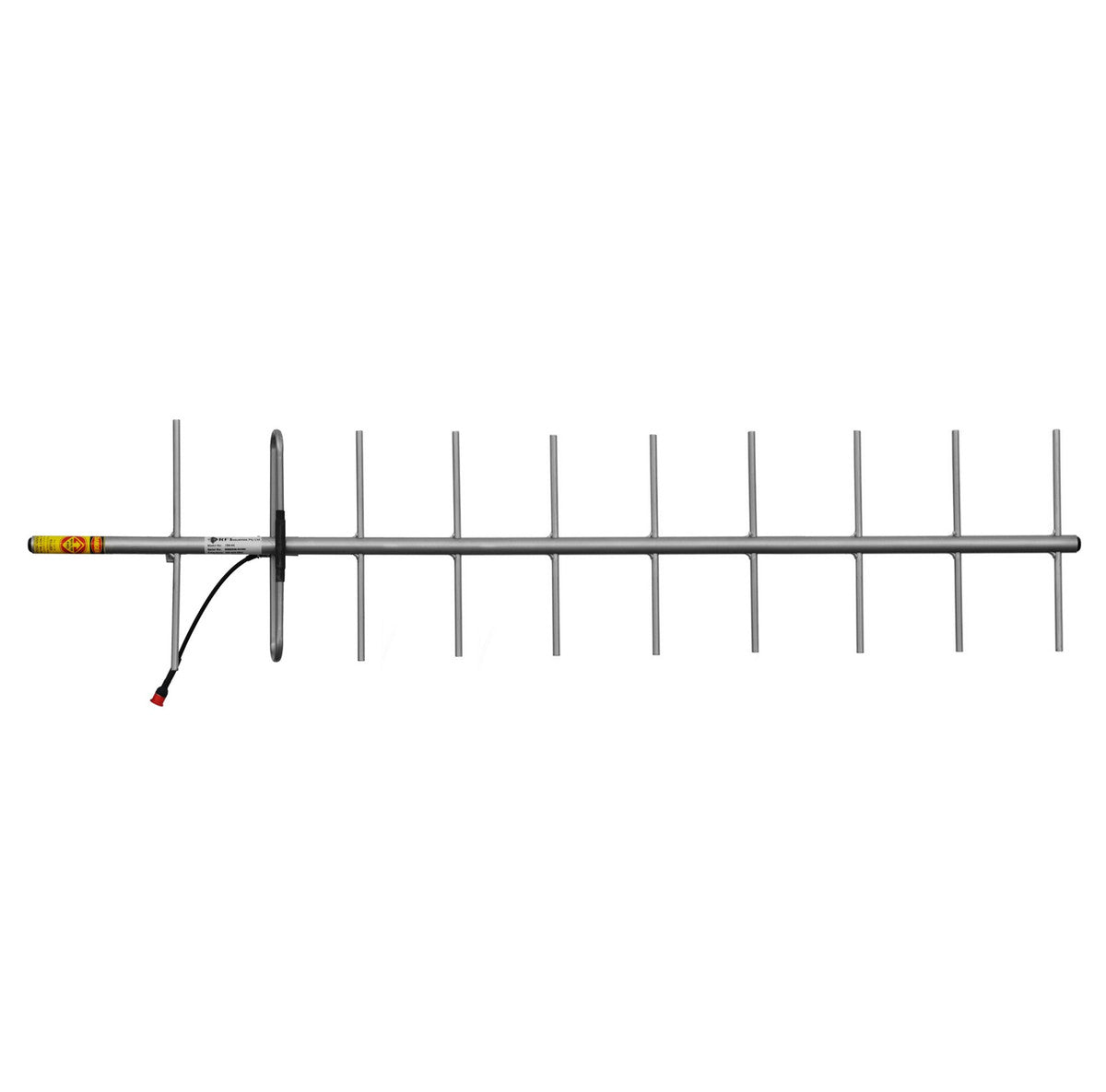

The RFI YBSS10-70 is a 10-element stainless steel Yagi antenna designed for directional communication across the 450–470 MHz frequency range. With a full folded dipole and rugged all-welded stainless steel construction, this antenna offers high gain, low intermodulation, and long-term reliability in corrosive and extreme environments.

Product Features:

• The RFI YBSS10-70 antenna is made from 316-grade stainless steel, ensuring durability and corrosion resistance in harsh conditions.
• It operates across the 450–470 MHz frequency range, supporting a wide range of RF communication needs.
• It delivers 13 dBi gain with a narrow beamwidth and high front-to-back ratio, enhancing signal clarity and reducing interference.
• The full folded dipole feed element provides maximum bandwidth and reliable performance.
• Passive elements are through-mounted and welded on both sides to minimize corrosion and passive intermodulation (PIM).
• The alodined finish enhances conductivity for effective grounding and corrosion protection.
• DC grounding on all elements ensures superior lightning protection and static noise dissipation.
• The antenna can be configured in stacks or bays using PH and PHE series phasing harnesses for increased gain.
• The all-welded construction ensures consistent performance in demanding outdoor environments.

Application Areas:

• The antenna is ideal for RF control and telemetry systems operating in corrosive or extreme environments.
• It is suitable for directional communication in both short and long-haul point-to-point links.
• It is a dependable solution for installations requiring high gain and minimal interference.
• The design supports both horizontal and vertical polarization configurations.

In the Box:

• 1x RFI YBSS10-70 10 Element Stainless Steel Yagi Antenna
