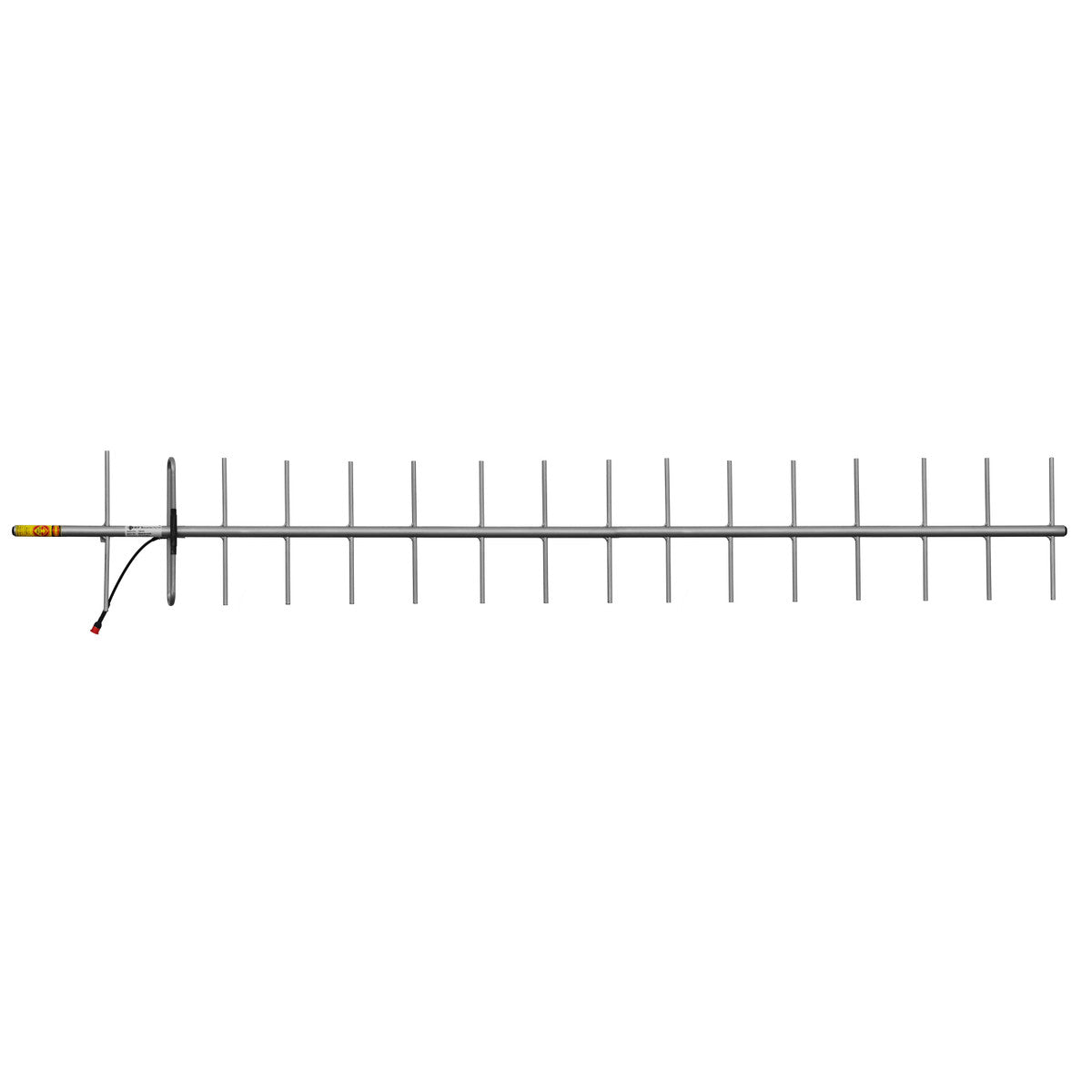

The RFI YBSS16-65 is a 16-element stainless steel Yagi antenna designed for high-gain directional communication in the 400–420 MHz frequency range. With a gain of 14 dBi and a rugged marine-grade construction, it is ideal for point-to-point communication in highly corrosive environments where durability and performance are essential.

Features:

• This RFI YBSS16-65 antenna features narrow beamwidths and high front-to-back ratios to minimize interference from other systems.
• The construction uses 316 marine grade stainless steel for excellent resistance to corrosion in harsh environments.
• The passive elements are through-mounted and welded on both sides of the boom for structural integrity.
• The feed element is a full folded dipole, welded to the boom for low intermodulation and long-term reliability.
• The antenna includes a short Durathene cable tail with an N female connector for superior weather and abrasion resistance.
• The antenna supports stacking or baying using PH and PHE series phasing harnesses for higher gain configurations.
• It includes DC grounding on all elements for lightning protection and static noise dissipation.
• The all-welded design ensures maximum performance and long-term reliability.

Application Areas:

• The antenna is ideal for point-to-point communication in marine or corrosive environments.
• This antenna is suitable for RF systems requiring high directionality and reduced interference.
• It is designed for use in industrial and outdoor settings where durability is essential.

In the Box:

• 1x RFI YBSS16-65 16 Element SS Yagi Antenna

Documents:

RFI YBSS16-65 Yagi Antenna - Datasheet Phasing of RFI Yagi Antenna - Technical Guide
