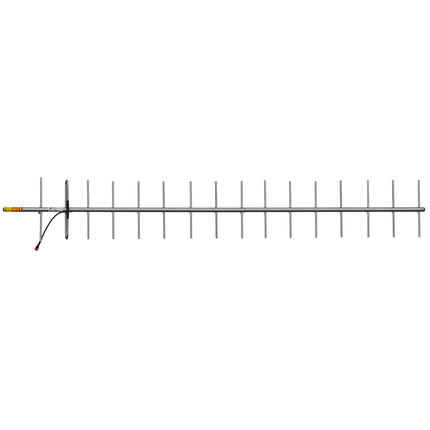

The RFI YBSS16-71 is a 16-element stainless steel Yagi antenna built for high-gain directional communication in the 470-490 MHz frequency range. Designed for use in corrosive environments, it combines rugged construction with reliable performance.

Features:

• This RFI YBSS16-71 antenna features narrow beamwidths and high front-to-back ratios to minimize interference.
• The construction uses 316 marine grade stainless steel for excellent corrosion resistance.
• The passive elements are through-mounted and welded on both sides for added strength.
• The feed element is a full folded dipole, welded to the boom for low intermodulation and durability.
• The antenna includes a short Durathene cable tail with an N female connector for superior weather resistance.
• It supports stacking or baying using PH and PHE series phasing harnesses for higher gain configurations.
• The antenna includes DC grounding on all elements for lightning protection and static noise dissipation.
• The all-welded design ensures consistent performance and long-term reliability.

Application Areas:

• The antenna is ideal for directional RF communication in marine or corrosive environments.
• This antenna is suitable for systems requiring high gain and minimal interference.
• It is designed for use in outdoor and industrial applications where durability is critical.

In the Box:

• 1x RFI YBSS16-71 16 Element SS Yagi Antenna

Documents:

RFI YBSS16-71 Yagi Antenna - Datasheet Phasing of RFI Yagi Antenna - Technical Guide
