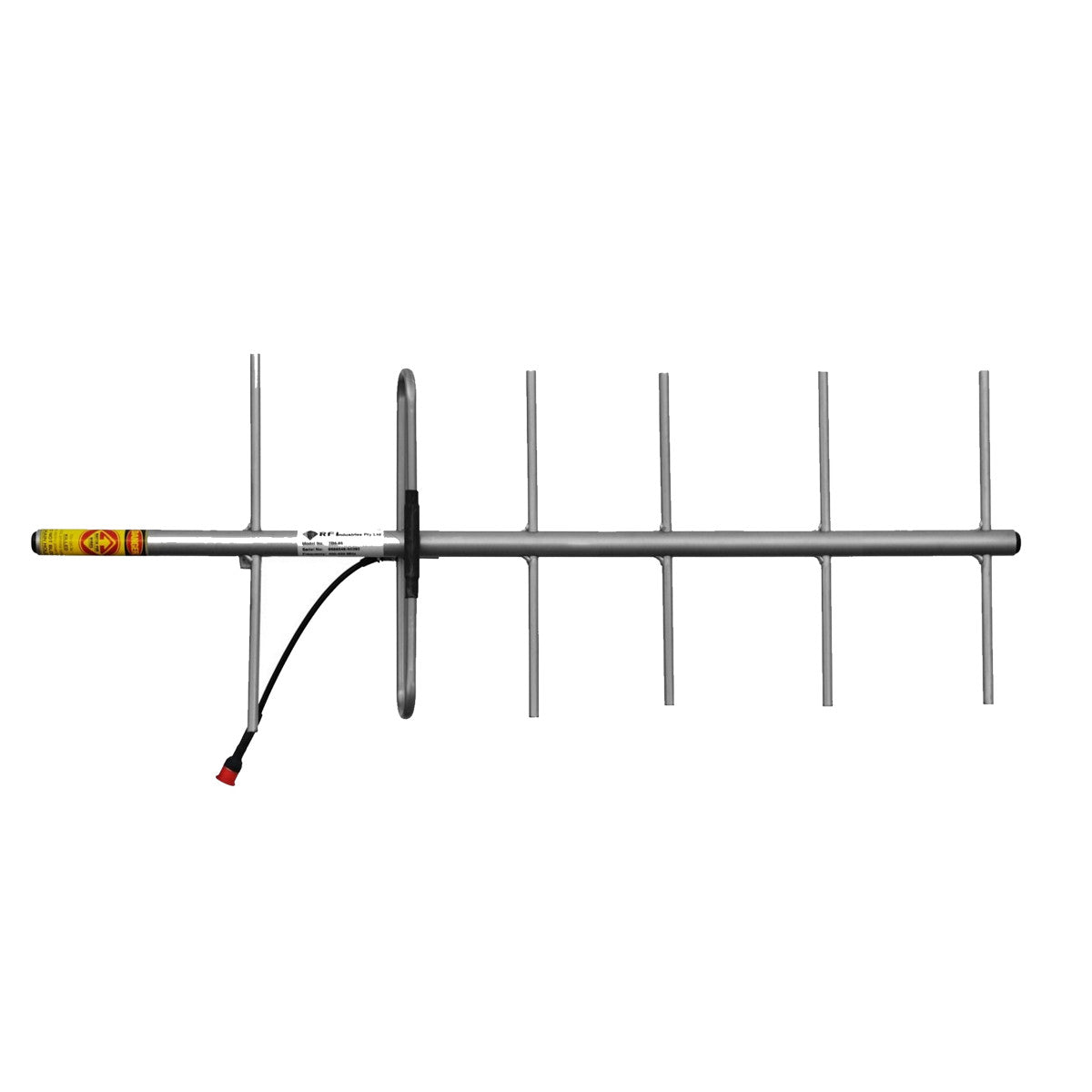

RFI YBSS6-61 6 Element Yagi Antenna, 450-480 MHz, 11 dBi

RFI YBSS6-61 6 Element Yagi Antenna, 450-480 MHz, 11 dBi

Available

Brand:
Item ID:
167016289
Export:
Restricted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
YBSS6-61
Send Request for Quote (RFQ) Discount Offers
The RFI YBSS6-61 is a 6-element stainless steel Yagi antenna designed for 11 dBi high-gain directional communication in the 450–480 MHz frequency range.
Regular price $427.00
Regular price $0.00 Sale price $427.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI YBSS6-61 is a 6-element stainless steel Yagi antenna designed for high-gain directional communication in the 450–480 MHz frequency range. With a gain of 11 dBi and a rugged marine-grade construction, it is ideal for point-to-point communication in highly corrosive environments.

Features:

  • This RFI YBSS6-61 antenna features narrow beamwidths and high front-to-back ratios to minimize interference from other systems.
  • The construction uses 316 marine grade stainless steel for excellent corrosion resistance in harsh environments.
  • The passive elements are through-mounted and welded on both sides of the boom for structural integrity.
  • The feed element is a full folded dipole, welded to the boom for low intermodulation and long-term reliability.
  • The antenna includes a short Durathene cable tail with an N female connector for superior weather and abrasion resistance.
  • The antenna supports stacking or baying using PH and PHE series phasing harnesses for higher gain configurations.
  • It includes DC grounding on all elements for lightning protection and static noise dissipation.
  • The all-welded design ensures maximum performance and long-term reliability.

Application Areas:

  • The antenna is ideal for point-to-point communication in marine or corrosive environments.
  • This antenna is suitable for RF systems requiring high directionality and reduced interference.
  • It is designed for use in industrial and outdoor settings where durability is essential.

In the Box:

  • 1x RFI YBSS6-61 6 Element SS Yagi Antenna

Documents:

RFI YBSS6-61 Yagi Antenna - Datasheet Phasing of RFI Yagi Antenna - Technical Guide

Product Specifications

MPN YBSS6-61
Antenna application Base Station Antenna
Antenna cable type 9008
Antenna features Directional
Antenna port connectors N (F)
Antenna type Directional Yagis
Brands RFI
Cable length m 0.1
Construction All welded stainless steel construction with polished finish
Coverage type Directional
Frequency band UHF 380-520 MHz
Frequency mhz 450-480
Front back ratio db >18 (Typical
Height 3
Horizontal beamwidth 56?
Installation type External mounting
Length 99
Low pim No
Max frequency mhz 480
Max gain dbd dbi 11
Mimo support No
Min frequency mhz 450
Min gain dbd dbi 11
Mount supported Clamp mount
Mount supported detailed UNV
Mounting area 100mm x 25mm diam. Stainless Steel
No of antenna ports 1
Power w 100
Technologies supported UHF
Termination N female with short 9008 cable tail
Torque nm 24
Tuned bandwidth Full band
Vertical beamwidth 47?
Vswr <1.5:1
Width 3
Wind gust km h >240
Wind thrust 56
