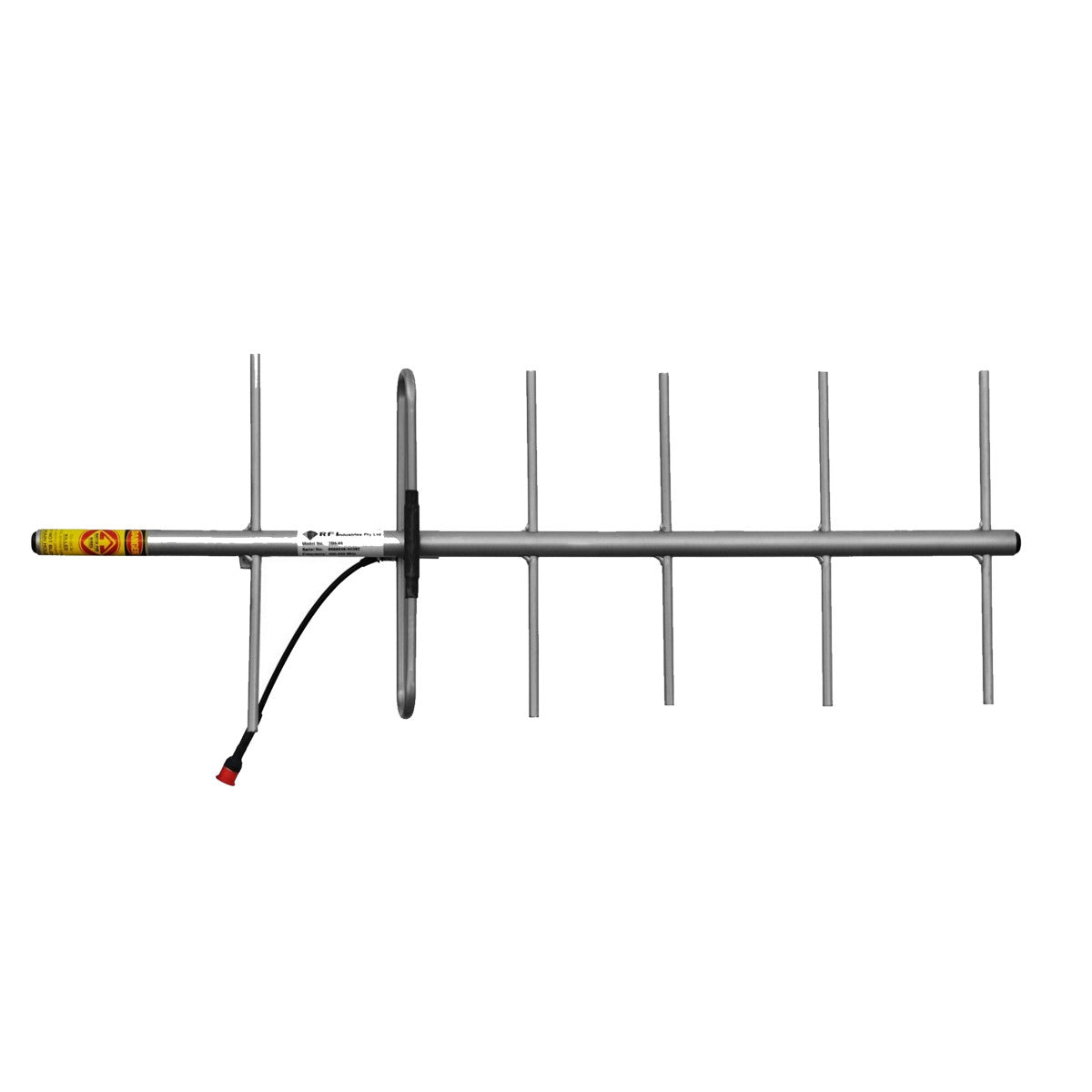

RFI YBSS6-62 6 Element Yagi Antenna, 480-520 MHz, 11 dBi

RFI YBSS6-62 6 Element Yagi Antenna, 480-520 MHz, 11 dBi

On backorder

Brand:
Item ID:
168016291
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
YBSS6-62
Send Request for Quote (RFQ) Discount Offers
The RFI YBSS6-62 is a 6-element stainless steel Yagi antenna designed for directional communication across the 480–520 MHz with a gain of 11 dBi
Regular price $427.00
Regular price $0.00 Sale price $427.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI YBSS6-62 is a 6-element stainless steel Yagi antenna designed for directional communication across the 480–520 MHz frequency range. With a gain of 11 dBi and marine-grade construction, it is built to perform reliably in corrosive and challenging environments.

Features:

  • This RFI YBSS6-62 antenna offers narrow beamwidths and high front-to-back ratios to reduce interference.
  • The boom and elements are made from 316 marine grade stainless steel for corrosion resistance.
  • The passive elements are through-mounted and welded on both sides for mechanical strength.
  • The feed element is a full folded dipole, welded to the boom for enhanced durability and low intermodulation.
  • The antenna includes a short Durathene cable tail with an N female connector for weather and abrasion resistance.
  • It supports stacking or baying with PH and PHE series phasing harnesses for higher gain applications.
  • The antenna includes DC grounding on all elements for lightning protection and static dissipation.
  • The all-welded construction ensures long-term performance and reliability.

Application Areas:

  • The antenna is ideal for directional RF communication in corrosive or marine environments.
  • This antenna is suitable for systems requiring high gain and reduced interference.
  • It is designed for industrial and outdoor use where robust construction is necessary.

In the Box:

  • 1x RFI YBSS6-62 6 Element SS Yagi Antenna

Documents:

RFI YBSS6-62 Yagi Antenna - Datasheet Phasing of RFI Yagi Antenna - Technical Guide

Product Specifications

MPN YBSS6-62
Antenna application Base Station Antenna
Antenna cable type 9008
Antenna features Directional
Antenna port connectors N (F)
Antenna type Directional Yagis
Brands RFI
Cable length m 0.1
Construction All welded stainless steel construction with polished finish
Coverage type Directional
Frequency band UHF 380-520 MHz
Frequency mhz 480-520
Front back ratio db >18 (Typical
Height 10
Horizontal beamwidth 56?
Installation type External mounting
Length 86
Low pim No
Max frequency mhz 520
Max gain dbd dbi 11
Mimo support No
Min frequency mhz 480
Min gain dbd dbi 11
Mount supported Clamp mount
Mount supported detailed UNV
Mounting area 100mm x 25mm diam. Stainless Steel
No of antenna ports 1
Power w 100
Technologies supported UHF
Termination N female with short 9008 cable tail
Torque nm 16
Tuned bandwidth Full band
Vertical beamwidth 47?
Vswr <1.5:1
Width 36
Wind gust km h >240
Wind thrust 47
