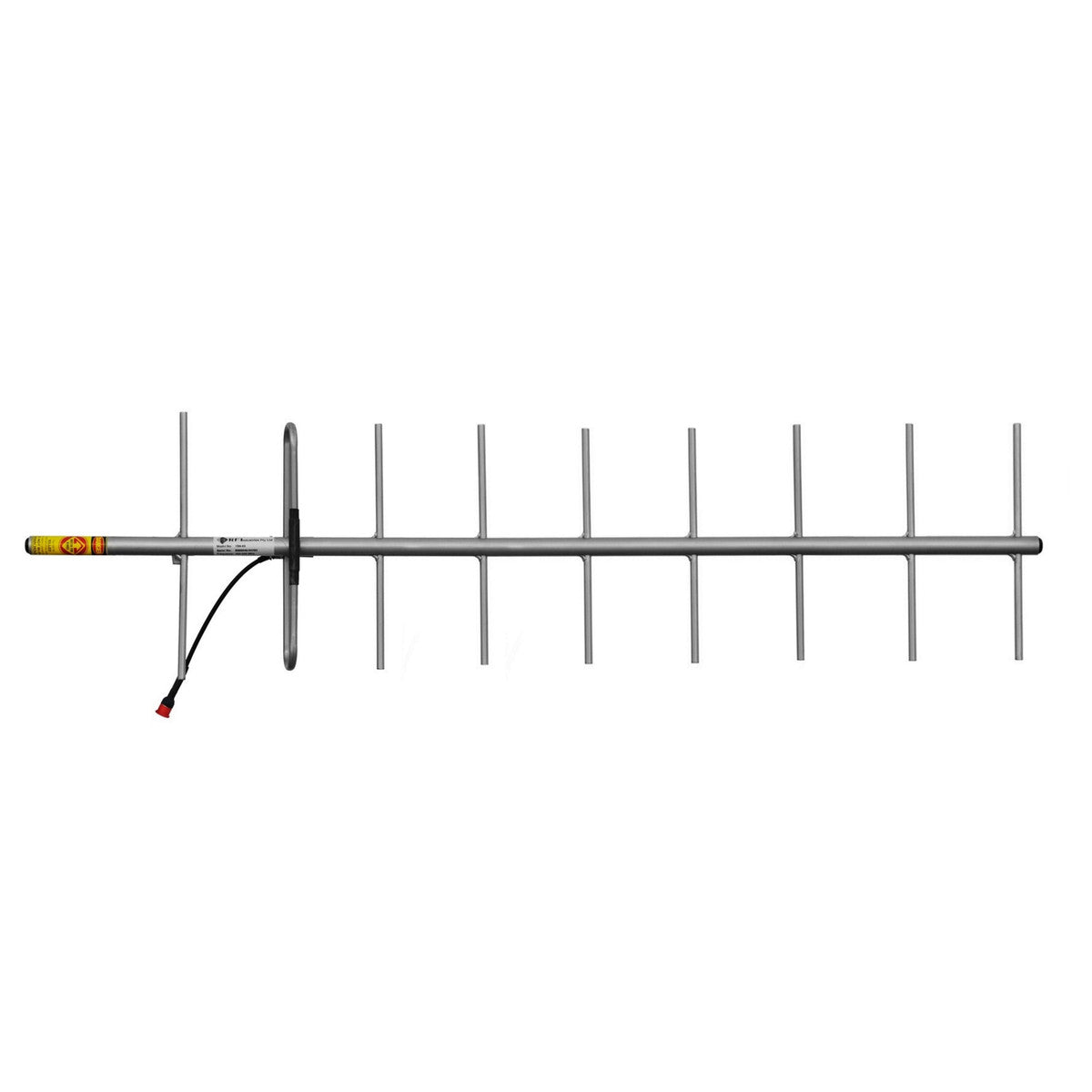

The RFI YBSS9-62 is a 9-element stainless steel Yagi antenna designed for directional communication across the 480-520 MHz frequency range. With a 13 dBi gain and marine-grade construction, it is built to perform reliably in corrosive and challenging environments.

Features:

• This RFI YBSS9-62 antenna offers narrow beamwidths and high front-to-back ratios to reduce interference.
• The boom and elements are made from 316 marine grade stainless steel for corrosion resistance.
• The passive elements are through-mounted and welded on both sides for mechanical strength.
• The feed element is a full folded dipole, welded to the boom for enhanced durability and low intermodulation.
• The antenna includes a short Durathene cable tail with an N female connector for weather and abrasion resistance.
• It supports stacking or baying with PH and PHE series phasing harnesses for higher gain applications.
• The antenna includes DC grounding on all elements for lightning protection and static dissipation.
• The all-welded construction ensures long-term performance and reliability.

Application Areas:

• The antenna is ideal for directional RF communication in corrosive or marine environments.
• This antenna is suitable for systems requiring high gain and reduced interference.
• It is designed for industrial and outdoor use where robust construction is necessary.

In the Box:

• 1x RFI YBSS9-62 9 Element SS Yagi Antenna

Documents:

RFI YBSS9-62 Yagi Antenna - Datasheet Phasing of RFI Yagi Antenna - Technical Guide
