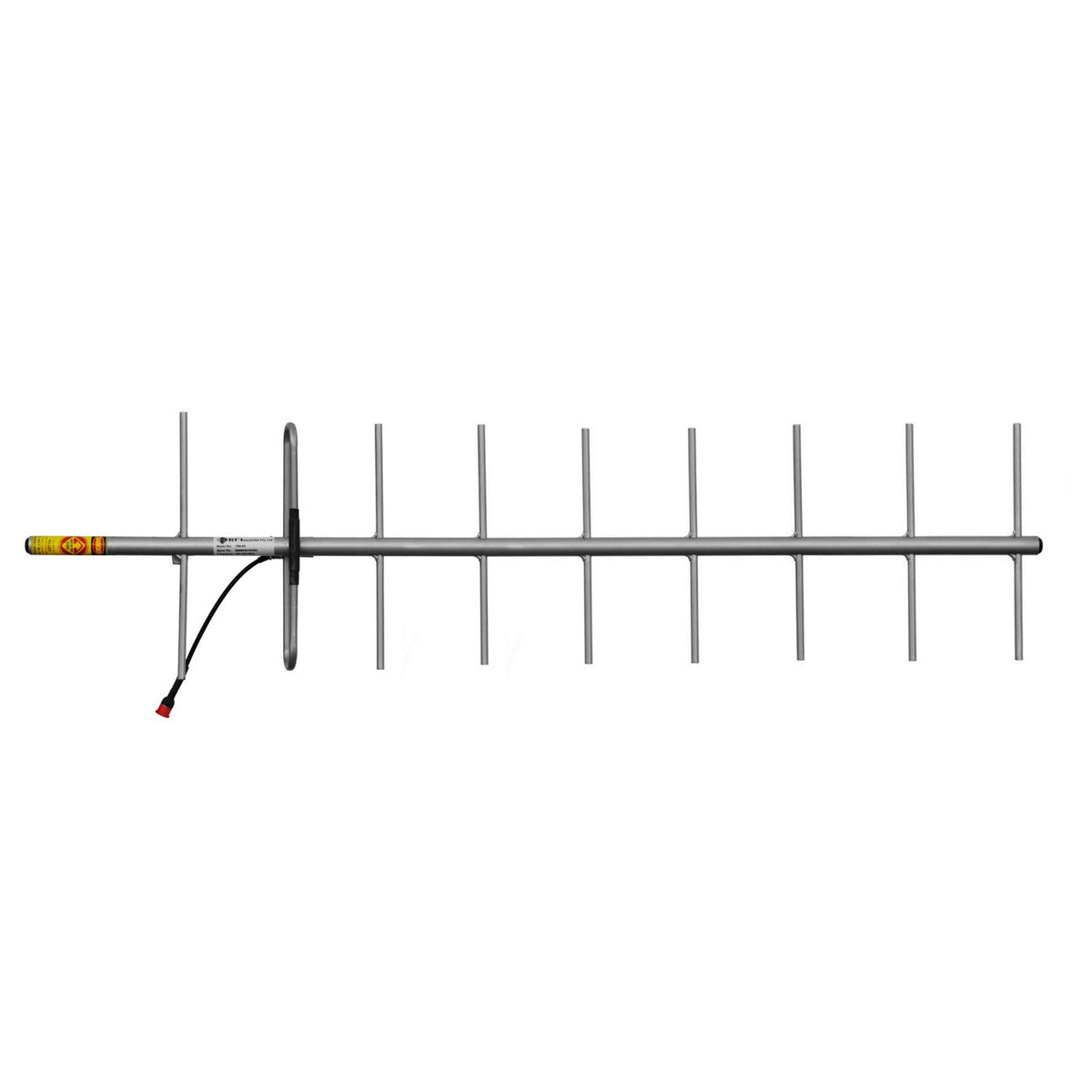

The RFI YBSS9-99 is a custom-tuned 9-element stainless steel Yagi antenna designed for broadband directional communication across the 350-600 MHz frequency range. With a gain of 13 dBi and marine-grade construction, it is ideal for use in corrosive environments requiring reliable and interference-resistant performance.

Features:

• This RFI YBSS9-99 antenna provides 13 dBi gain for strong directional signal coverage.
• The narrow beamwidth and high front-to-back ratio help reduce interference from other systems.
• The boom and elements are constructed from 316 marine grade stainless steel for corrosion resistance.
• The passive elements are through-mounted and welded on both sides for structural integrity.
• The feed element is a full folded dipole, welded to the boom for low intermodulation and long-term reliability.
• The antenna includes a short Durathene cable tail with an N female connector for weather and abrasion resistance.
• It supports stacking or baying using PH and PHE series phasing harnesses for higher gain configurations.
• The antenna includes DC grounding on all elements for lightning protection and static noise dissipation.

Application Areas:

• The antenna is ideal for broadband directional communication in corrosive or marine environments.
• This antenna is suitable for RF systems requiring custom frequency tuning and high gain.
• It is designed for use in outdoor and industrial applications where durability and performance are essential.

In the Box:

• 1x RFI YBSS9-99 9 Element SS Yagi Antenna (custom tuned)

Documents:

RFI YBSS9-99 Yagi Antenna - Datasheet Phasing of RFI Yagi Antenna - Technical Guide
