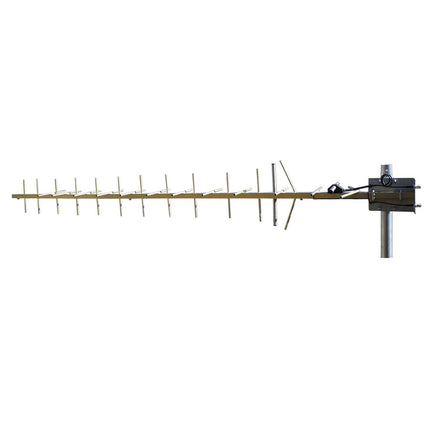

The RFI YCP4047 13 Element Yagi is a high-gain cross-polarized antenna optimized for MIMO performance across the 400-470 MHz frequency range. Designed for directional RF communication, this antenna offers superior polarization isolation, low VSWR, and a modular design for efficient transport and installation.

Product Features:

• The RFI YCP4047 antenna is designed for MIMO applications, featuring dual polarization with outstanding isolation.
• It operates across the 400-470 MHz frequency range, supporting wideband RF communication.
• It delivers 13.2 dBi gain with excellent front-to-back ratio and minimal pattern distortion.
• The antenna is split into two field-assembled sections, reducing shipping volume and simplifying handling.
• The dipole element design allows for quick and accurate assembly.
• Vertical and horizontal elements are mounted perpendicularly to maximize polarization separation.
• The alodined finish ensures long-term reliability and corrosion resistance.
• It includes 2x N-Female connectors for separate polarization feeds.
• Stainless steel mounting clamps are included for secure installation in various environments.

Application Areas:

• The antenna is ideal for high-performance MIMO RF control and telemetry systems.
• It is suitable for long-range point-to-point communication links requiring high gain and isolation.
• It is a dependable choice for installations where wideband coverage and compact shipping are essential.
• The design supports both horizontal and vertical polarization configurations for enhanced signal diversity.

In the Box:

• 1x RFI YCP4047 13 Element Cross-Polarized Yagi Antenna
• Stainless steel mounting clamps

Documents:

RFI YCP4047-13 Yagi Antenna - Datasheet RFI YCP4047-13 Yagi Antenna - Installation Guide
