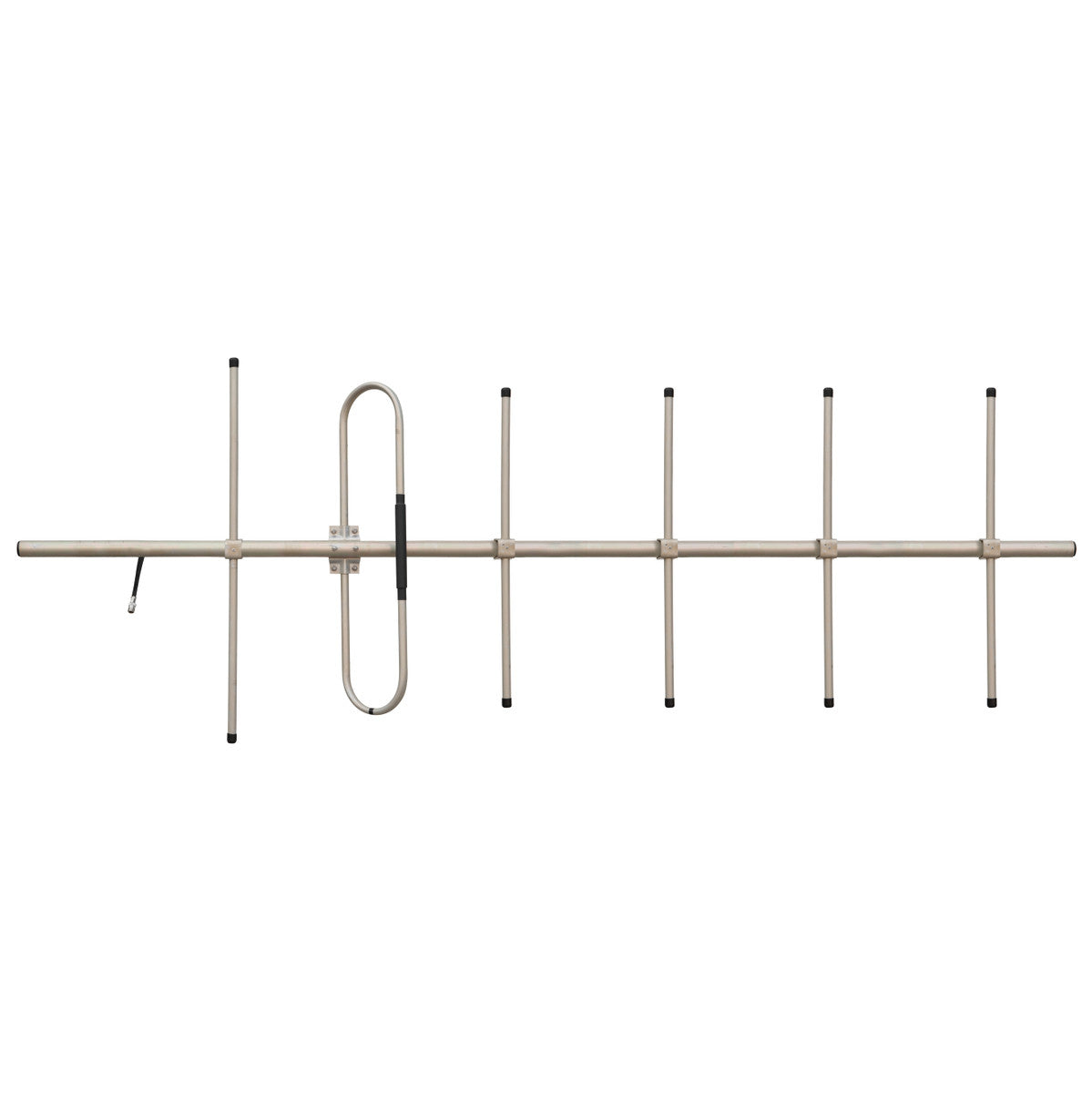

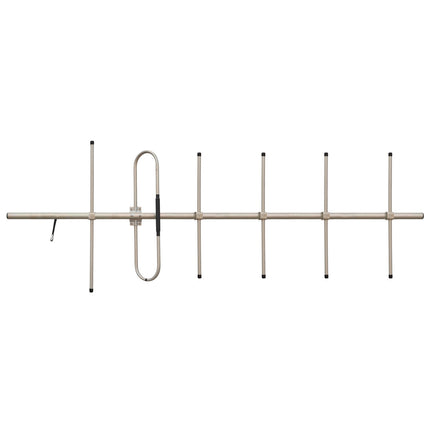

The RFI YH06 is a 6-element Yagi antenna designed for high-gain directional communication across the 100–250 MHz frequency range. With 11 dBi gain, it is ideal for long-range applications requiring focused signal transmission and robust construction.

Features:

• The RFI YH06 antenna delivers 11 dBi gain, making it suitable for long-range directional communication.
• This antenna maintains consistent beamwidths and a high front-to-back ratio for signal clarity.
• The boom and elements are constructed from thick-walled alodined aluminium tubing for strength and corrosion resistance.
• The passive elements are clamped with a single bolt wrap-around bracket for secure installation.
• The radiating element is through-mounted for added mechanical integrity.
• All fittings are marine-grade stainless steel with self-locking nuts to prevent loosening.
• The antenna is shipped unassembled for ease of handling and transport.
• It is easy to assemble with basic tools.
• The colour-coded components simplify the installation process.
• The antenna includes DC grounding on all elements for protection against lightning and static buildup.

Application Areas:

• The antenna is ideal for long-haul RF communication requiring high gain and directionality.
• This antenna is suitable for systems needing precise radiation pattern control.
• It is designed for use in outdoor and industrial environments with demanding conditions.

In the Box:

• 1x RFI YH06 6 Element Yagi Antenna (custom tuned)

Documents:

RFI YH06 Yagi Antenna - Datasheet RFI YH06 Yagi Antenna - Installation Guide Phasing of RFI Yagi Antenna - Technical Guide
