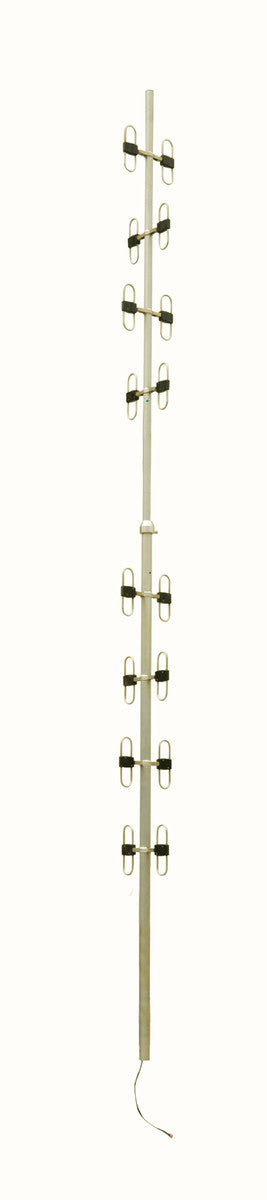

RFI BA8080-67-P UHF Binary Dipole Dual Array, 400-520 MHz, 6 dBd

RFI BA8080-67-P UHF Binary Dipole Dual Array, 400-520 MHz, 6 dBd

On backorder

Brand:
Item ID:
167015419
Export:
Restricted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
BA8080-67-P
Discount Offers
UHF Binary Dipole Dual Array 400-520 MHz - 2 X 6 dBd are ideal for highly populated radio sites requiring long haul omnidirectional coverage.
Price on application
Open Request for Quote (RFQ) Form View full details

Product Description

The BA8080-67 arrays utilise an internal phasing harness using PIM rated PTFE based coaxial cable as well as custom dipole design to improve weatherproofing and resist bird attack. The use of a unique phasing arrangement provides extensive side lobe suppression and null fill characteristics. The arrays will accept an input power level of 500 watts continuous, making them ideal for high power multiple transmitter applications. The BA8080 series are offered in 0°, 3° or 5° downtilt variants, to further enhance close-in coverage characteristics. All welded alodined aluminium construction and fabrication techniques in both the harness and dipole sections have proven to minimise intermodulation and noise generated within the antennas. The entire array rests at ground potential and offers the ultimate in lightning resistant antennas.

Features:

  • Ideal for highly populated sites requiring long haul omnidirectional coverage
  • Operate over entire 400-520 MHz bands
  • 9 dBd gain version available with optional PA82-67 External harness
  • Inverted mounting version available
  • Versions with 0°, 3° or 5° of downtilt available*
  • Extensive side lobe suppression
  • Industry leading PIM ratings (-150 dBc) providing low IM and low noise characteristics for optimum performance

Documents:

RFI BA8080-67-P Binary Array - Datasheet RFI Dipole Array - Installation Guide

Product Specifications

MPN BA8080-67-P
Antenna application Base Station Antenna
Antenna cable type RG142
Antenna features Omnidirectional, Multi Band Capable, PIM Rated, High Power Multi Channel
Antenna port connectors 4.3-10 (F)
Antenna type Exposed Dipole Array
Brands RFI
Cable length m 0.5
Construction All welded aluminium with alodined finish
Coverage type Directional
Downtilt 0? Std, -3?, -5?
Frequency band UHF 380-520 MHz
Frequency mhz 400-520
Height 3
Horizontal beamwidth Omni +/- 0.5dB
Installation type External mounting
Length 99
Low pim Yes
Max frequency mhz 520
Max gain dbd dbi 2
Mimo support No
Min frequency mhz 400
Min gain dbd dbi 2
Mount supported Clamp mount
Mount supported detailed UC1
Mounting area 500mm x 63mm diam. aluminium
No of antenna ports 2
Pim 3rd 2x20 w dbc <-150
Polarisation Vertical
Power w 500
Technologies supported UHF
Termination 4.3-10 female with 0.5m RG142 cable tail.
Torque nm 1802
Tuned bandwidth Full band
Vertical beamwidth 16?
Vswr <1.5:1
Width 3
Wind gust km h 200
Wind thrust 767
