UHF Collinear 380-530 MHz Custom Tuned - 6 dBd

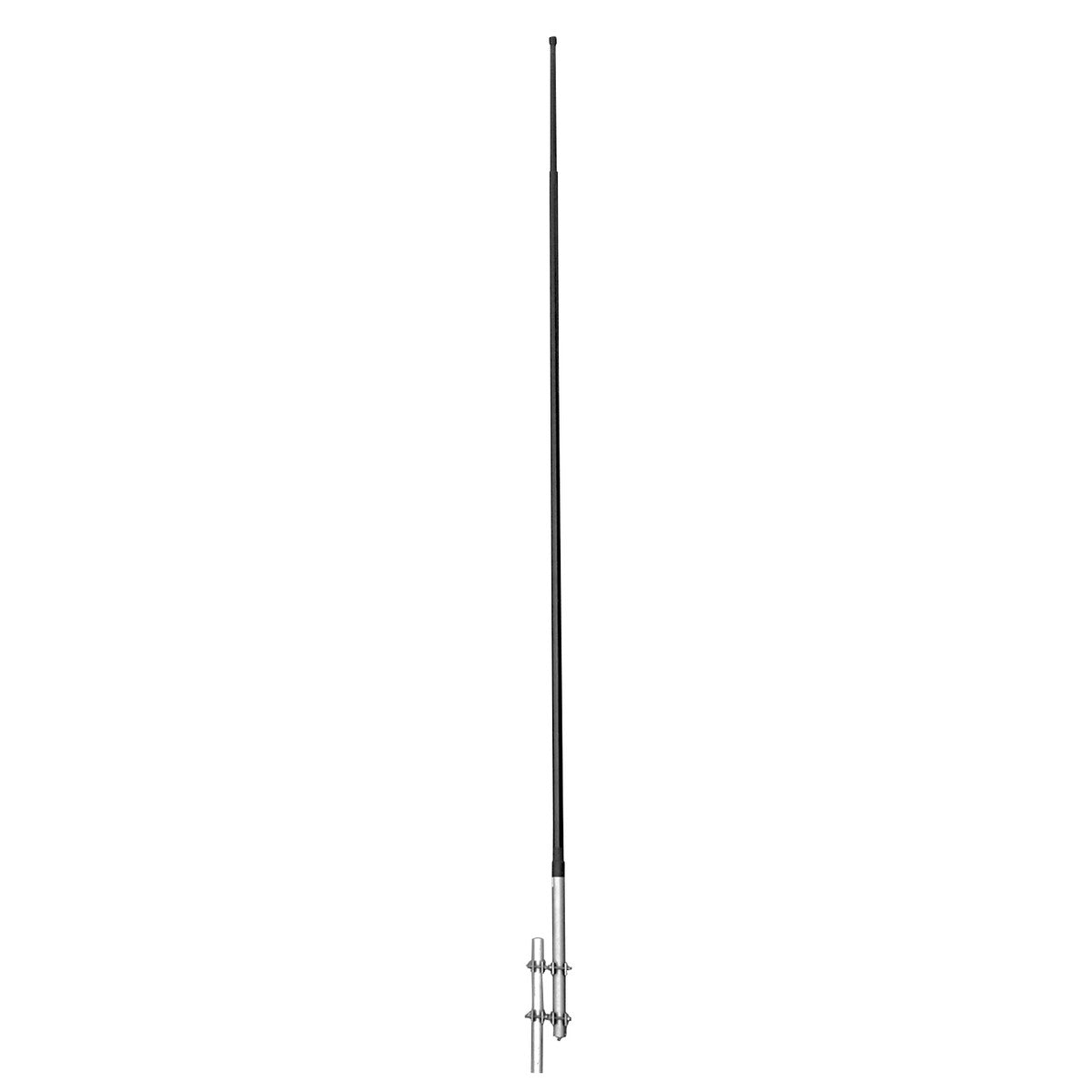

The COL12 is electrically identical to the COL8 however it’s ruggedised design makes it ideal for use in the most extreme climatic conditions. The radome which houses the active elements of the COL12 was originally designed to serve as the mast of recreational sail boards and is immensely strong. The radome is coloured black to maximise solar heat retention and this has been shown to aid significantly in ice shedding. A large, 60 mm dia.x 500 mm aluminium mounting tube supports the radome.

Features:

• 6 dBd gain omnidirectional pattern.
• Range of models to cater for varying environments.
• The radiating elements are constructed of alodined aluminium with all internal metal junctions welded to prevent the generation of intermodulation products and spurious emissions

Documents:

RFI COL12 Antenna - Datasheet
