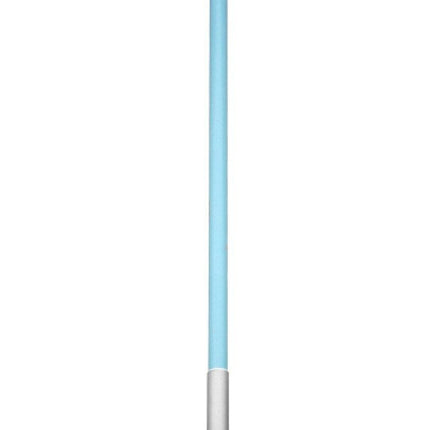

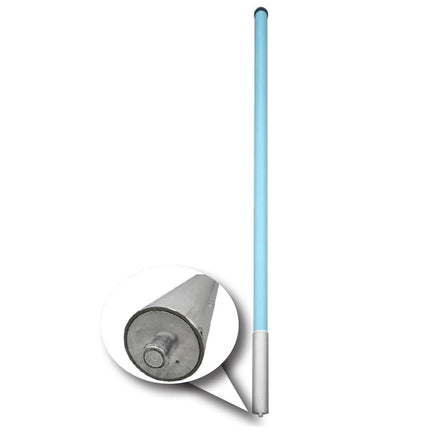

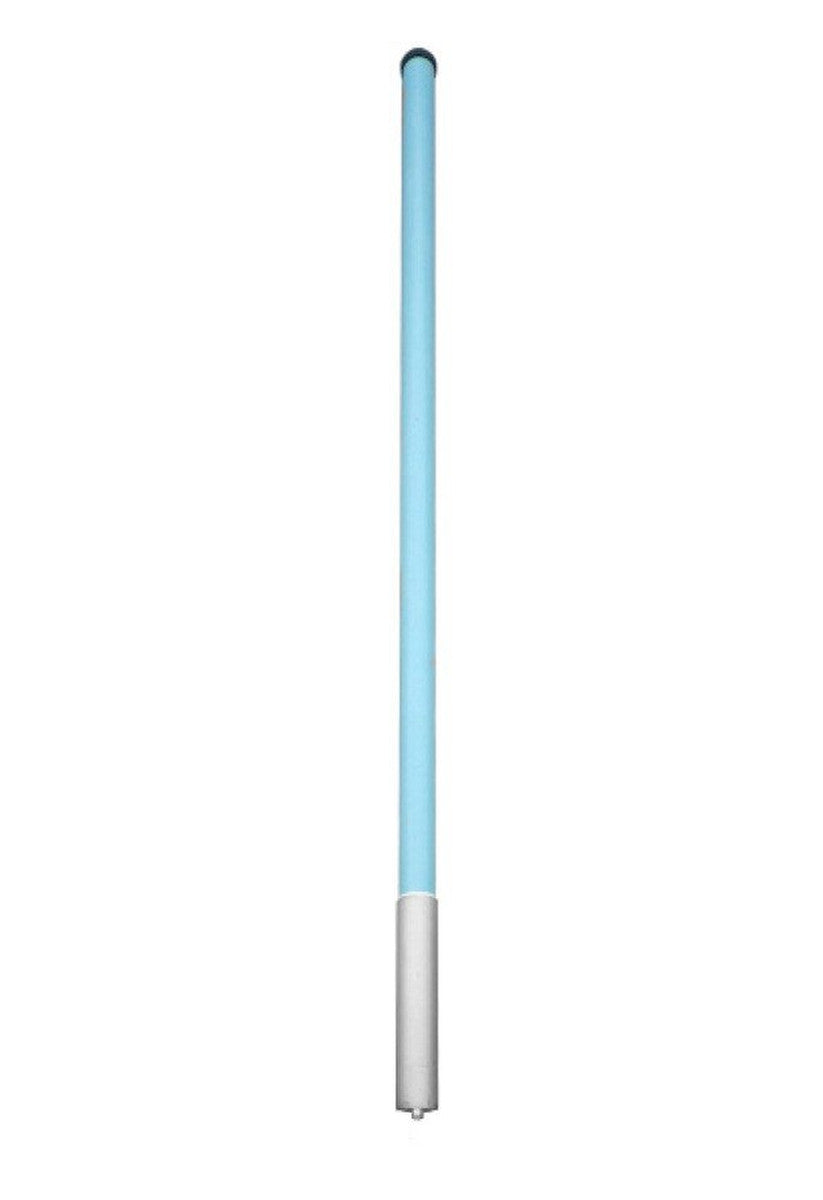

The corporate feed design employed by RFI maintains superior pattern control, allowing gain to be maximised with zero tilt variation over a very broad bandwidth, comparable to that only previously available in exposed dipole array configurations. This is achieved in the preferred form factor of a fully enclosed fibreglass radome, providing a reduction in wind loading, ice loading and tower loading in comparison. The CC450 series have been designed with an exceptional power rating of 500W across the band as well as a Peak Instantaneous Power (PIP) rating of 25 kW to cater for the peak voltage levels present in large multi-carrier combining environments. RFI's refined design processes and proven construction methods achieve a PIM rating of -150 dBc, further ensuring performance is maintained for the service life of the antenna.

Features:

• Extraordinary bandwidth characteristics with superior pattern stability over an extended band coverage
• Light weight dipole construction using RFI's patented flexi-PCB architecture, maintains a low centre of gravity reducing tip deflection and sway
• DC grounding on all elements for the ultimate in lightning protection and dissipation of static noise
• Sealed PTFE insulated cables in harnessing ensure high power capability
• -150 dBc Passive Intermodulation (PIM) rating
• 25 kW Peak Instataneous Power (PIP) rating
• Field invertible

Documents:

RFI CC450 Antenna - Datasheet RFI CC Series Antenna - Installation Guide
