RFI EA4040-67-P UHF Elliptical Dipole Array, 400-520 MHz, 2x5 dBd

    RFI EA4040-67-P UHF Elliptical Dipole Array, 400-520 MHz, 2x5 dBd

      Product form
      Brand:
      RFI
      Item ID:
      167015894
      MPN:
      EA4040-67-P
      Export:
      Restricted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      UHF Elliptical Dipole Array 400-520 MHz - 2x5 DBd provide expanded bandwidth, high power ratings and unequalled performance in gain.

      $4,613.25 incl. GST

      Product Description

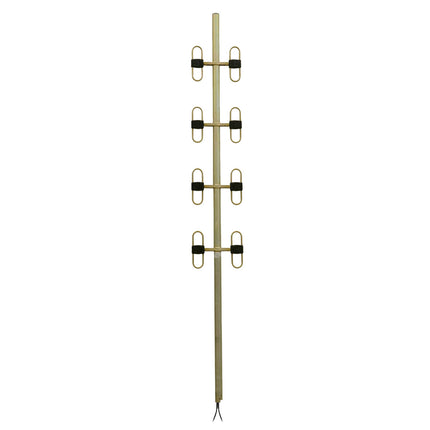

      UHF Elliptical Dipole Array 400-520 MHz - 2x5 dBd

      A combination of two arrays mounted upon a single 48 mm dia boom. These arrays are common where medium gain UHF bi-directional coverage is required via separate transmit and receive antennas conveniently located on a single boom. The feeding of each of the antennas is via separate coaxial cable tails at the base of the array.

      Features:

      • Ideal for highly populated sites requiring long haul bi-directional coverage
      • Operate over entire 330-420 or 400-520 MHz bands
      • Available in stainless Steel variants also
      • Industry leading PIM ratings (-150 dBc) providing low IM and low noise characteristics for optimum performance.

      Documents:

      RFI EA4040-67-P Dipole Array - Datasheet RFI Dipole Array - Installation Guide

      Product Specifications

      Brand RFI
      Length 99
      Width 3
      Height 3
      Antenna Application Base Station Antenna
      Antenna Cable Type RG142
      Antenna Features Multi Band Capable, PIM Rated, High Power Multi Channel
      Antenna Port Connectors 4.3-10 (F)
      Antenna Type Exposed Dipole Array
      Cable Length (m) 0.5
      Construction All welded aluminium with alodined finish
      Coverage Type Directional
      Downtilt Not offered
      Frequency Band UHF 380-520 MHz
      Horizontal Beamwidth 70?
      Installation Type External mounting
      Low PIM Yes
      Max Frequency (MHz) 520
      Max Gain (dBd/dBi) 7
      MIMO Support No
      Min Frequency (MHz) 400
      Min Gain (dBd/dBi) 2
      Mount Supported Clamp mount
      Mount Supported - Detailed UC1
      Mounting Area 500mm x 48mm diam. aluminium
      No. of Antenna Ports 1
      PIM (3rd, 2 x 20 W) dBc <-150
      Polarisation Vertical
      Power [W] 500
      Technologies Supported UHF
      Termination 4.3-10 female with 0.5m RG142 cable tail.
      Torque [Nm] 431
      Tuned Bandwidth Full band
      Vertical Beamwidth 34?
      VSWR <1.5:1
      Wind Gust (km/h) 220
      Wind Thrust 431
