RFI COD4-99 UHF Dipole Antenna, 330-380 MHz, 2 dBi - Custom Tuned

    RFI COD4-99 UHF Dipole Antenna, 330-380 MHz, 2 dBi - Custom Tuned

      Product form
      Brand:
      RFI
      Item ID:
      167015736
      MPN:
      COD4-99
      Export:
      Restricted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      UHF Enclosed Dipole 330-380 MHz Custom Tuned deliver extremely broad beamwidths which enhance close-in coverage. They are supplied pre-tuned in set bands

      $435.53

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
      •  Item available to backorder. Please contact us for lead time.

      • Pay securely! All major cards accepted.

        shop pay

      Product Description

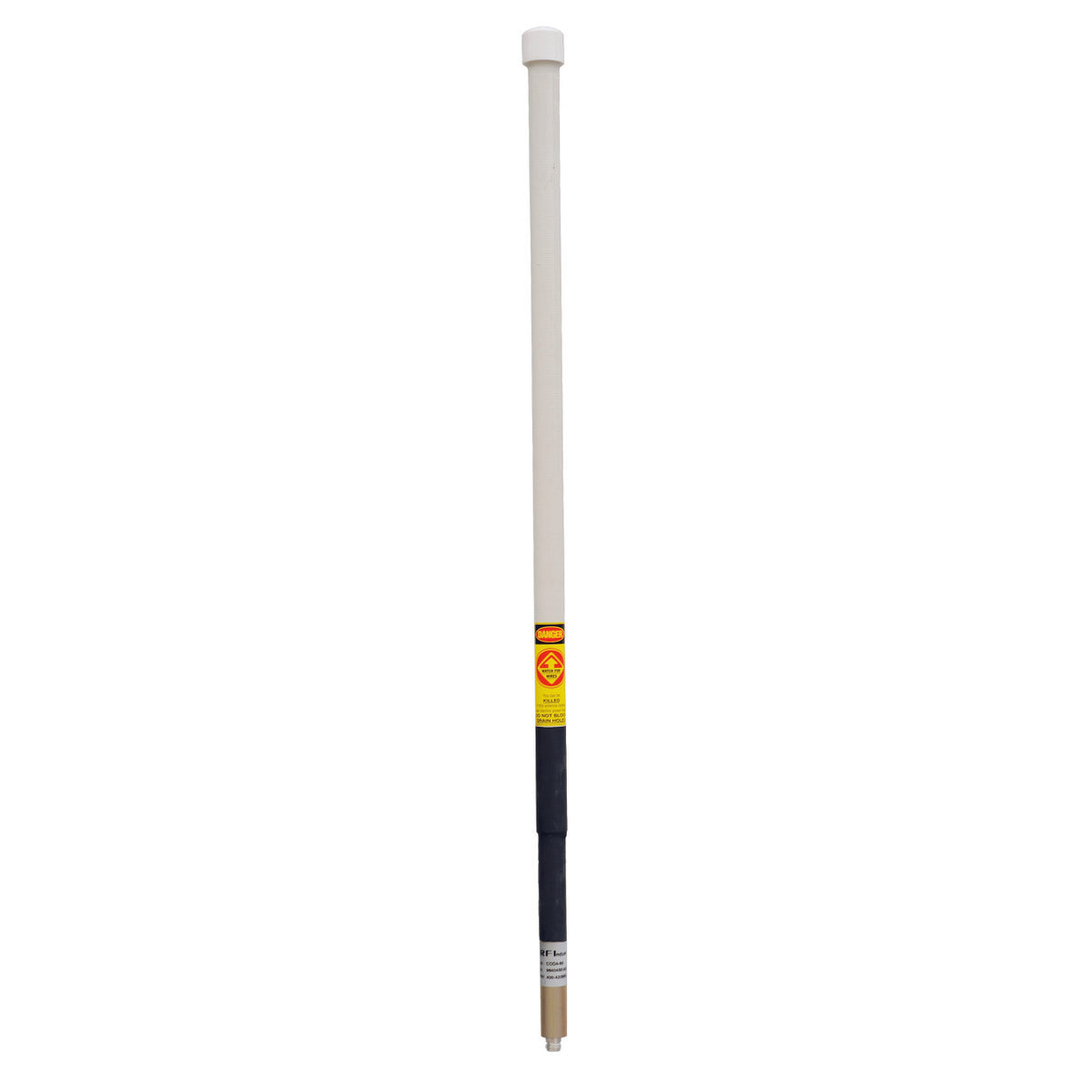

      The COD4 series antennas are a range of fibreglass enclosed vertical dipoles ideal in local coverage applications. COD4 series antennas deliver extremely broad beamwidths which enhance close-in coverage. They are supplied pre-tuned in set bands and can be held as a stock antenna if required.
      • Ideal for local area coverage
      • Available spot tuned to user specified frequencies or in a number of pre-determined band configurations
      • Unity gain omnidirectional radiation pattern with excellent null-fill characteristics
      • Dual decoupling choke to ensure distortion-free pattern

      Documents:

      RFI COD4-99 Antenna - Datasheet

      Product Specifications

      Brand RFI
      Length 99
      Width 3
      Height 3
      Antenna Application Base Station Antenna
      Antenna Features Omnidirectional
      Antenna Port Connectors N (F)
      Antenna Type Vertical Dipoles
      Construction Alodined aluminium elements with white fibreglass radome
      Coverage Type Omni-directional
      Frequency Band UHF
      Horizontal Beamwidth Omni +/- 0.5dB
      Installation Type External mounting
      Low PIM No
      Max Frequency (MHz) 520
      Max Gain (dBd/dBi) 2.1
      MIMO Support No
      Min Frequency (MHz) 375
      Min Gain (dBd/dBi) 2.1
      Mount Supported Clamp mount
      Mount Supported - Detailed UC1, UB1
      Mounting Area 100mm x 25mm diam. alodined aluminium
      No. of Antenna Ports 1
      Nominal Gain [dBi] 2
      Power [W] 100
      Technologies Supported UHF
      Termination N female bulkhead
      Torque [Nm] 11
      Tuned Bandwidth 0.04
      Vertical Beamwidth 78?
      Wind Gust (km/h) >240
      Wind Thrust 32
