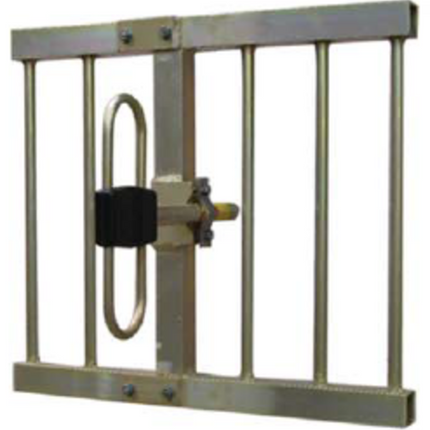

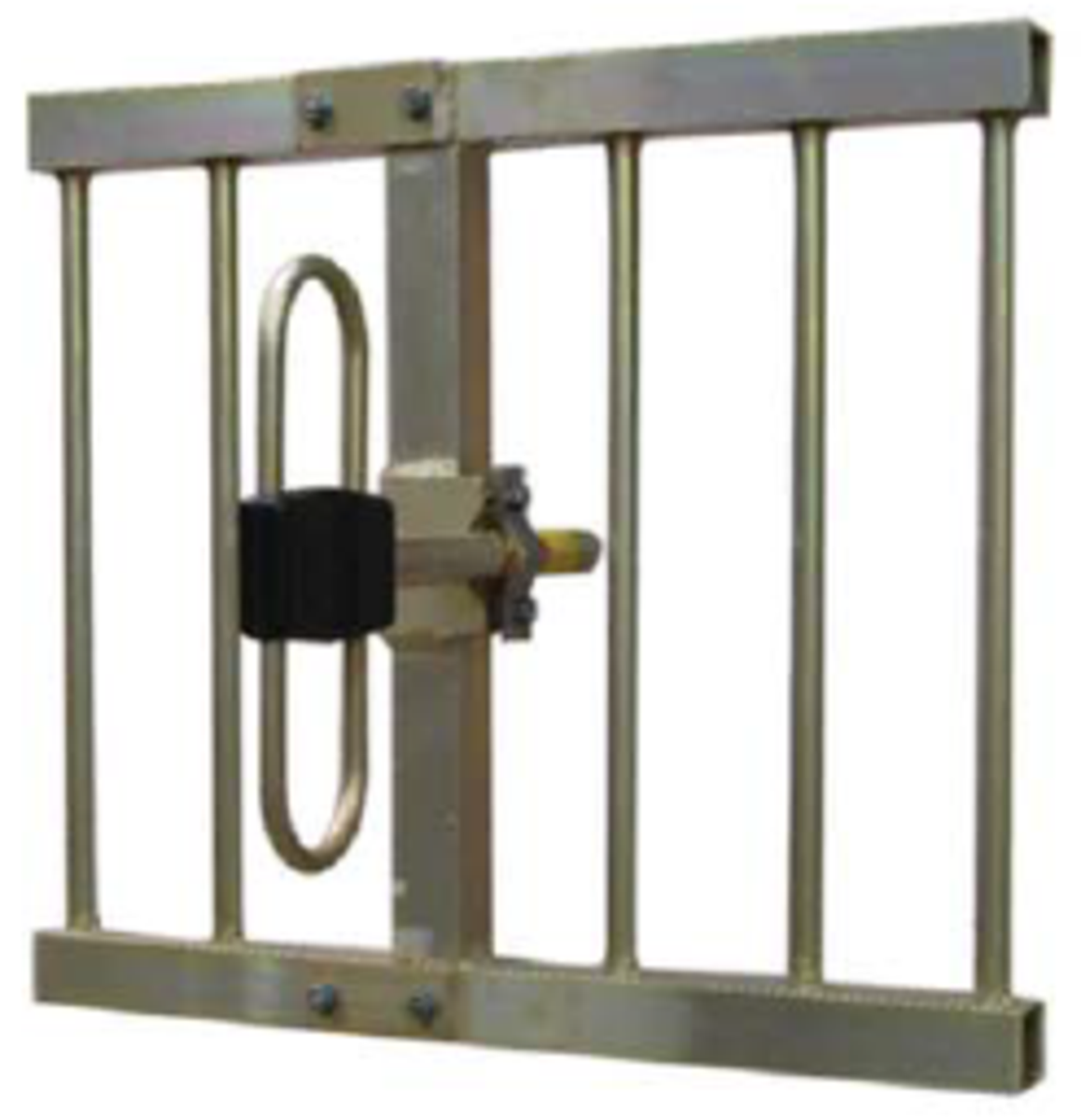

The RFI FSA10-67-P UHF Flat Screened Array (403-512 MHz) is based on the popular OA Series dipole array antennas, offering high performance and durability for extended networks. These antennas are supplied in kit form, delivered in flatpack packaging to minimize freight and warehousing issues, and provide simplified assembly at installation.
Product Features:
- The RFI FSA10-67-P Array features a 130-degree horizontal beamwidth, providing wide coverage for various applications.
- It is available in gain options of 5, 7, and 9 dBd, catering to different network requirements.
- The flat screen reflector boosts the front-to-back ratio, allowing for tailored antenna patterns and frequency re-use.
- The antenna boasts solid construction, featuring the same durable build as the standard array series.
- It utilizes folded dipoles with an internal phasing harness in PTFE-based PIM rated coaxial cable, ensuring superior performance.
- The premium grade structural aluminum screens assist in the mitigation of PIM, enhancing reliability.
- The antenna provides excellent radiation characteristics, ensuring clear and consistent signal transmission.
- It offers intermodulation (IM) performance of -140 dBc based on a two-carrier test, ensuring low IM and noise suppression.
- The entire array rests at ground potential, offering lightning resistance and enhanced durability.
Application Areas:
- This antenna is ideal for extended networks requiring wide coverage and high performance.
- It is suitable for environments where frequency re-use is necessary, providing robust performance.
- This device is perfect for IT and data centers, offering dependable connectivity for critical equipment.
In the Box:
- 1x RFI FSA10-67-P UHF Flat Screened Array
Documents:
RFI FSA10-67-P Array - Datasheet
RFI FSA10-67-P Array - Installation Guide
