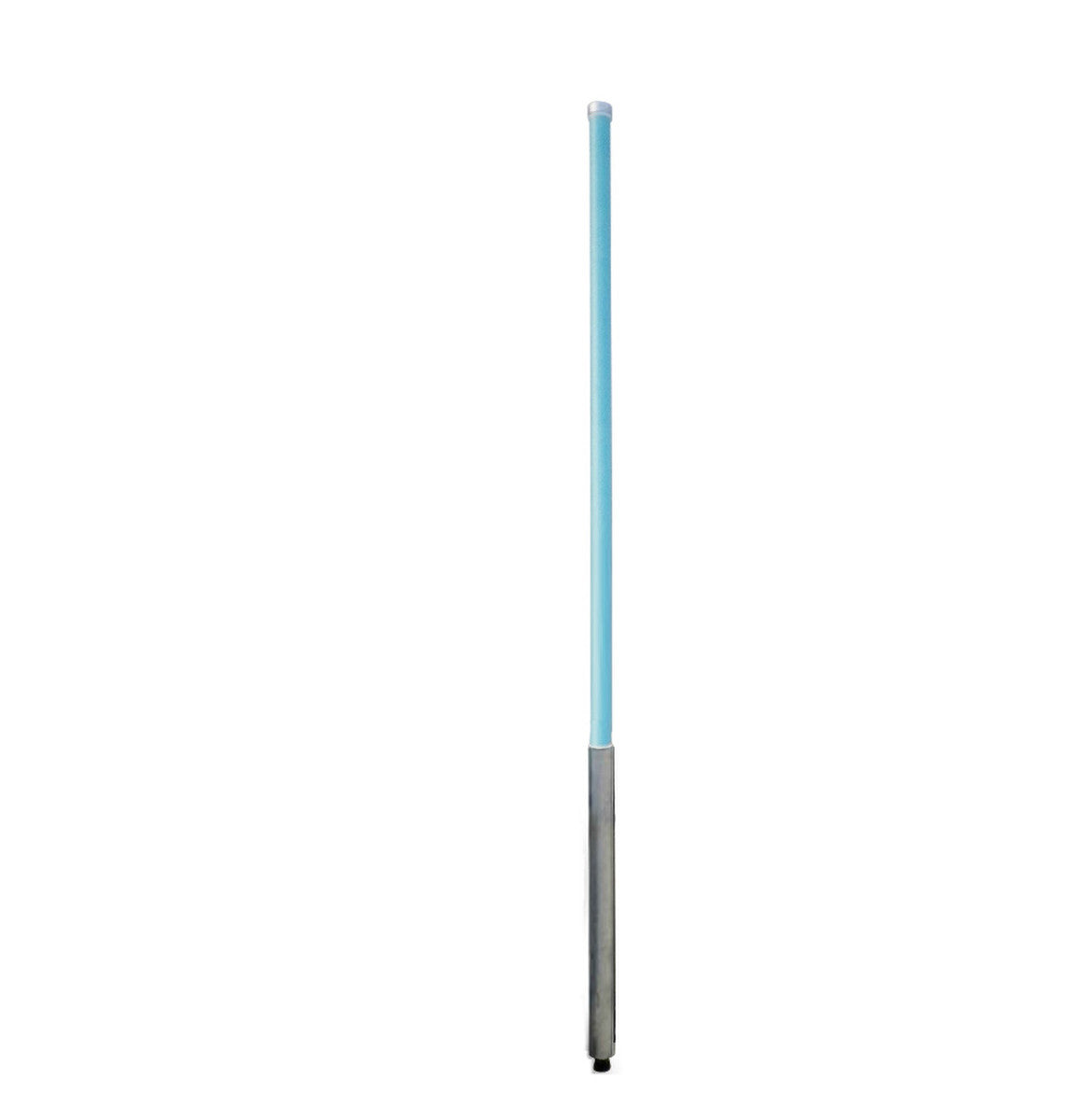

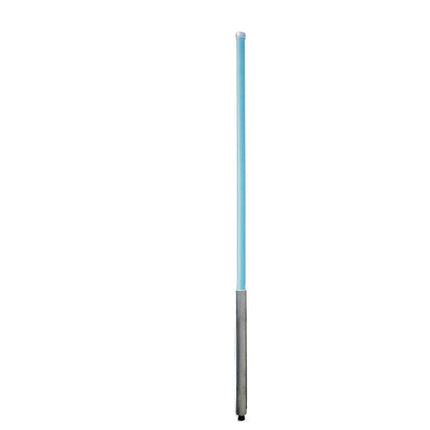

RFI COL43-420-P UHF Meander Collinear Antenna, 400-420 MHz, 5 dBd, 4.3-10-Female

    RFI COL43-420-P UHF Meander Collinear Antenna, 400-420 MHz, 5 dBd, 4.3-10-Female

      Product form
      Brand:
      RFI
      Item ID:
      167015785
      MPN:
      COL43-420-P
      Export:
      Restricted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      UHF Meander Collinear Antenna 400-420 MHz - 5 dBd, 4.3-10 has been specifically designed for wireless applications requiring high performance.

      Available

      $917.82

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        UHF Meander Collinear Antenna 400-420 MHz - 5 dBd; 4.3-10

        • Excellent bandwidth providing full band coverage
        • Internally DC grounded for lightning protection and the reduction of precipitation noise
        • Patented Meander PCB design for optimum RF pattern stability
        • Industry leading PIM ratings (-150 dBc) providing low IM and low noise characteristics for optimum network performance
        • Excellent Peak Instantaneous Power(PIP) rating (25 kW)
        The patented UHF Meander Collinear Antenna 400-420 MHz allows multiple half wave elements to be stacked without the variations in cable lengths and mechanical joints which have typified the construction techniques in high gain collinear antennas. With the dipole elements being printed on a single sided PCB the susceptibility to passive intermodulation is practically eliminated. Placing the elements on a board not only controls PIM but also removes manufacturing variations so that each and every antenna will provide the same pattern, tilt and VSWR characteristics over its operating bandwidth.

        Documents:

        RFI COL43 Antenna - Datasheet

        Product Specifications

        Brand RFI
        Length 99
        Width 3
        Height 3
        Antenna Application Base Station Antenna
        Antenna Features Omnidirectional, PIM Rated, PIP Rated
        Antenna Port Connectors 4.3-10 (F)
        Antenna Type Collinears, Meander
        Connector 4.3-10 (F)
        Construction Composite fibreglass sky blue radome, aluminum mounting tube
        Coverage Type Omni-directional
        Frequency Band UHF 380-520 MHz
        Horizontal Beamwidth Omni +/- 0.5dB
        Installation Type External mounting
        Low PIM Yes
        Max Frequency (MHz) 420
        Max Gain (dBd/dBi) 5
        MIMO Support No
        Min Frequency (MHz) 400
        Min Gain (dBd/dBi) 5
        Mount Supported Clamp mount
        Mount Supported - Detailed UC1
        Mounting Area 500mm x 48.4mm diameter Ecofilm plated aluminium
        No. of Antenna Ports 1
        Nominal Gain [dBi] 7.1
        Peak Instantaneous POWER Kw 25
        PIM (3rd, 2 x 20 W) dBc -150
        Polarisation Vertical
        Power [W] 250
        Radome Diameter Mm 38
        Technologies Supported UHF
        Termination 4.3-10
        Torque [Nm] 86
        Tuned Bandwidth Full band
        Vertical Beamwidth 21?
        VSWR <1.5:1
        Wind Gust (km/h) 240
        Wind Thrust 109
