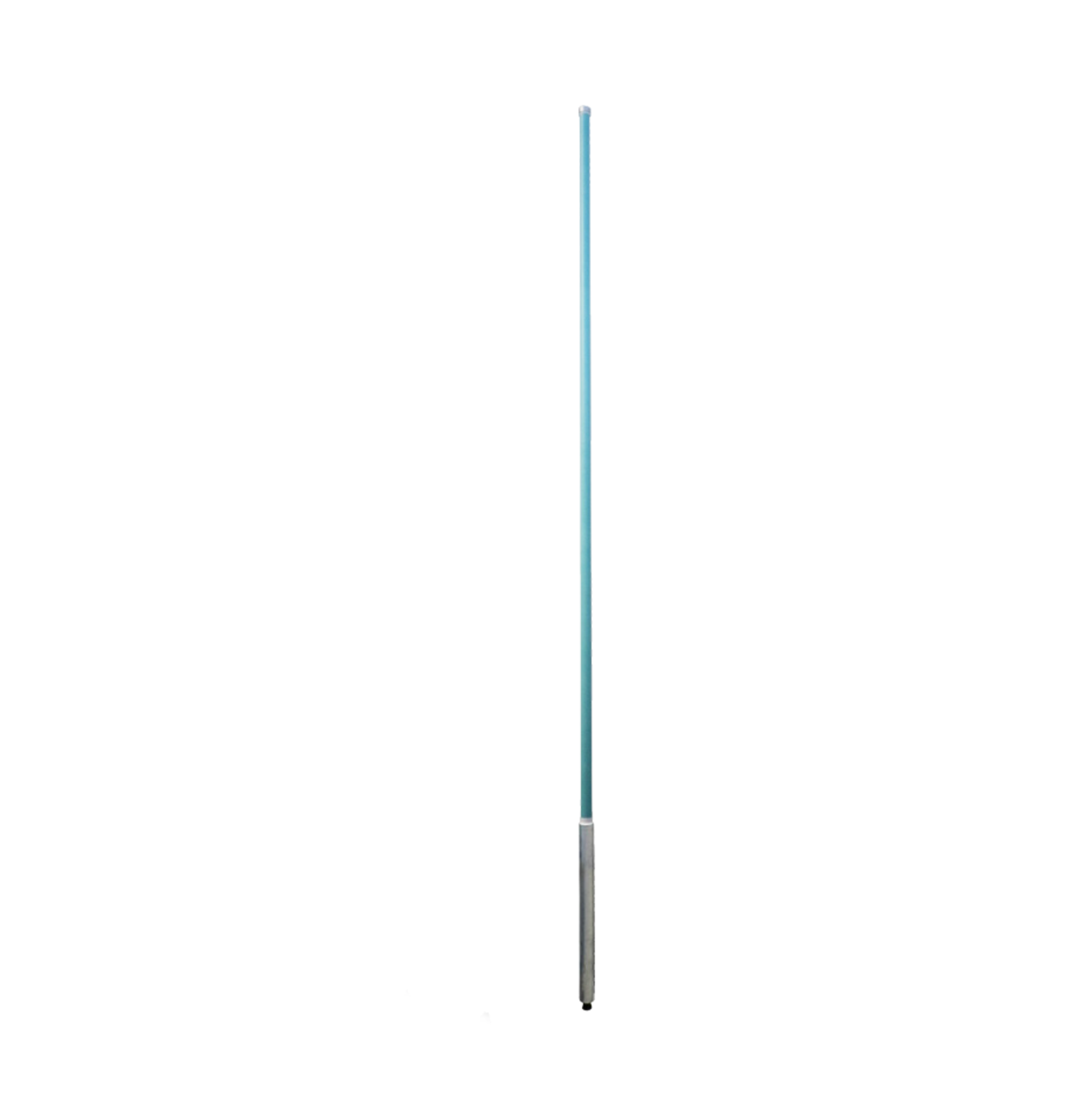

RFI COL410-470-P UHF Meander Collinear Antenna, 450-470 MHz, 9 dBd, 4.3-10-Female

RFI COL410-470-P UHF Meander Collinear Antenna, 450-470 MHz, 9 dBd, 4.3-10-Female

On backorder

Brand:
Item ID:
167015766
Export:
Restricted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
COL410-470-P
Send Request for Quote (RFQ) Discount Offers
UHF Meanderâ„¢ Collinear Antenna 450-470 MHz - 9 dBd, 4.3-10 has been specifically designed for wireless applications requiring high performance.
Regular price $1,585.00
Regular price $0.00 Sale price $1,585.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

UHF Meanderâ„¢ Collinear Antenna 450-470 MHz - 9 dBd; 4.3-10

  • Excellent bandwidth providing full band coverage
  • Internally DC grounded for lightning protection and the reduction of precipitation noise
  • Patented Meanderâ„¢ PCB design for optimum RF pattern stability
  • Industry leading PIM ratings (-150 dBc) providing low IM and low noise characteristics for optimum network performance
  • Excellent Peak Instantaneous Power (PIP) rating (25 kW)
The patented UHF Meanderâ„¢ Collinear Antenna 450-470 MHz - 9 dBd, 4.3-10 design allows multiple half wave elements to be stacked without the variations in cable lengths and mechanical joints which have typified the construction techniques in high gain collinear antennas. With the dipole elements being printed on a single sided PCB the susceptibility to passive intermodulation is practically eliminated. Placing the elements on a board not only controls PIM but also removes manufacturing variations so that each and every antenna will provide the same pattern, tilt and VSWR characteristics over its operating bandwidth.

Documents:

RFI COL410 Antenna - Datasheet

Product Specifications

Add length 5.39 m
MPN COL410-470-P
Antenna application Base Station Antenna
Antenna features Omnidirectional, PIM Rated, PIP Rated
Antenna port connectors 4.3-10 (F)
Antenna type Collinears, Meander
Brands RFI
Connector 4.3-10 (F)
Construction Composite fibreglass sky blue radome, aluminum mounting tube
Coverage type Omni-directional
Frequency band UHF 380-520 MHz
Height 3
Horizontal beamwidth Omni +/- 0.5dB
Installation type External mounting
Length 99
Low pim Yes
Max frequency mhz 470
Max gain dbd dbi 9
Mimo support No
Min frequency mhz 450
Min gain dbd dbi 9
Mount supported Clamp mount
Mount supported detailed UC-114
Mounting area 650 x 76.2 diam. aluminum
No of antenna ports 1
Nominal gain dbi 11.1
Peak instantaneous power kw 25
Pim 3rd 2x20 w dbc -150
Polarisation Vertical
Power w 250
Radome diameter mm 65
Technologies supported UHF
Termination 4.3-10
Torque nm 1063
Tuned bandwidth Full band
Vertical beamwidth 7.2?
Vswr <1.5:1
Width 3
Wind gust km h 240
Wind thrust 491
