UHF Stainless Steel Side Mounted Dipole 360-600 MHz Custom Tuned

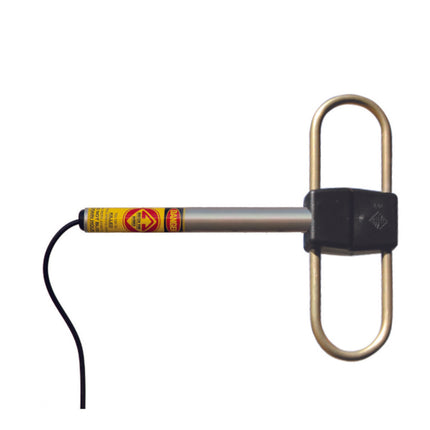

The SMD41-99-P is of all welded stainless steel construction. The feed point is protected by an ABS cap, with the internal PTFE based cable construction providing excellent intermodulation performance (-150 dBc). All of the SMD4 series antennas are directly DC grounded for superior lightning protection and the reduction of precipitation static noise. The SMD4 Series antennas are supplied with a boom for ¼ wave antenna to mast spacing. Application details on phasing and mounting of SMD antennas are included in the technical notes at the back of this catalogue.

Features:

• Versatile - Antennas can be phased and manipulated to achieve a variety of horizontal radiation patterns and varying gains. An extensive range of phasing harnesses available.
• Stock Antennas - Generally available off the shelf Lightweight
• Easily mounted and installed with single clamps
• All welded, full folded dipole construction
• Varying boom lengths available to suit coverage requirements
• A range of suitable phasing harnesses available

The SMD41-99-P is designed only for use as a single dipole, not as a component of a phased dipole array as the antenna is custom made to user specified frequencies and is not specifically matched to a phasing harness. It can be ordered with a specified centre frequency anywhere in the band from 360 to 600 MHz with an operating bandwidth of approximately 20% of centre frequency.

Documents:

RFI SMD41-99-P Side Mounted Dipole Antenna - Datasheet
