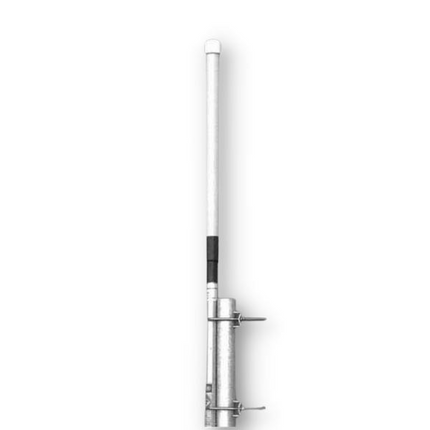

RFI COD8-7687 Broadband Dipole Antenna, 760-870 MHz, 2 dBi, N-Female

    RFI COD8-7687 Broadband Dipole Antenna, 760-870 MHz, 2 dBi, N-Female

      Product form
      Brand:
      RFI
      Item ID:
      167015353
      Export:
      Restricted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      COD8-7687
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      Unity Gain Broadband Dipole Antenna 760-870 MHz enclosed vertical dipoles ideal in point to multipoint, control station and local coverage area applications

      $468.50

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
      •  Item available to backorder. Please contact us for lead time.

      • Pay securely! All major cards accepted.

        shop pay

      Product Description

      The COD8-7687 unity gain broadband dipole antenna is designed to cover the entire 760-870MHz frequency band. Suitable applications include low power base stations, RF Control Stations, and other applications requiring a wide operating frequency bandwidth.

      Features:

      • Available in wideband coverage, eliminating the need for spot tuned antennas
      • Excellent null fill coverage
      • Omni-directional unity gain performance

      Documents:

      RFI COD8 Antenna - Datasheet RFI COD8 Antenna - Installation Guide

      Product Specifications

      MPN COD8-7687
      Antenna application Base Station Antenna
      Antenna features Omnidirectional
      Antenna port connectors N (F)
      Antenna type Vertical Dipoles
      Brands RFI
      Construction Alodined aluminium elements with white fibreglass radome
      Coverage type Omni-directional
      Frequency band 900 MHz, 700 MHz, 800 MHz
      Frequency mhz 850-930
      Height 3
      Horizontal beamwidth Omni +/- 0.5dB
      Installation type External mounting
      Length 80
      Low pim No
      Max frequency mhz 870
      Max gain dbd dbi 2
      Mimo support No
      Min frequency mhz 763
      Min gain dbd dbi 2
      Mount supported Clamp mount
      Mount supported detailed UB1
      Mounting area 315mm x 25mm diam. alodined aluminium
      No of antenna ports 1
      Nominal gain dbi 2
      Power w 100
      Technologies supported UHF
      Termination N female bulkhead
      Torque 160km h nm 5
      Torque nm 5
      Tuned bandwidth Full
      Vertical beamwidth 78?
      Width 3
      Wind gust km h >240
      Wind load 160km h n >240
      Wind thrust 32
