RFI GP1 VHF Adjustable Ground Plane Antenna, 70-85 MHz, 2 dBi

    RFI GP1 VHF Adjustable Ground Plane Antenna, 70-85 MHz, 2 dBi

      Product form

      VHF Adjustable Ground Plane 70-85 MHz is ideal for local area coverage when a high gain antenna is not required or justified.

      Brand
      RFI
      Export
      Restrictedwhat this means
      Item ID
      167015928
      MPN
      GP1
      Shipping
      Please contact us for lead time
      Standard Warranty Global Insurance Except USA & Canada

      $381.75

      Bulky item. Export orders may incur additional charges — ask us for a quote.

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay
        ACMA licensing for HF, VHF and UHF radio: class licence, CB or an assigned land mobile licence — and how each shapes your antenna design Design guide ACMA licensing for HF, VHF and UHF radio: class licence, CB or an assigned land mobile licence — and how each shapes your antenna designBefore you buy a two-way radio system, know which of the three ACMA paths it will run under: a class licence you never apply...Read the guide

        Product Description

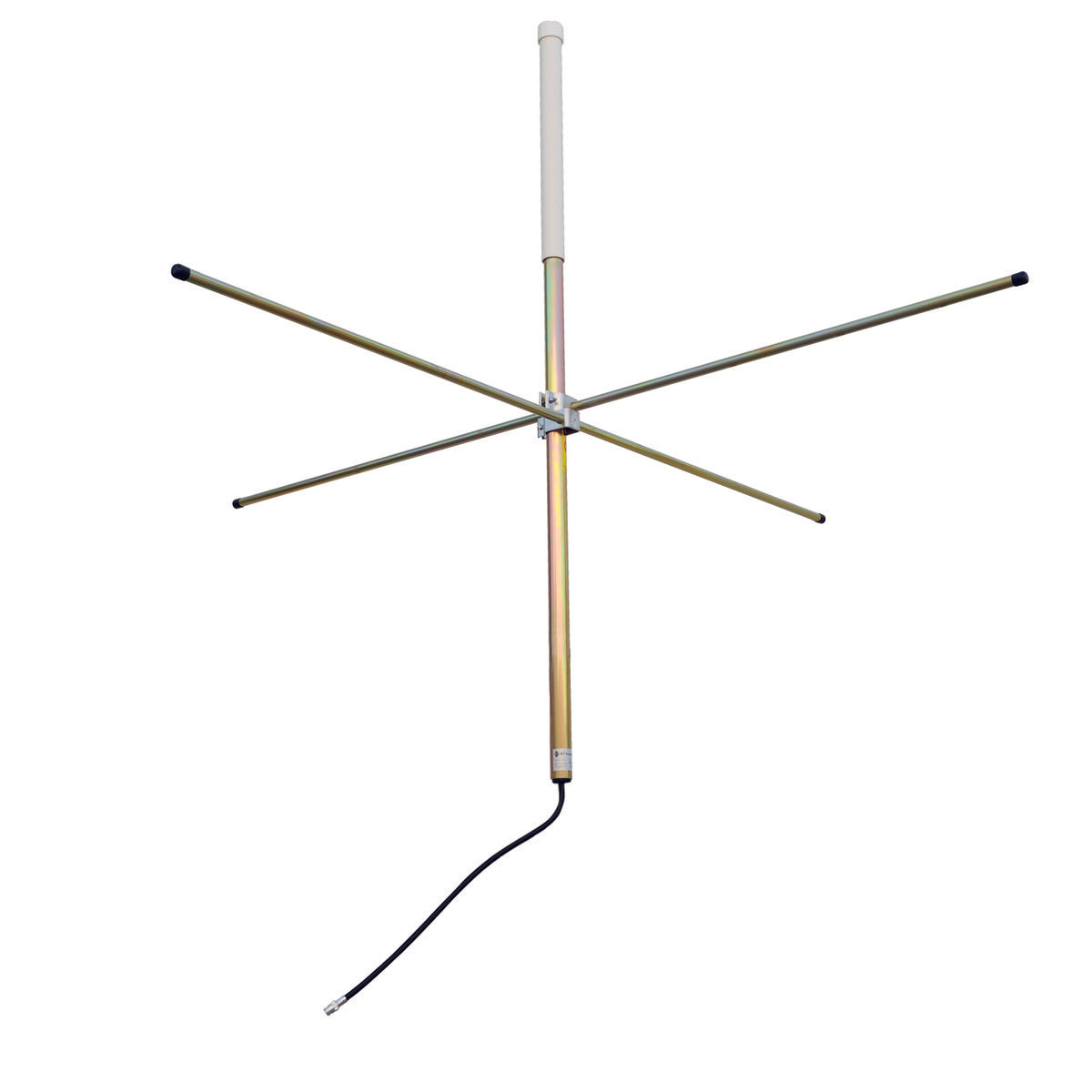

        VHF Adjustable Ground Plane 70-85 MHz

        Electrically, the GP Series antenna (GP1) is a quarter wave radiating element with the radials acting as a counterpoise. These radials are of one-piece construction and utilise a unique single bolt clamping design. The antennas are DC grounded for superior lightning protection and the reduction of precipitation static noise.

        Features:

        • Easily field tuned by adjusting the position of the radials
        • Lightweight and easy to mount
        • Broad vertical beamwidth for excellent null fill
        • Compact - Shipped disassembled for ease of handling

        Documents:

        RFI GP1 Antenna - Datasheet
        RFI GP1 Antenna - Installation Guide

        Product Specifications

        Brand RFI
        Length (cm) 190
        Width (cm) 50
        Height (cm) 50
        Antenna Application Base Station Antenna
        Antenna Cable Type RG213
        Antenna Features Omnidirectional
        Antenna Port Connectors N (F)
        Antenna Type Ground Planes
        Cable Length (m) 0.5
        Construction Heavy duty aluminium radiating element encased in a PVC radome
        Coverage Type Omni-directional
        Frequency [MHz] 70-85
        Frequency Band VHF Mid Band 66-88 MHz
        Horizontal Beamwidth Omni +/-0.5dB
        Installation Type External mounting
        Low PIM No
        Max Frequency (MHz) 85
        Max Gain (dBd/dBi) 2
        MIMO Support No
        Min Frequency (MHz) 70
        Min Gain (dBd/dBi) 2
        Mount Supported Clamp mount
        Mount Supported - Detailed UC1, UB1
        Mounting Area 500mm x 40mm diam. aluminium
        No. of Antenna Ports 1
        Polarisation Vertical
        Power [W] 200
        Technologies Supported VHF
        Termination N female with 0.5m RG213 cable tail
        Torque [Nm] 67
        Tuned Bandwidth 5MHz
        Vertical Beamwidth 110?
        VSWR <1.5:1
        Wind Thrust 208
