RFI FSA10-41-P VHF Directional Antenna, 146-174 MHz, 5 dBd

RFI FSA10-41-P VHF Directional Antenna, 146-174 MHz, 5 dBd

On backorder

Brand:
Item ID:
167015906
Export:
Restricted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
FSA10-41-P
Send Request for Quote (RFQ) Discount Offers
VHF Directional Antennas 146-174 MHz - 5 dBd, are delivered in flat-pack packaging to minimise freight and warehousing issues.
Regular price $1,896.00
Regular price $0.00 Sale price $1,896.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

VHF Directional Antennas 146-174 MHz - 5 dBd

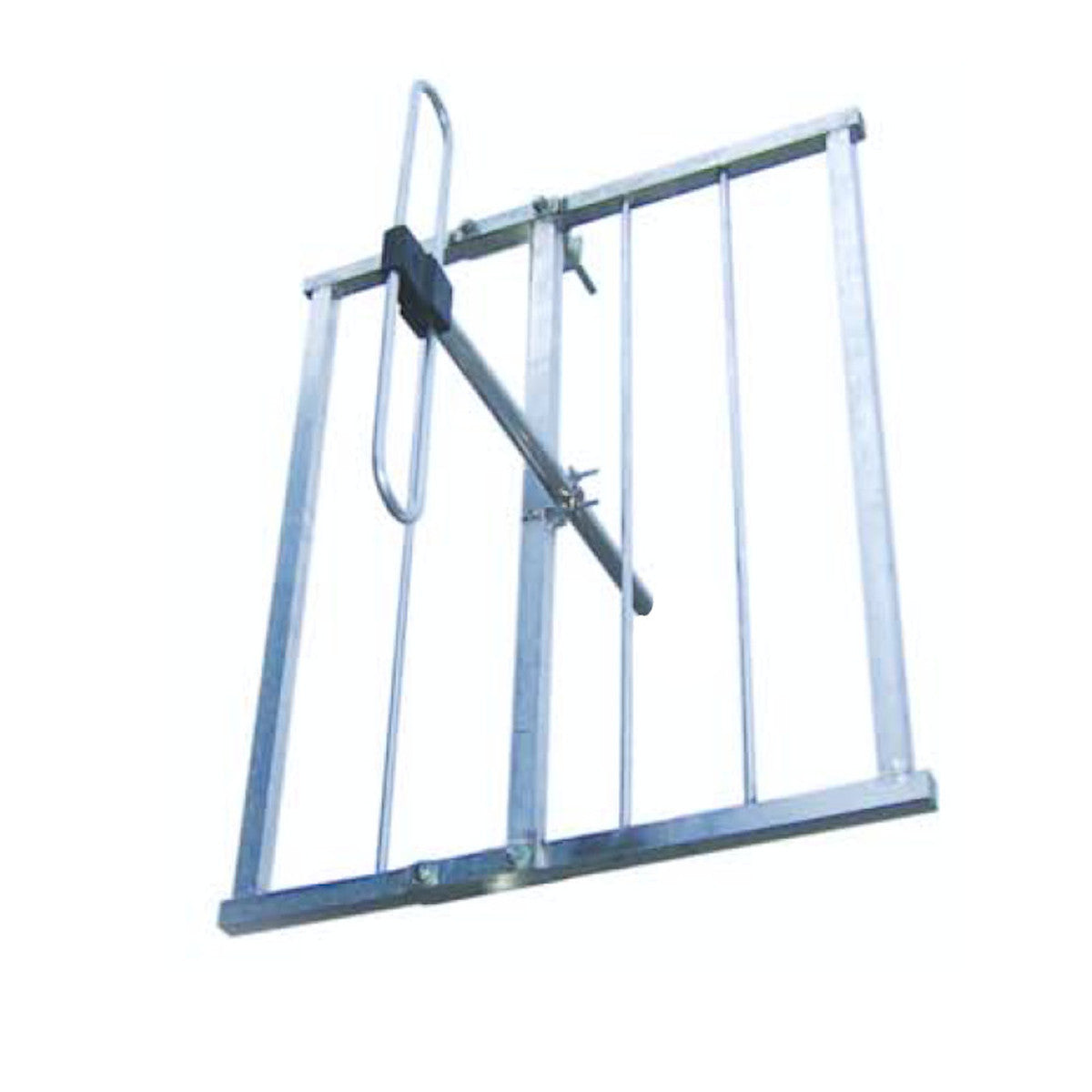

The FSA Series arrays have approximately 105 degrees horizontal beamwidth and offer 5 or 7 dBd in gain. The use of the flat screen reflector boosts the front to back ratio considerably allowing for tailoring antenna patterns for frequency re-use in extended networks. FSA Series Arrays feature the same solid construction as the standard array series. The folded dipoles utilise an internal phasing harness in PTFE based PIM rated coaxial cable with IP rated termination. The screens themselves are also made of premium grade structural aluminum further assisting in the mitigation of PIM. Consisting of Aluminium construction and superior internal harness design these antennas provide not only excellent radiation characteristics but also defined, high levels of intermodulation and noise suppression. IM performance is -140 dBc based on a two carrier test. The entire array (VHF Directional Antennas 146-174 MHz - 5 dBd) rests at ground potential and offers the ultimate in lightning resistant antennas.
  • Offset (cardioid) pattern with 105 Degree nominal Horizontal Beamwidth
  • High front to back ratio to allow frequency re-use by tailoring coverage areas
  • Hermetically sealed internal PTFE based phasing harness capable of 500W continuous operation.
  • Shipped unassembled for ease of handling, easily assembled on site
  • Direct DC grounded for lightning protection and reduction of precipitation static noise
  • Industry leading dual sectioned antenna PIM ratings (-140 dBc) providing low IM and low noise characteristics for optimum performance.

Documents:

RFI FSA10-41-P Antenna - Datasheet
RFI FSA10-41-P Antenna - Installation Guide

Product Specifications

MPN FSA10-41-P
Antenna application Base Station Antenna
Antenna cable type RG142
Antenna features Multi Band Capable, PIM Rated, High Power Multi Channel
Antenna port connectors 4.3-10 (F)
Antenna type Exposed Dipole Array
Brands RFI
Cable length m 0.5
Construction Welded aluminium, corrosion protection plating
Coverage type Directional
Frequency band VHF High Band 118-180 MHz
Frequency mhz 146-174
Front back ratio db 17
Height 3
Horizontal beamwidth 106?
Installation type External mounting
Length 99
Low pim Yes
Max frequency mhz 174
Max gain dbd dbi 5
Mimo support No
Min frequency mhz 146
Min gain dbd dbi 5
Mount supported Pole mount
Mount supported detailed Pole mount
Mounting area Clamps included to suit pole diameter 50-90mm
No of antenna ports 1
Pim 3rd 2x20 w dbc <140
Power w 750
Technologies supported VHF
Termination 4.3-10 female on cable tail 500mm
Torque nm 20.5
Tuned bandwidth Full. No tuning required
Vertical beamwidth 70?
Vswr <1.5:1 (14dB)
Width 3
Wind gust km h >240
Wind thrust 676
