RFI EA40-41-P VHF Elliptical Dipole Array 136-174 MHz, 5 dBd

RFI EA40-41-P VHF Elliptical Dipole Array 136-174 MHz, 5 dBd

On backorder

Brand:
Item ID:
167015896
Export:
Restricted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
EA40-41-P
Discount Offers
VHF Elliptical Dipole Array 136-174 MHz -5 dBd ideal for the bi-directional coverage requirement of paging and VHF high band mobile “corridor” applications.
Price on application
Open Request for Quote (RFQ) Form View full details

Product Description

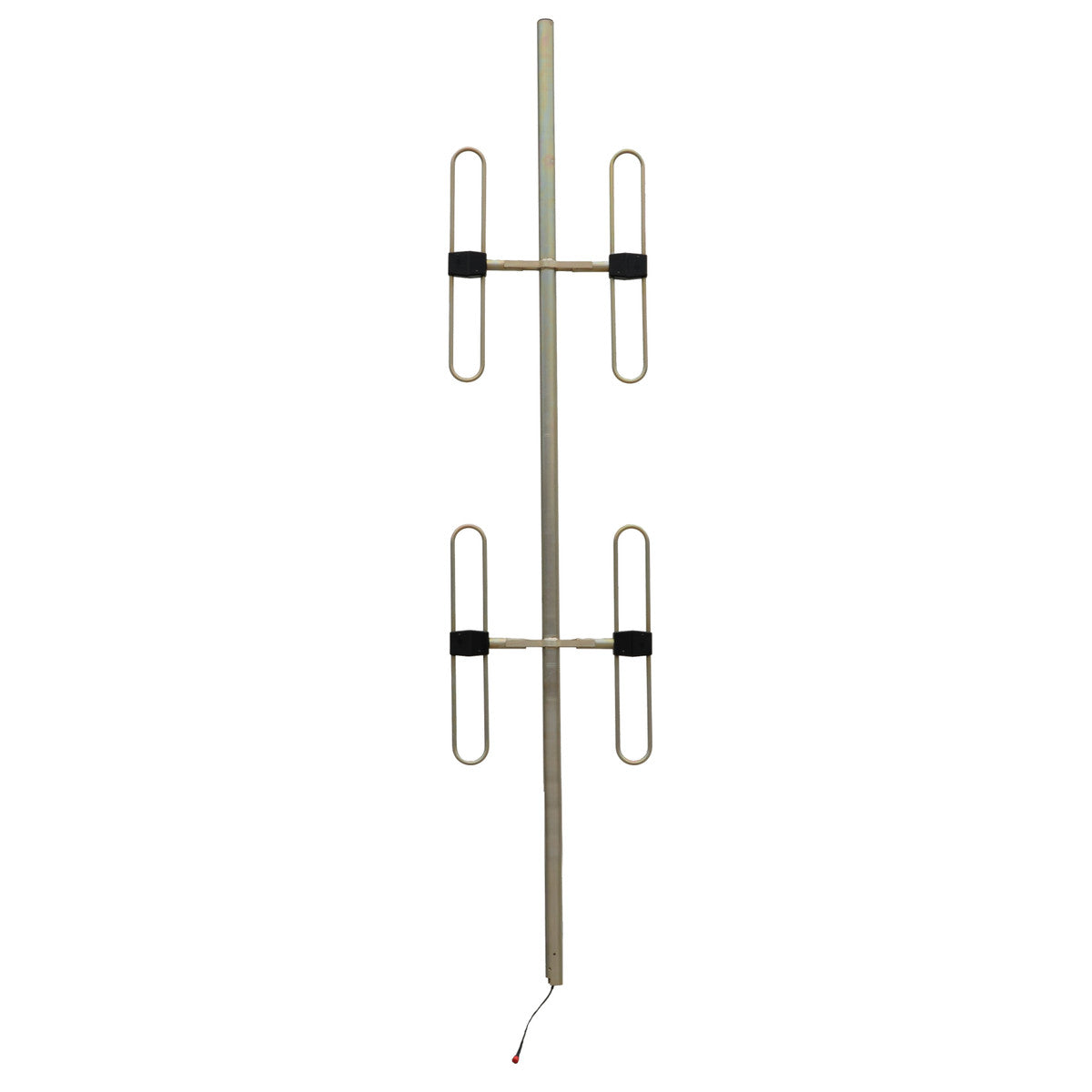

VHF Elliptical Dipole Array 136-174 MHz - 5 dBd

The folded dipoles utilise an internal phasing harness in stable, PTFE based double-screened coaxial cable with PE Jacket for optimal weatherproofing. These elliptical arrays incorporate extensive side lobe suppression, null fill, and accommodate power input levels of 750 watts continuous. With all welded construction and superior internal harness construction these antennas provide not only excellent radiation characteristics but also high levels of intermodulation and noise suppression. The entire array rests at ground potential and offers the ultimate in lightning resistant antennas.

Features:

  • New 4.3-10 high performance connector
  • High gain elliptical pattern with 5 dBd or 8 dBd versions available
  • Operate over entire 136-174 MHz band without tuning or adjustment
  • Inverted mounting version available
Industry leading PIM ratings (-150 dBc) providing low IM and low noise characteristics for optimum performance Options available include:
  • All stainless steel 316 grade construction (5 dBd array only)
  • EA40 series can be optionally supplied in all welded 316 grade stainless steel.
  • Dimensions vary slightly

Documents:

RFI EA40-41-P Dipole Array - Datasheet
RFI Dipole Array - Installation Guide

Product Specifications

MPN EA40-41-P
Antenna application Base Station Antenna
Antenna cable type RG142
Antenna features Multi Band Capable, PIM Rated, High Power Multi Channel
Antenna port connectors 4.3-10 (F)
Antenna type Exposed Dipole Array
Brands RFI
Cable length m 0.5
Construction All welded aluminium with alodined finish.
Coverage type Directional
Downtilt 0? Std
Frequency band VHF High Band 118-180 MHz
Frequency mhz 136-174
Height 3
Horizontal beamwidth 104?
Installation type External mounting
Length 99
Low pim Yes
Max frequency mhz 174
Max gain dbd dbi 7
Mimo support No
Min frequency mhz 136
Min gain dbd dbi 7
Mount supported Clamp mount
Mount supported detailed UC-114
Mounting area 750mm x 63mm diam. aluminium
No of antenna ports 1
Pim 3rd 2x20 w dbc <-150
Polarisation Vertical
Power w 750
Technologies supported VHF
Termination 4.3-10 female with 0.5m RG142 cable tail.
Torque nm 708
Tuned bandwidth Full. No tuning required
Vertical beamwidth 35?
Vswr <1.5:1
Width 3
Wind gust km h 240
Wind thrust 567
