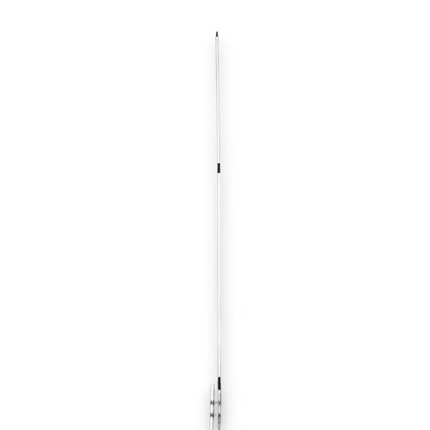

RFI COD30 VHF Enclosed Dipole Antenna, 30-50 MHz, 2dBi, N-Female

    RFI COD30 VHF Enclosed Dipole Antenna, 30-50 MHz, 2dBi, N-Female

      Product form
      Brand:
      RFI
      Item ID:
      167015352
      MPN:
      COD30
      Export:
      Restricted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      VHF Enclosed Dipole 30-50 MHz Custom Tuned enclosed vertical dipole, ideal in single frequency or two antenna system applications.

      $863.54

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
      •  Item available to backorder. Please contact us for lead time.

      • Pay securely! All major cards accepted.

        shop pay

      Product Description

      The COD30 is constructed with an alodined aluminium radiating element enclosed within a fibreglass radome. The antenna is end fed and terminated with a fixed N type female connector. A DC short is incorporated for lightning protection and reduction of precipitation static noise. The antenna mounts via a 40 mm diameter alodined aluminium mount tube. The antenna is supplied pre-tuned to user specified frequencies for immediate installation.

      Features:

      • Ideal in single frequency or two antenna system applications
      • Unity gain, omnidirectional radiation pattern

      Documents:

      RFI COD30 Antenna - Datasheet

      Product Specifications

      Brand RFI
      Length 99
      Width 3
      Height 3
      Antenna Application Base Station Antenna
      Antenna Features Omnidirectional
      Antenna Port Connectors N (F)
      Antenna Type Vertical Dipoles
      Construction Alodined aluminium elements with white fibreglass radome
      Coverage Type Omni-directional
      Frequency [MHz] 30-50
      Horizontal Beamwidth Omni +/- 0.5dB
      Installation Type External mounting
      Low PIM No
      Max Frequency (MHz) 50
      Max Gain (dBd/dBi) 2
      MIMO Support No
      Min Frequency (MHz) 30
      Min Gain (dBd/dBi) 2
      Mount Supported Clamp mount
      Mount Supported - Detailed UC1
      Mounting Area 500mm x 40mm diam. alodined aluminium
      No. of Antenna Ports 1
      Nominal Gain [dBi] 2
      Power [W] 150
      Technologies Supported VHF
      Termination N female bulkhead
      Torque [Nm] 447
      Tuned Bandwidth 0.01
      Vertical Beamwidth 77?
      Wind Thrust 193
