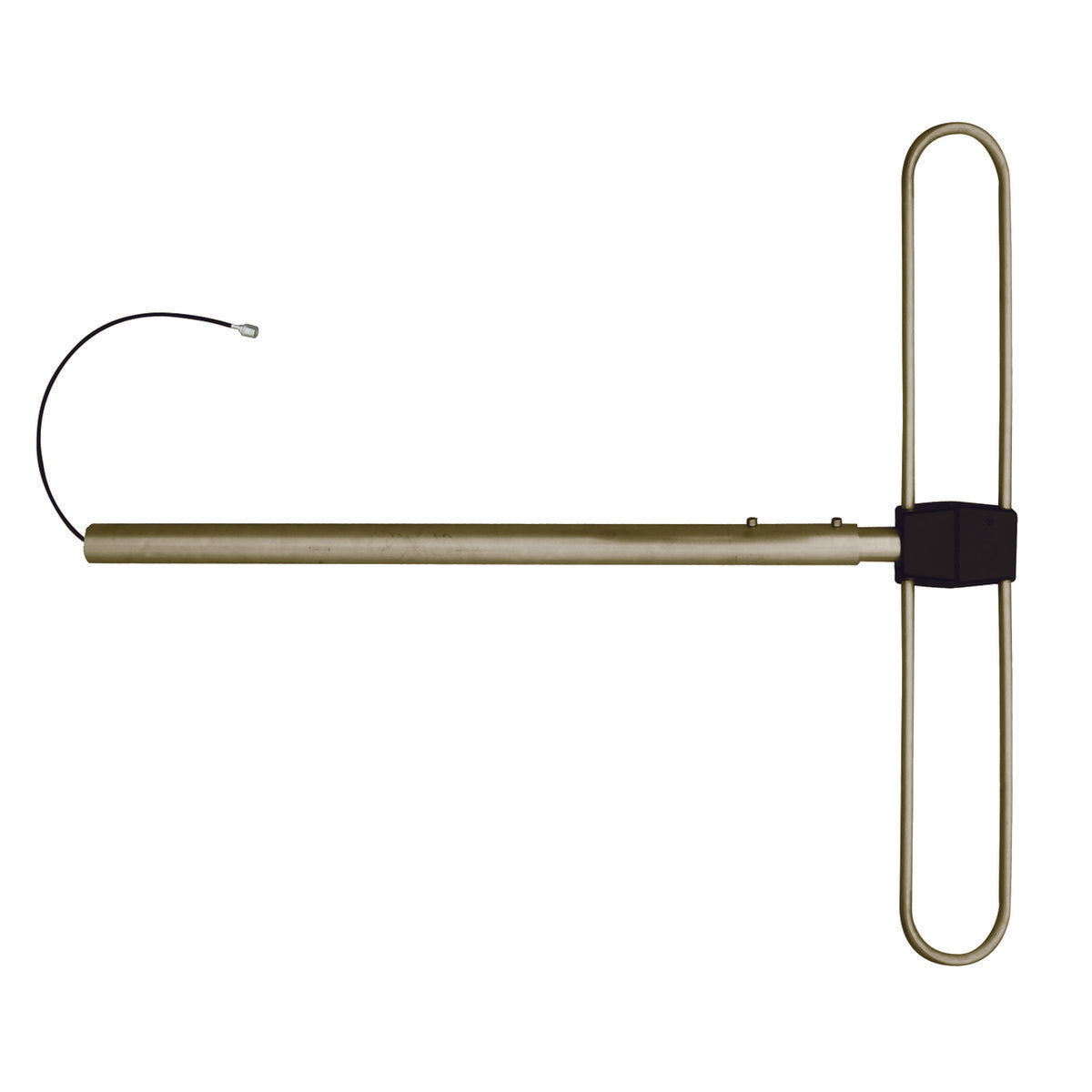

RFI SMD20-41-P VHF Side Mount Dipole Antenna, 148-174 MHz, Low PIM

    RFI SMD20-41-P VHF Side Mount Dipole Antenna, 148-174 MHz, Low PIM

      Product form
      Brand:
      RFI
      Item ID:
      167016087
      Export:
      Restricted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      SMD20-41-P
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      VHF Low PIM Side Mount Dipole 148-174 MHz, can be mounted in dual arrays for 3 dB gain, or four-stack arrays for 6 dB gain over a single dipole.

      Available

      $526.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        VHF Low PIM Side Mount Dipole 148-174 MHz 4.3-10

        • Can be phased to provide 3 dBd or 6 dBd gain, in a variety of patterns tailored to suit specific requirements. An extensive range of phasing harnesses available.
        • Full bandwidth coverage for both single antennas and phased arrays -ideal in community sites
        • DC grounded for lightning protection and dissipation of static noise
        • 150 dBc Passive Intermodulation (PIM) rating

        Documents:

        RFI SMD20-41-P Side Mounted Dipole Antenna - Datasheet
        RFI SMD20-41-P Side Mounted Dipole Antenna - Installation Guide
        Phasing Yagi Antennas - Technical Guide

        Product Specifications

        MPN SMD20-41-P
        Antenna application Base Station Antenna
        Antenna cable type 9142
        Antenna features Multi Band Capable, PIM Rated, High Power Multi Channel
        Antenna port connectors 4.3-10 (F)
        Antenna type Side Mounted Dipoles
        Brands RFI
        Cable length m 0.1
        Construction Welded aluminium with alodined finish
        Coverage type Directional
        Frequency band VHF High Band 118-180 MHz
        Height 3
        Horizontal beamwidth Typically 175? at ? l antenna - mast spacing
        Installation type External mounting
        Length 82
        Low pim Yes
        Max frequency mhz 174
        Max gain dbd dbi 1
        Mimo support No
        Min frequency mhz 148
        Min gain dbd dbi 1
        Mount supported Clamp mount
        Mount supported detailed UCR1, UCR2
        Mounting area 100mm x 40mm diam.
        No of antenna ports 1
        Pim 3rd 2x20 w dbc <-150
        Polarisation Vertical
        Power w 750
        Technologies supported VHF
        Termination 4.3-10
        Tuned bandwidth Full. No tuning required
        Vertical beamwidth Typically 70? at ? l antenna - mast spacing
        Vswr <1.5:1
        Width 3
        Wind gust km h >240
