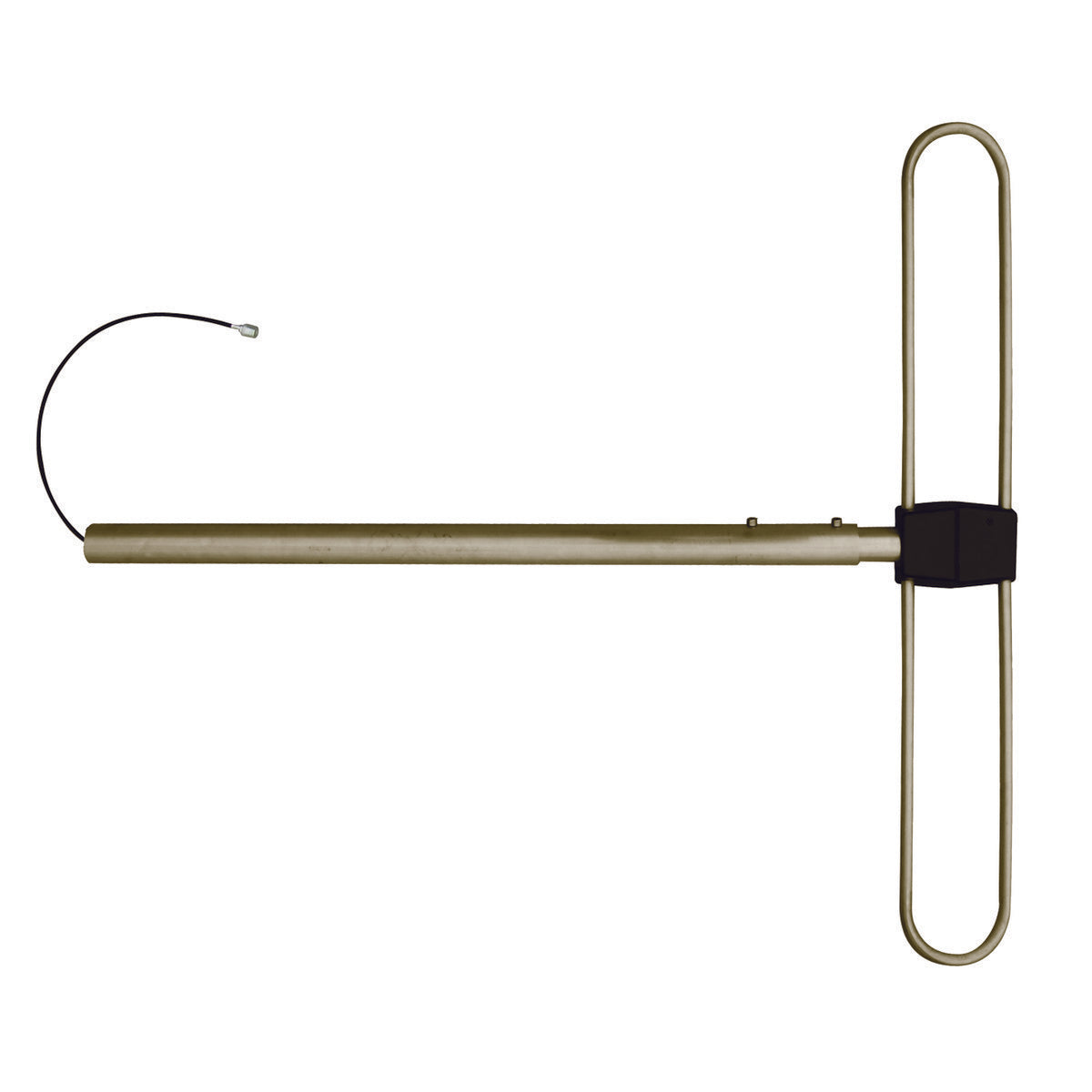

RFI SMD20-36-P VHF Side Mounted Dipole Antenna, 130-150 MHz

    RFI SMD20-36-P VHF Side Mounted Dipole Antenna, 130-150 MHz

      Product form

      VHF Low PIM Side Mounted Dipole 130-150MHz, can be mounted in dual arrays for 3dB gain, or four-stack arrays for 6dB gain over a single dipole.

      Brand
      RFI
      Export
      Restrictedwhat this means
      Item ID
      167016085
      MPN
      SMD20-36-P
      Shipping
      Ships out in 1-2 business days
      Standard Warranty Global Insurance Except USA & Canada

      Available

      $536.57

      Bulky item. Export orders may incur additional charges — ask us for a quote.

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay
        ACMA licensing for HF, VHF and UHF radio: class licence, CB or an assigned land mobile licence — and how each shapes your antenna design Design guide ACMA licensing for HF, VHF and UHF radio: class licence, CB or an assigned land mobile licence — and how each shapes your antenna designBefore you buy a two-way radio system, know which of the three ACMA paths it will run under: a class licence you never apply...Read the guide

        Product Description

        VHF Low PIM Side Mounted Dipole 130-150 MHz 4.3-10

        • Can be phased to provide 3 dBd or 6 dBd gain, in a variety of patterns tailored to suit specific requirements. An extensive range of phasing harnesses available.
        • Full bandwidth coverage for both single antennas and phased arrays -ideal in community sites
        • DC grounded for lightning protection and dissipation of static noise - 150 dBc Passive Intermodulation (PIM) rating

        Documents:

        RFI SMD20-36-P Side Mounted Dipole Antenna - Datasheet
        RFI SMD20-36-P Side Mounted Dipole Antenna - Installation Guide
        Phasing Yagi Antennas - Technical Guide

        Product Specifications

        Brand RFI
        Length (cm) 150
        Width (cm) 20
        Height (cm) 20
        Antenna Application Base Station Antenna
        Antenna Cable Type 9142
        Antenna Features Multi Band Capable, PIM Rated, High Power Multi Channel
        Antenna Port Connectors N (F)
        Antenna Type Side Mounted Dipoles
        Cable Length (m) 0.1
        Construction Welded aluminium with alodined finish
        Coverage Type Directional
        Frequency [MHz] 130-150
        Frequency Band VHF High Band 118-180 MHz
        Horizontal Beamwidth Typically 228? at ? l antenna - mast spacing
        Installation Type External mounting
        Low PIM Yes
        Max Frequency (MHz) 150
        Max Gain (dBd/dBi) 2
        MIMO Support No
        Min Frequency (MHz) 130
        Min Gain (dBd/dBi) 2
        Mount Supported Clamp mount
        Mount Supported - Detailed UCR1, UCR2
        Mounting Area 500mm x 48mm diam.
        No. of Antenna Ports 1
        PIM (3rd, 2 x 20 W) dBc <-150
        Polarisation Vertical
        Power [W] 750
        Technologies Supported VHF
        Termination N female with 9142 cable tail
        Tuned Bandwidth Full. No tuning required
        Vertical Beamwidth Typically 85? at ? l antenna - mast spacing
        VSWR <1.5:1
