RFI COL51-150-P VHF Meander Collinear Antenna 140-150 MHz, 2 dBi, 4.3-10-Female

Name: RFI COL51-150-P VHF Meander Collinear Antenna 140-150 MHz, 2 dBi, 4.3-10-Female
Brand: RFI
SKU: 167015813
Price: 2257.0 AUD

Product form

Brand:

Item ID:

167015813

Export:

Restricted

Shipping:

Please contact us for lead time

Warranty:

Standard Warranty

Product Liability:

Global Insurance Except USA & Canada

Options/MPN:

COL51-150-P

VHF Meanderâ„¢ Collinear Antenna 140-150 MHz - Unity Gain, 4.3-10 specifically designed for wireless applications requiring high performance.

$2,257.00

Product Description

Excellent bandwidth providing full band coverage
Internally DC grounded for lighting protection and reduction of precipitation noise
Low -150 dBc PIM performance and excellent 25 kW PIP rating
Patented Meander PCB design for optimum RF stability and repeatability

MPN	COL51-150-P
Antenna application	Base Station Antenna
Antenna features	Omnidirectional, PIM Rated, PIP Rated
Antenna port connectors	4.3-10 (F)
Antenna type	Collinears, Meander
Brands	RFI
Connector	4.3-10 (F)

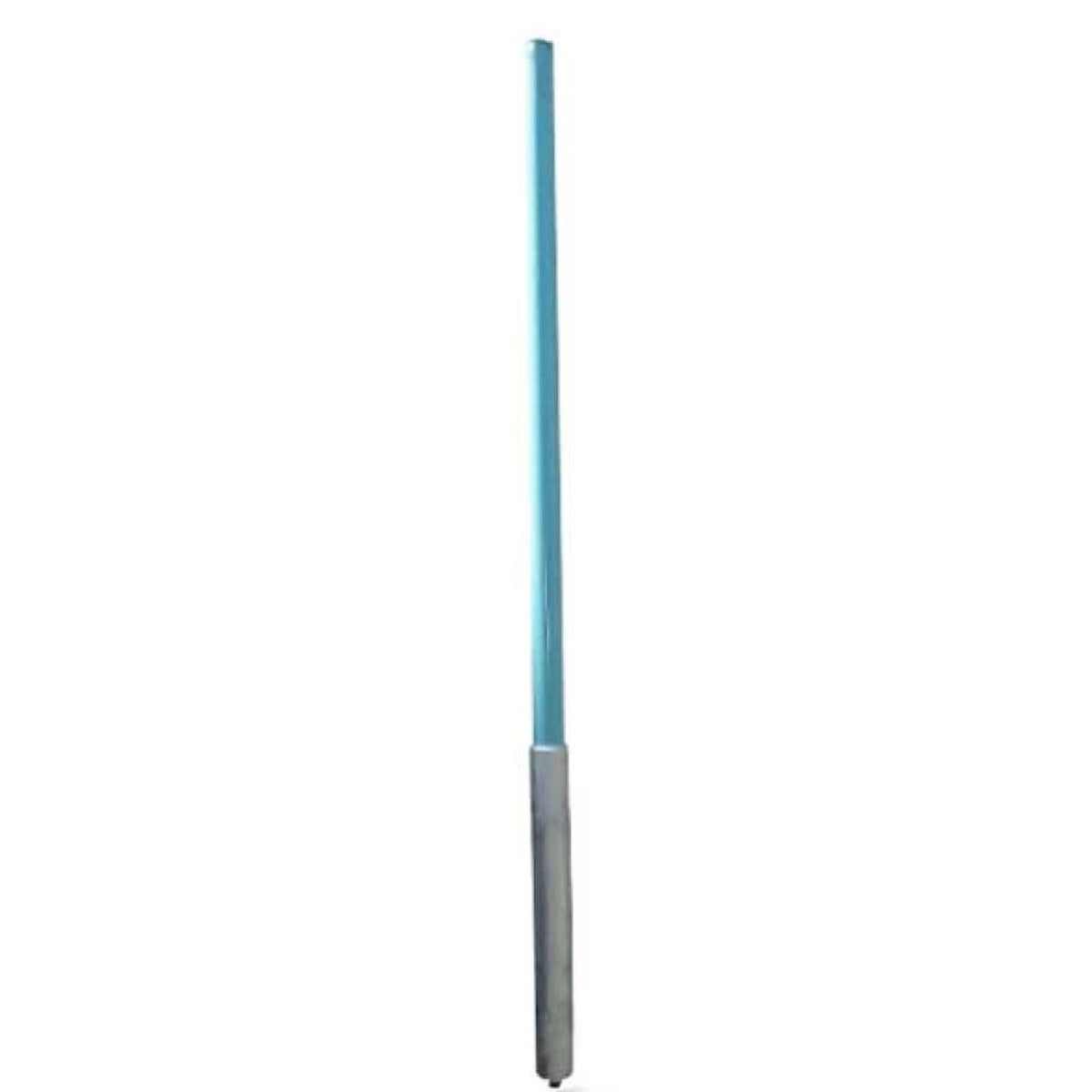

Construction	aluminum mounting tube, Composite fiberglass sky blue radome
Coverage type	Omni-directional
Frequency band	VHF High Band 118-180 MHz
Height	3
Horizontal beamwidth	Omni +/- 0.5dB
Installation type	External mounting
Length	99
Low pim	Yes
Max frequency mhz	150
Max gain dbd dbi	0
Mimo support	No
Min frequency mhz	140
Min gain dbd dbi	0
Mount supported	Clamp mount
Mount supported detailed	UC-114
Mounting area	750mm x 90mm diam. aluminum
No of antenna ports	1
Peak instantaneous power kw	25
Pim 3rd 2x20 w dbc	-150
Polarisation	Vertical
Power w	400
Radome diameter mm	76
Technologies supported	VHF
Termination	4.3-10
Torque nm	67
Tuned bandwidth	Full band
Vertical beamwidth	92?
Vswr	<1.5:1
Width	3
Wind gust km h	240
Wind thrust	188
