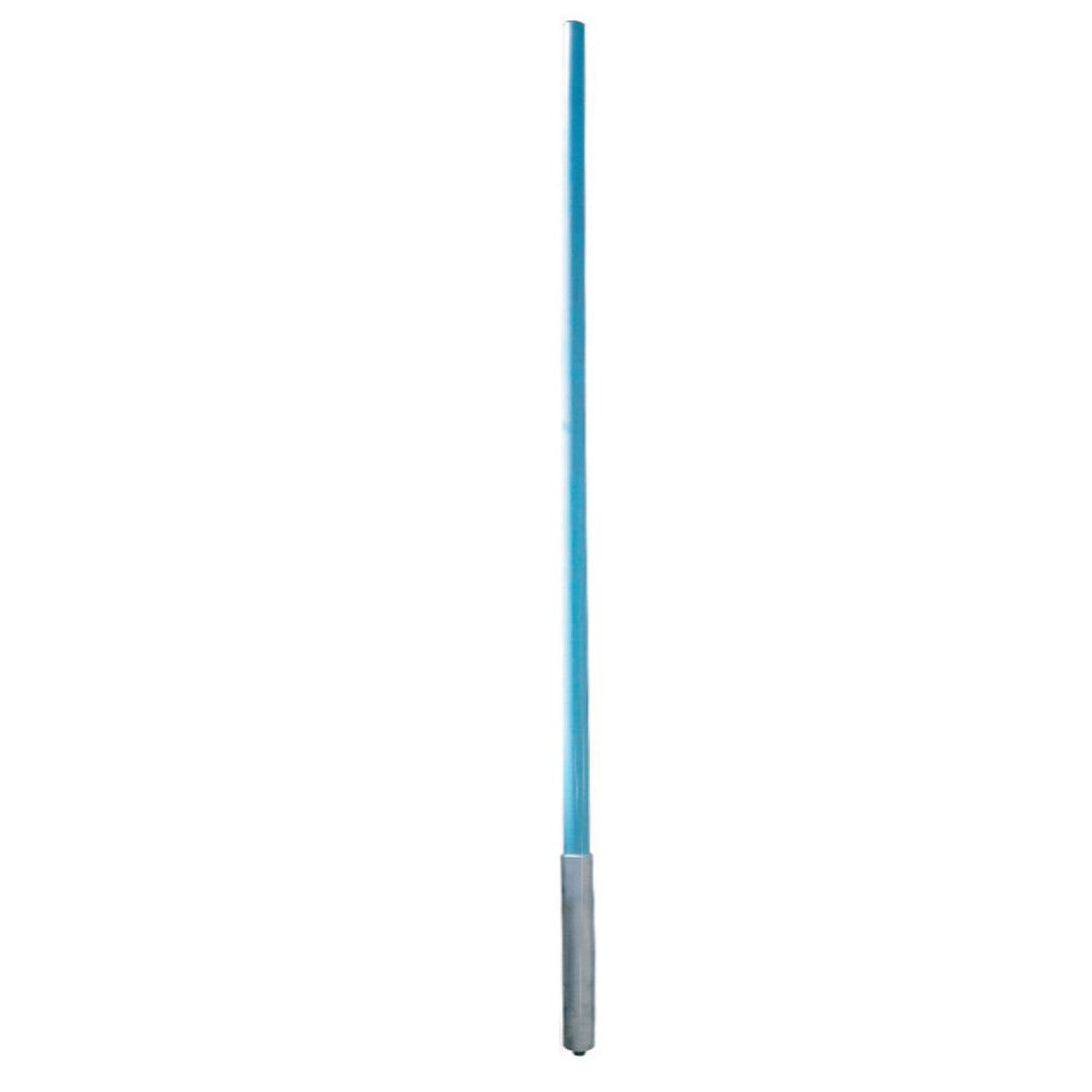

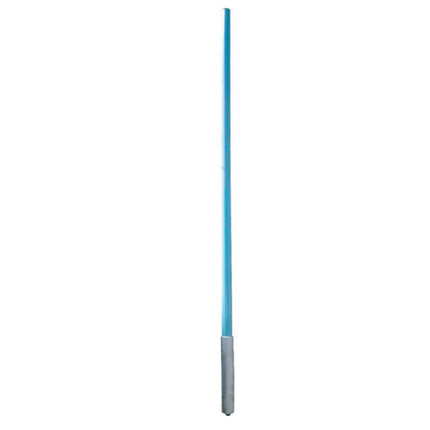

RFI COL53-174-P VHF Meander Collinear Antenna, 162-174 MHz, 4 dBd, 4.3-10-Female

RFI COL53-174-P VHF Meander Collinear Antenna, 162-174 MHz, 4 dBd, 4.3-10-Female

On backorder

Brand:
Item ID:
167015827
Export:
Restricted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
COL53-174-P
Send Request for Quote (RFQ) Discount Offers
VHF Meanderâ„¢ Collinear Antenna 162-174 MHz - 4 dBd; 4.3-10 - Internally DC grounded for lighting protection and reduction of precipitation noise.
Regular price $2,698.00
Regular price $0.00 Sale price $2,698.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

VHF Meanderâ„¢ Collinear Antenna 162-174 MHz - 4 dBd; 4.3-10

Excellent bandwidth providing full band coverage Internally DC grounded for lightning protection and the reduction of precipitation noise Patented Meander PCB design for optimum RF pattern stability Industry leading PIM ratings (-150 dBc) providing low IM and low noise characteristics for optimum network performance Excellent Peak Instantaneous Power(PIP) rating (25 kW) The patented Meander collinear element design allows multiple half wave elements to be stacked without the variations in cable lengths and mechanical joints which have typified the construction techniques in high gain collinear antennas. With the dipole elements being printed on a single sided PCB the susceptibility to passive intermodulation is practically eliminated. Placing the elements on a board not only controls PIM but also removes manufacturing variations so that each and every antenna will provide the same pattern, tilt and VSWR characteristics over its operating bandwidth.

Documents:

RFI COL53 Antenna - Datasheet

Product Specifications

Add length 4.8 m
MPN COL53-174-P
Antenna application Base Station Antenna
Antenna features Omnidirectional, PIM Rated, PIP Rated
Antenna port connectors 4.3-10 (F)
Antenna type Collinears, Meander
Brands RFI
Connector 4.3-10 (F)
Construction aluminum mounting tube, Composite fiberglass sky blue radome
Coverage type Omni-directional
Frequency band VHF High Band 118-180 MHz
Height 3
Horizontal beamwidth Omni +/- 0.5dB
Installation type External mounting
Length 99
Low pim Yes
Max frequency mhz 174
Max gain dbd dbi 4
Mimo support No
Min frequency mhz 162
Min gain dbd dbi 4
Mount supported Clamp mount
Mount supported detailed UC-114
Mounting area 750mm x 90mm diam. aluminum
No of antenna ports 1
Peak instantaneous power kw 25
Pim 3rd 2x20 w dbc -150
Polarisation Vertical
Power w 400
Radome diameter mm 76
Technologies supported VHF
Termination 4.3-10
Torque nm 839
Tuned bandwidth Full band
Vertical beamwidth 17?
Vswr <1.5:1
Width 3
Wind gust km h 240
Wind thrust 500
