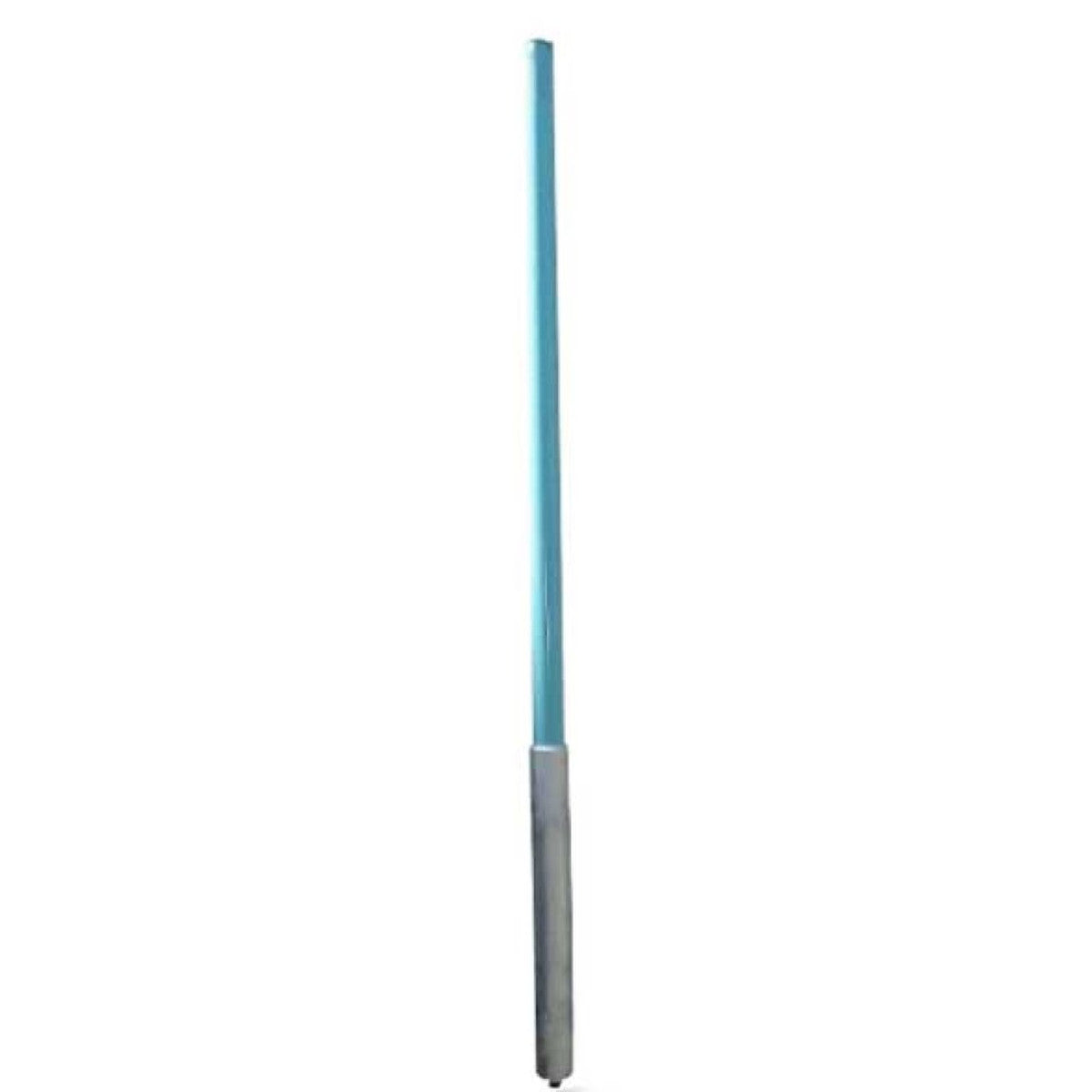

RFI COL51-174-P VHF Meander Collinear Antenna, 162-174 MHz, 2 dBi, 4.3-10-Female

    RFI COL51-174-P VHF Meander Collinear Antenna, 162-174 MHz, 2 dBi, 4.3-10-Female

      Product form

      VHF Meander Collinear Antenna 162-174 MHz - Unity Gain, 4.3-10 is Internally DC grounded for lighting protection and reduction of precipitation noise.

      Brand
      RFI
      Export
      Restrictedwhat this means
      Item ID
      167015819
      MPN
      COL51-174-P
      Shipping
      Please contact us for lead time
      Standard Warranty Global Insurance Except USA & Canada

      $2,605.82

      Bulky item. Export orders may incur additional charges — ask us for a quote.

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay
        ACMA licensing for HF, VHF and UHF radio: class licence, CB or an assigned land mobile licence — and how each shapes your antenna design Design guide ACMA licensing for HF, VHF and UHF radio: class licence, CB or an assigned land mobile licence — and how each shapes your antenna designBefore you buy a two-way radio system, know which of the three ACMA paths it will run under: a class licence you never apply...Read the guide

        Product Description

        VHF Meander Collinear Antenna 162-174 MHz - Unity Gain; 4.3-10

        VHF Meander Collinear Antenna 162-174 MHz has Strong Bandwidth Internally DC grounded for lightning protection and reduction of precipitation noise Tightly controlled radiation patterns for optimum coverage Patented Meander PCB design for optimum RF pattern stability Full band coverage Industry leading PIM ratings (-150 dBc) providing low IM and low noise characteristics for optimum performance Peak Instantaneous Power 25 kw The patented Meander collinear element design allows multiple half wave elements to be stacked without the variations in cable lengths and mechanical joints which have typified the construction techniques in high gain collinear antennas. With each dipole element being printed on a single sided PCB the susceptibility to passive intermodulation is practically eliminated. Placing the elements on a board not only controls PIM but also removes manufacturing variations so that each and every antenna will provide the same pattern, tilt and VSWR characteristics over its operating bandwidth.

        Documents:

        RFI COL51 Antenna - Datasheet

        Product Specifications

        Brand RFI
        Length (cm) 250
        Width (cm) 11
        Height (cm) 11
        Antenna Features Omnidirectional, PIM Rated, PIP Rated
        Antenna Port Connectors 4.3-10 (F)
        Antenna Type Collinears, Meander
        Connector 4.3-10 (F)
        Construction aluminum mounting tube, Composite fiberglass sky blue radome
        Coverage Type Omni-directional
        Frequency Band VHF High Band 118-180 MHz
        Horizontal Beamwidth Omni +/- 0.5dB
        Installation Type External mounting
        Low PIM Yes
        Max Frequency (MHz) 174
        Max Gain (dBd/dBi) 0
        MIMO Support No
        Min Frequency (MHz) 162
        Min Gain (dBd/dBi) 0
        Mount Supported Clamp mount
        Mount Supported - Detailed UC-114
        Mounting Area 750mm x 90mm diam. aluminum
        No. of Antenna Ports 1
        Peak Instantaneous POWER Kw 25
        PIM (3rd, 2 x 20 W) dBc -150
        Polarisation Vertical
        Power [W] 400
        Radome Diameter Mm 76
        Technologies Supported VHF
        Termination 4.3-10
        Torque [Nm] 68
        Tuned Bandwidth Full band
        Vertical Beamwidth 82?
        VSWR <1.5:1
        Wind Gust (km/h) 240
        Wind Thrust 189
