RFI BMV-118137 VHF Monocone Antenna, 118-137 MHz, 2.1 dBd

    RFI BMV-118137 VHF Monocone Antenna, 118-137 MHz, 2.1 dBd

      Product form
      Brand:
      RFI
      Item ID:
      167015421
      Export:
      Restricted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      BMV-118137
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      VHF Monocone 118-137 MHz - Full Band designed for use in are found in critical communications applications and environments

      $1,133.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
      •  Item available to backorder. Please contact us for lead time.

      • Pay securely! All major cards accepted.

        shop pay

      Product Description

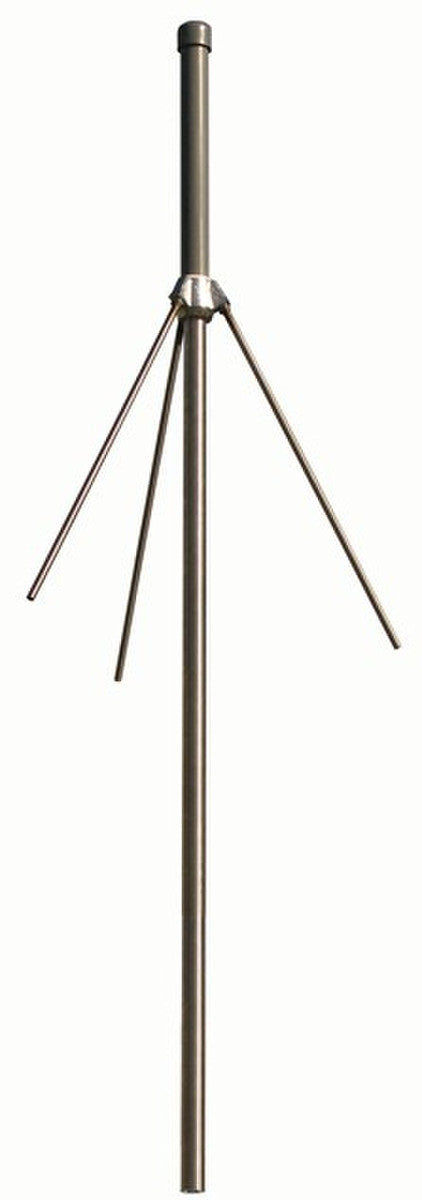

      The BMV-118137 is a stainless steel, broadband, unity gain, monocone antenna offering full band coverage for the VHF Air Band. The design is rugged and long lasting, with stainless steel radials which screw into a heavy duty chrome plated hub, the design will withstand even the most enduring and extreme environments.

      Features:

      The antennas are DC grounded for superior lightning protection and the reduction of precipitation static noise.
      • Stainless steel rugged design
      • Full band design
      • Easy to assemble.
      • Quick deployment
      • Broad vertical beamwidth for excellent null fill
      • Shipped disassembled for ease of handling

      Documents:

      RFI BMV-118137 Monocone Antenna - Datasheet RFI BMV VHF Monocone Antenna - Installation Guide

      Product Specifications

      MPN BMV-118137
      Antenna application Base Station Antenna
      Antenna features Omnidirectional
      Antenna port connectors N (F)
      Antenna type Ground Planes
      Brands RFI
      Construction Stainless steel construction, with abs radome
      Coverage type Omni-directional
      Frequency mhz 118-136
      Height 3
      Horizontal beamwidth Omni +/-0.5dB
      Installation type External mounting
      Length 99
      Low pim No
      Max frequency mhz 137
      Max gain dbd dbi 2.1
      Mimo support No
      Min frequency mhz 118
      Min gain dbd dbi 2.1
      Mount supported Clamp mount
      Mount supported detailed UC1
      Mounting area 500mm x 38mm diam. aluminium
      No of antenna ports 1
      Polarisation Vertical
      Power w 200
      Technologies supported VHF
      Termination N female
      Torque 160km h nm 45
      Torque nm 102
      Tuned bandwidth Full band
      Vertical beamwidth 90?
      Vswr <1.5:1
      Width 3
      Wind gust km h 240
      Wind load 160km h n 240
      Wind thrust 145
