RFI BMV-148174 VHF Monocone Antenna, 148-174 MHz, 2.1 dBd

    RFI BMV-148174 VHF Monocone Antenna, 148-174 MHz, 2.1 dBd

      Product form
      Brand:
      RFI
      Item ID:
      167015423
      Export:
      Restricted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      BMV-148174
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      VHF Monocone 148-174 MHz - Full Band are designed for use in are found in critical communications applications and environments such as defence and ground

      $1,133.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
      •  Item available to backorder. Please contact us for lead time.

      • Pay securely! All major cards accepted.

        shop pay

      Product Description

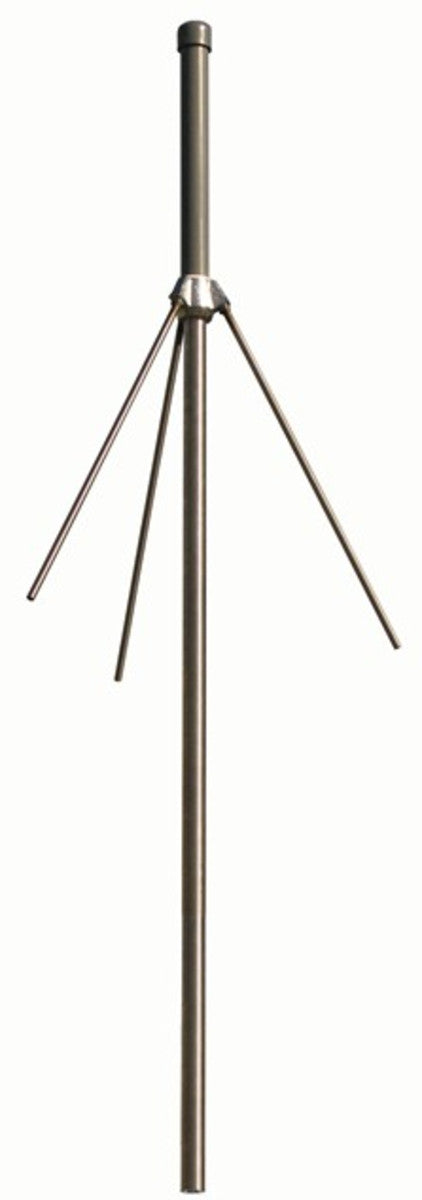

      The BMV-148174 is a stainless steel, broadband, unity gain, monocone antenna offering full band coverage for the VHF high band. The design is rugged and long lasting, with stainless steel radials which screw into a heavy duty chrome plated hub, the design will withstand even the most enduring and extreme environments.

      Features:

      The antennas are DC grounded for superior lightning protection and the reduction of precipitation static noise.
      • Stainless steel rugged design
      • Full band design
      • Easy to assemble.
      • Quick deployment
      • Broad vertical beamwidth for excellent null fill
      • Shipped disassembled for ease of handling

      Documents:

      RFI BMV-148174 Monocone Antenna - Datasheet RFI BMV VHF Monocone Antenna - Installation Guide

      Product Specifications

      MPN BMV-148174
      Antenna application Base Station Antenna
      Antenna features Omnidirectional
      Antenna port connectors N (F)
      Antenna type Ground Planes
      Brands RFI
      Construction Stainless steel construction, with abs radome
      Coverage type Omni-directional
      Frequency band VHF High Band 118-180 MHz
      Frequency mhz 118-136
      Height 3
      Horizontal beamwidth Omni +/-0.5dB
      Installation type External mounting
      Length 99
      Low pim No
      Max frequency mhz 174
      Max gain dbd dbi 2
      Mimo support No
      Min frequency mhz 148
      Min gain dbd dbi 2
      Mount supported Clamp mount
      Mount supported detailed UC1
      Mounting area 500mm x 38mm diam. aluminium
      No of antenna ports 1
      Polarisation Vertical
      Power w 200
      Technologies supported VHF
      Termination N female
      Torque 160km h nm 45
      Torque nm 45
      Tuned bandwidth Full band
      Vertical beamwidth 90?
      Vswr <1.5:1
      Width 3
      Wind gust km h 240
      Wind load 160km h n 240
      Wind thrust 100
