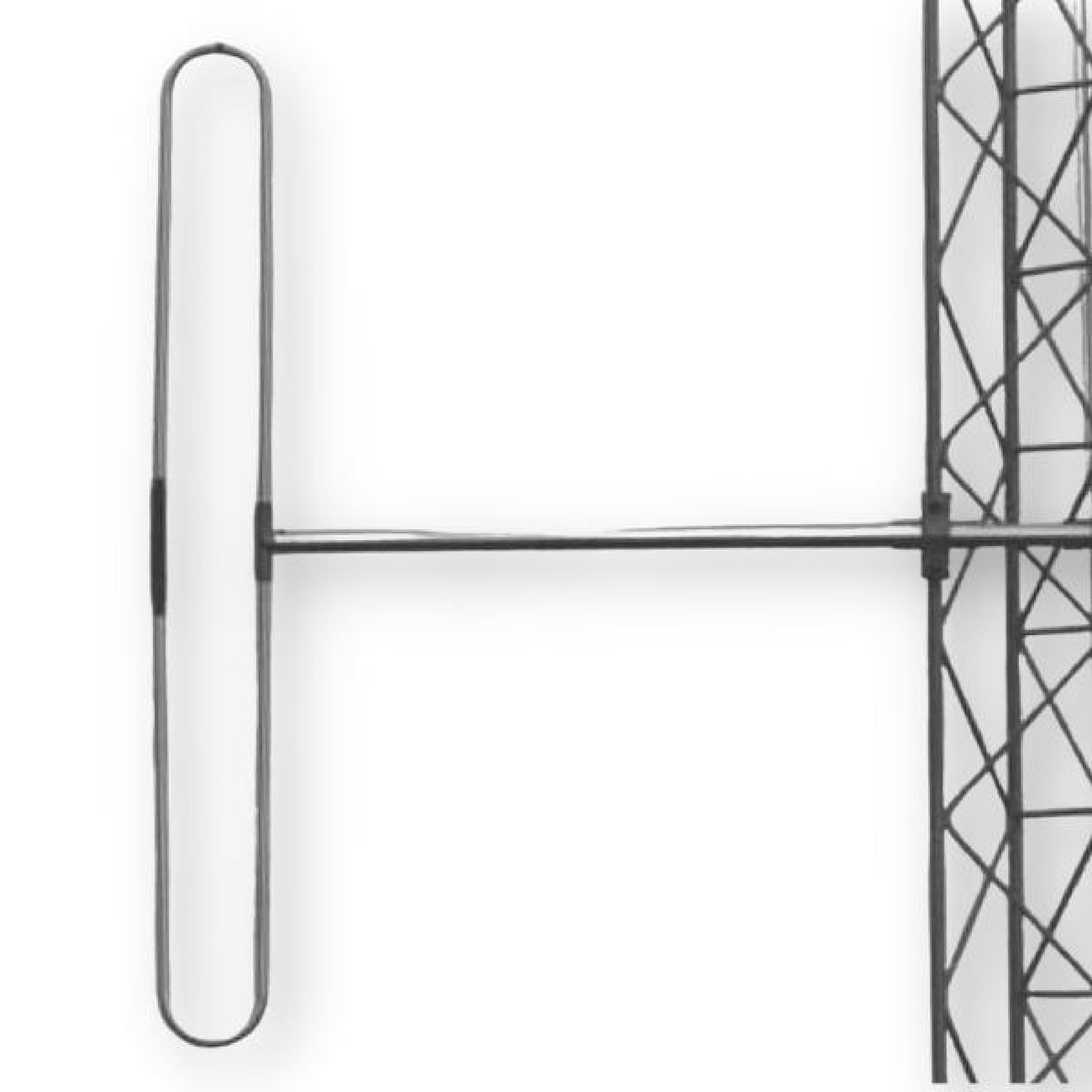

RFI SMD1-99 VHF Side Mounted Dipole Antenna, 66-108 MHz, 2 dBi - Custom Tuned

    RFI SMD1-99 VHF Side Mounted Dipole Antenna, 66-108 MHz, 2 dBi - Custom Tuned

      Product form
      Brand:
      RFI
      Item ID:
      167016081
      Export:
      Restricted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      SMD1-99
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      VHF Side Mounted Dipole 66-108 MHz Custom Tuned, can be mounted in dual arrays for 3 dB gain, or four-stack arrays for 6dB gain over a single dipole.

      $551.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
      •  Item available to backorder. Please contact us for lead time.

      • Pay securely! All major cards accepted.

        shop pay

      Product Description

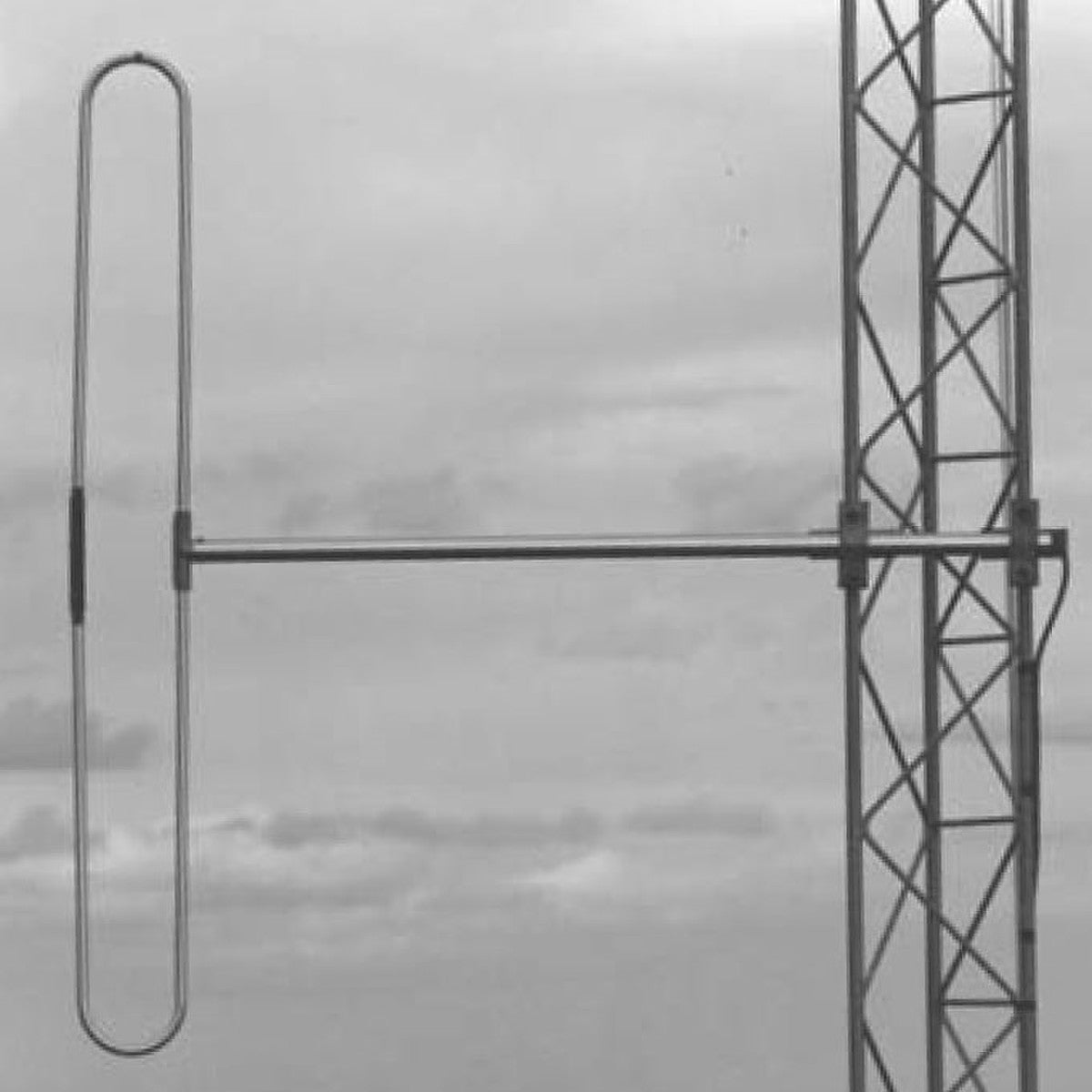

      VHF Side Mounted Dipole 66-108 MHz Custom Tuned

      The SMD12, is a ruggedised antenna featuring extremely heavy walled tubing, all welded alodined aluminium construction and a black epoxy coating to aid in solar heat retention. The SMD14 is a stainless steel version and is ideal in corrosive marine environments. All of the antennas are electrically identical.

      Features:

      • Can be phased to provide 3dBd or 6dBd gain in a variety of patterns to suit specific requirements. An extensive range of phasing harnesses available.
      • Full bandwidth coverage for both single antennas and phased arrays
      • ideal in community sites
      • Ruggedised and stainless steel versions available
      • Low PIM models available
      • DC grounded for lightning protection and dissipation of static noise

      Documents:

      RFI SMD1-99 Side Mounted Dipole Antenna - Datasheet
      Phasing Yagi Antennas - Technical Guide

      Product Specifications

      MPN SMD1-99
      Antenna application Base Station Antenna
      Antenna cable type RG213
      Antenna features Multi Band Capable, High Power Multi Channel
      Antenna port connectors N (F)
      Antenna type Side Mounted Dipoles
      Brands RFI
      Cable length m 0.1
      Construction Thick walled aluminium with cast aluminium hub
      Coverage type Directional
      Frequency band VHF Mid Band 66-88 MHz
      Frequency mhz 66-108
      Height 3
      Horizontal beamwidth Typically 260? at ? l antenna - mast spacing
      Installation type External mounting
      Length 99
      Low pim No
      Max frequency mhz 108
      Max gain dbd dbi 1
      Mimo support No
      Min frequency mhz 66
      Min gain dbd dbi 1
      Mount supported Clamp mount
      Mount supported detailed UCR1, UCR2
      Mounting area 300mm x 40mm diam. aluminium
      No of antenna ports 1
      Polarisation Vertical
      Power w 300
      Technologies supported VHF
      Termination N female with RG213 cable tail
      Tuned bandwidth 0.1
      Vertical beamwidth Typically 74? at ? l antenna - mast spacing
      Vswr <1.5:1
      Width 3
      Wind gust km h >240
