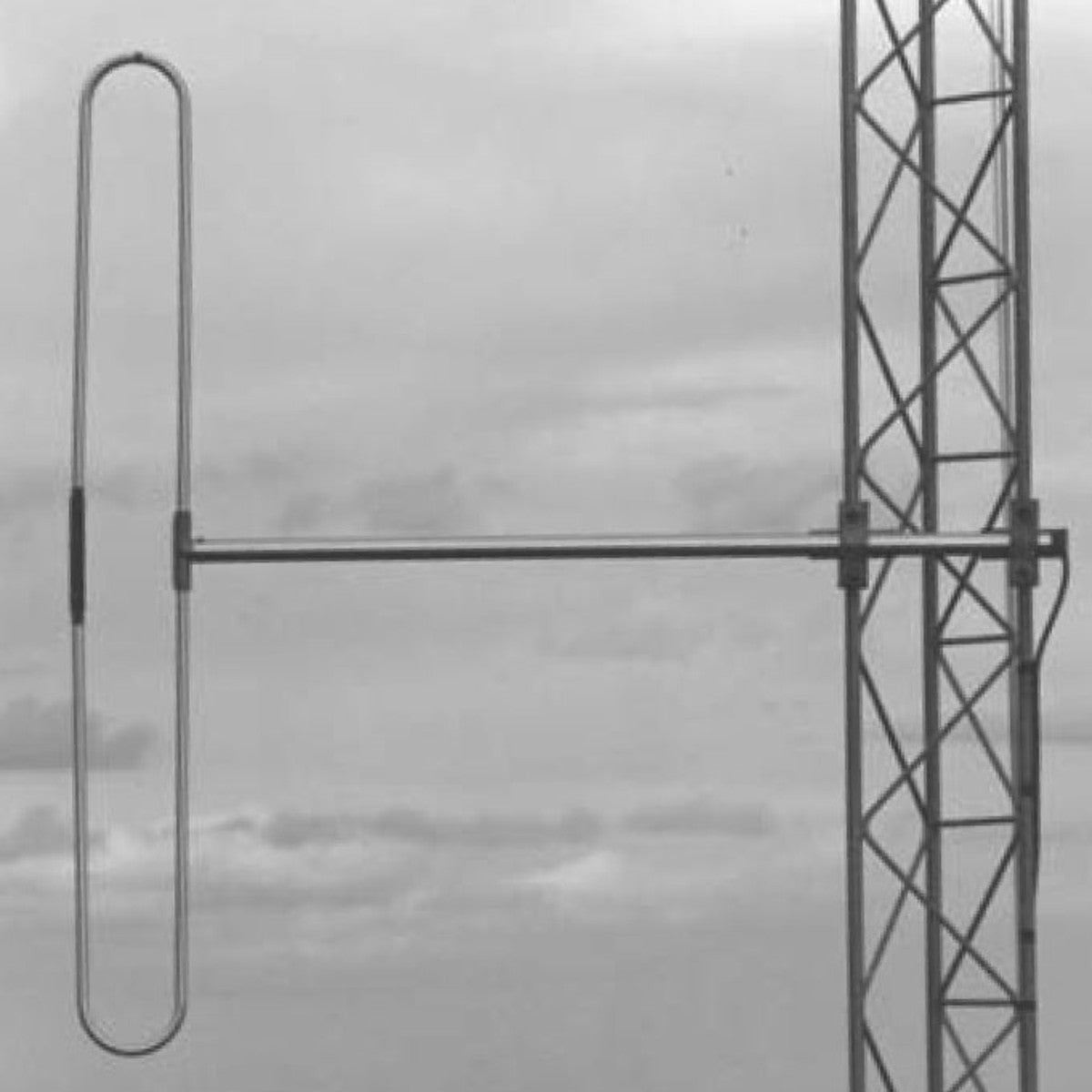

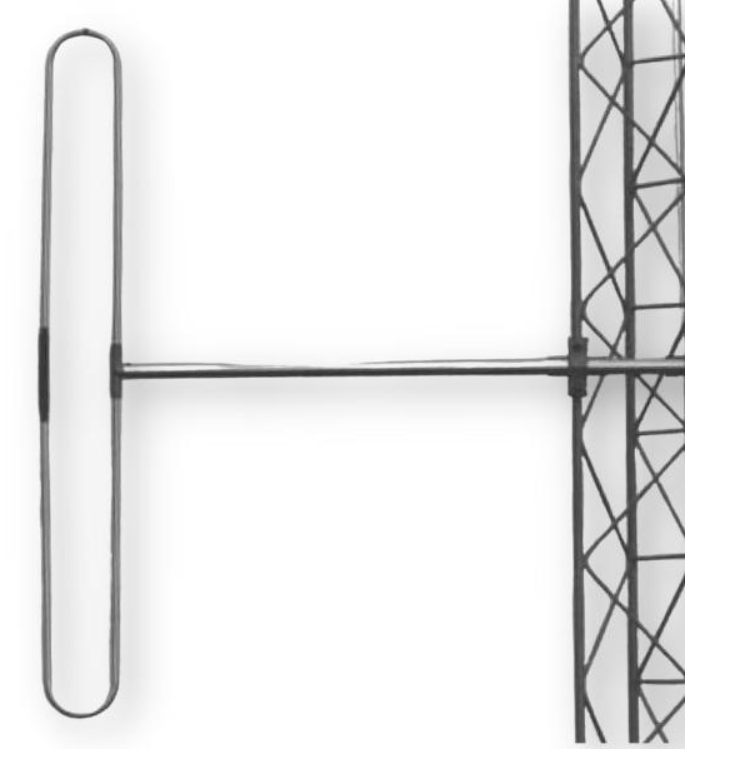

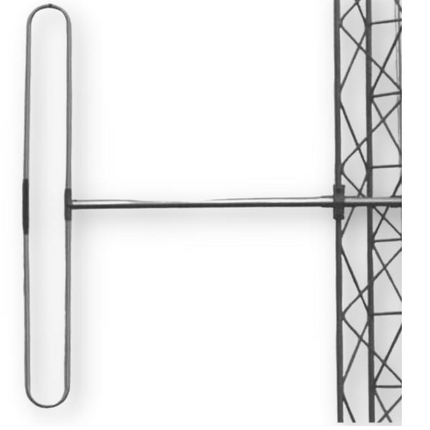

RFI SMD12 VHF Side Mounted Dipole Antenna, 70-85 MHz, 2 dBi

    RFI SMD12 VHF Side Mounted Dipole Antenna, 70-85 MHz, 2 dBi

      Product form

      VHF Side Mounted Dipole 70-85 MHz - 3.0 kg, can be mounted in dual arrays for 3dB gain, or four-stack arrays for 6dB gain over a single dipole.

      Brand
      RFI
      Export
      Restrictedwhat this means
      Item ID
      167016079
      MPN
      SMD12
      Shipping
      Ships out in 1-2 business days
      Standard Warranty Global Insurance Except USA & Canada

      Available

      $489.52

      Bulky item. Export orders may incur additional charges — ask us for a quote.

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay
        ACMA licensing for HF, VHF and UHF radio: class licence, CB or an assigned land mobile licence — and how each shapes your antenna design Design guide ACMA licensing for HF, VHF and UHF radio: class licence, CB or an assigned land mobile licence — and how each shapes your antenna designBefore you buy a two-way radio system, know which of the three ACMA paths it will run under: a class licence you never apply...Read the guide

        Product Description

        VHF Side Mounted Dipole 70-85 MHz - 3.0 kg

        The SMD12, is a ruggedised antenna featuring extremely heavy walled tubing, all welded alodined aluminium construction and a black epoxy coating to aid in solar heat retention.

        Features:

        • Can be phased to provide 3 dBd or 6 dBd gain in a variety of patterns to suit specific requirements. An extensive range of phasing harnesses available.
        • Full bandwidth coverage for both single antennas and phased arrays - ideal in community sites
        • Ruggedised and stainless steel versions available
        • Low PIM models available
        • DC grounded for lightning protection and dissipation of static noise

        Documents:

        RFI SMD12 Side Mounted Dipole Antenna - Datasheet
        Phasing Yagi Antennas - Technical Guide

        Product Specifications

        Brand RFI
        Length (cm) 200
        Width (cm) 20
        Height (cm) 20
        Antenna Application Base Station Antenna
        Antenna Cable Type RG213
        Antenna Features Multi Band Capable, High Power Multi Channel
        Antenna Port Connectors N (F)
        Antenna Type Side Mounted Dipoles
        Cable Length (m) 0.1
        Construction Heavy duty aluminium with black epoxy finish
        Coverage Type Directional
        Frequency [MHz] 70-85
        Frequency Band VHF Mid Band 66-88 MHz
        Horizontal Beamwidth Typically 260? at ? l antenna - mast spacing
        Installation Type External mounting
        Low PIM No
        Max Frequency (MHz) 85
        Max Gain (dBd/dBi) 1
        MIMO Support No
        Min Frequency (MHz) 70
        Min Gain (dBd/dBi) 1
        Mount Supported Clamp mount
        Mount Supported - Detailed UCR1, UCR2
        Mounting Area 300mm x 40mm diam. aluminium
        No. of Antenna Ports 1
        Polarisation Vertical
        Power [W] 300
        Technologies Supported VHF
        Termination N female with RG213
        Tuned Bandwidth Entire band
        Vertical Beamwidth Typically 74? at ? l antenna - mast spacing
        VSWR 240
