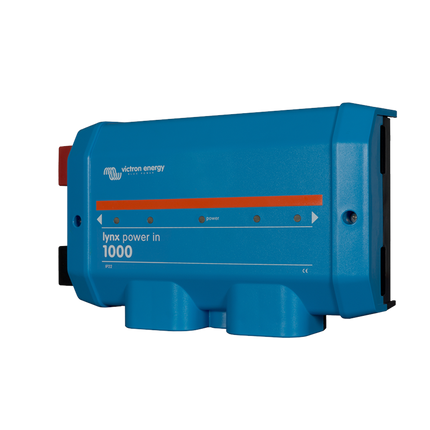

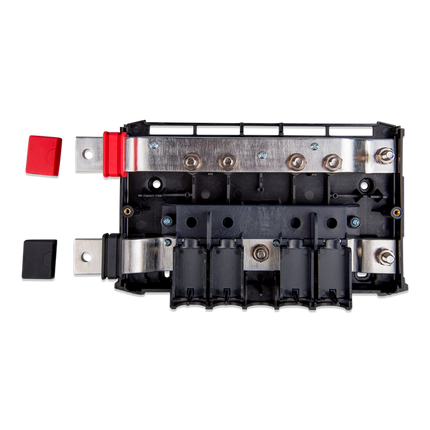

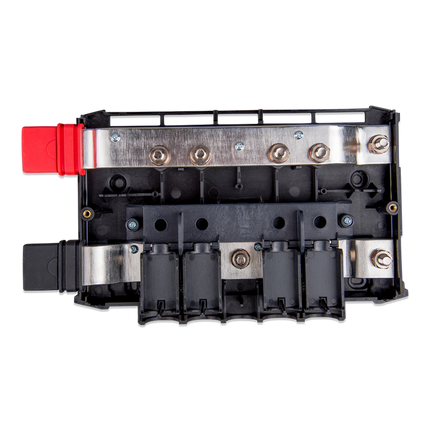

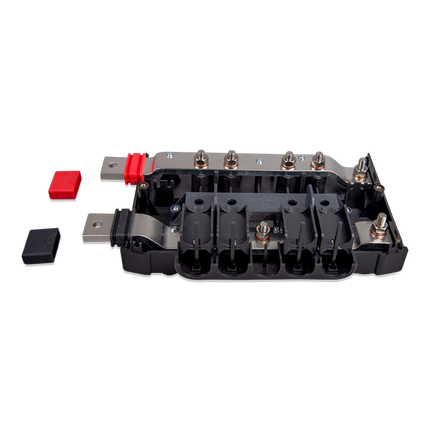

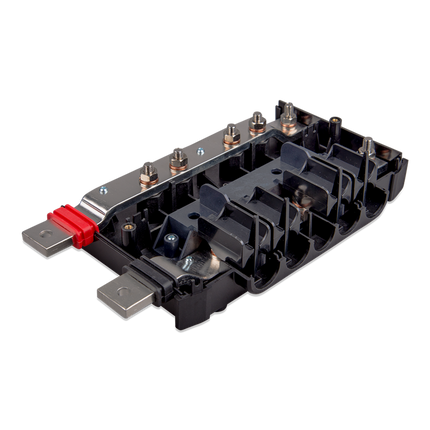

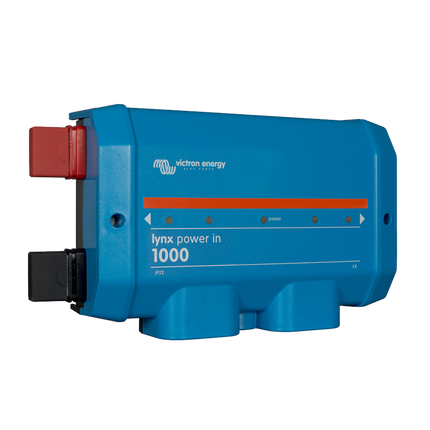

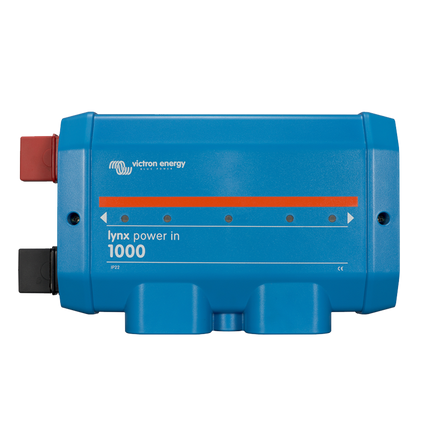

The Victron Lynx Power In is a modular DC bus bar designed to connect batteries and charging devices to a common DC distribution system. It simplifies the connection of DC equipment and batteries to a common line, providing a reliable and efficient power distribution solution. Lynx modules may be connected in series to expand the capacity of the Bus Bar System. The Lynx Power In module features a pair of 30x8 mm negative and positive DC bus bars with 4 x M8 bolts for connecting feeder cables.

Product Features:

• The design allows for easy expansion by connecting multiple modules in series.
• It is rated for a maximum of 1000A DC for demanding applications.
• The unit accommodates cables with an outer diameter of up to 24 mm and have compatibility with a wide range of cable sizes.
• An additional M8 bolt is included to ground the negative bus bar in operational safety.
• It simplifies the connection of batteries and DC equipment to a common line, saving both time and effort.

Application Areas:

• Modular Expansion of Bus Bar Systems
• High-Current DC Systems (Up to 1000A DC)
• Industrial and Commercial Power Systems
• Grounding and Safety Enhancements
• Energy Storage Systems
• Renewable Energy Applications
• Electric Vehicle Charging Infrastructure

In the Box:

• 1x Victron LYN020102000 Lynx Power In

Documents:

Victron Lynx Power In - Manual

Videos:

Victron Lynx Power In
