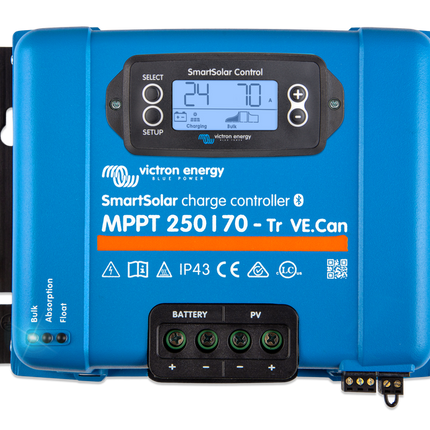

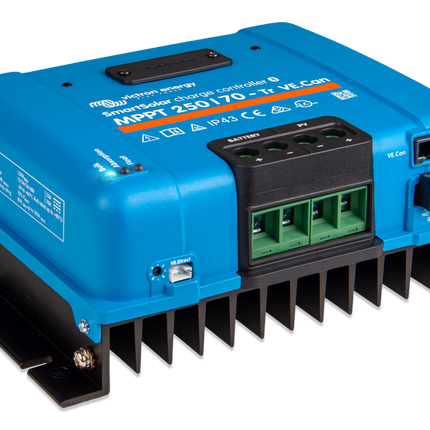

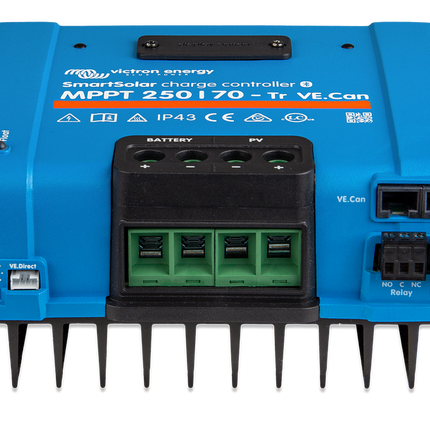

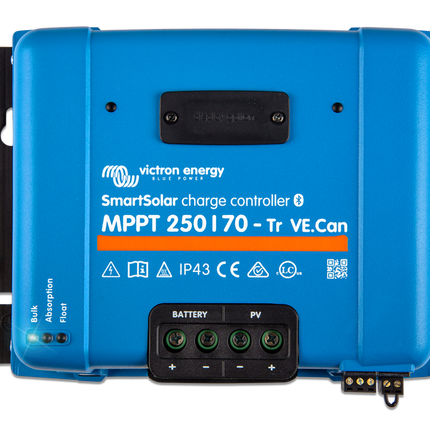

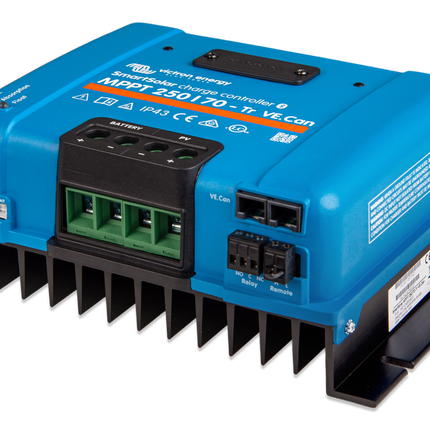

Victron SmartSolar MPPT Regulator, 70A, 12-48/250V, +VE.CAN - SCC125070421

Victron SmartSolar MPPT Regulator, 70A, 12-48/250V, +VE.CAN - SCC125070421

Low stock

Brand:
Item ID:
168031263
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
SCC125070421
Send Request for Quote (RFQ)
Victron SmartSolar MPPT regulator suits 12/24/36/48V Batteries, max 250V PV arrays, 70A battery charging, with Screw Terminals includes communications ports for both VE.Direct and VE.CAN in addition to Bluetooth. An optional SmartSolar pluggable display is available, offering a front-mounted screen to view charging information and access setup options conveniently.
Regular price $901.00
Regular price $0.00 Sale price $901.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

Victron SmartSolar MPPT Solar Regulator; 70A 12-48V / 250V; +VE.CAN consist of advanced features which help in maximizing solar efficiency & battery life.

Product Features:

  • The solar regulator gathers energy from solar panels and efficiently stores it in batteries.
  • The device can be programmed via Bluetooth to work with a wide range of batteries.
  • MPPT technology continuously monitors solar module voltage and current output.
  • The regulator supports 12V, 24V, 36V, and 48V battery systems, and it automatically adjusts the correct voltage level.
  • The VE.CAN version allows daisy-chaining multiple units using a CAN-bus connection.
  • It is compatible with GX controllers through an RJ45 communication link.
  • Bluetooth connectivity is built-in, allowing wireless setup, real-time configuration using the VictronConnect App.
  • Remote monitoring and control are possible by integrating the regulator with GX controllers.

Application Areas:

  • Large off-grid and hybrid solar systems
  • Commercial solar power installations
  • Industrial energy storage systems
  • RV, marine, and mobile solar systems
  • Telecommunication and surveillance solar setups
  • Battery backup and emergency power systems
  • Smart homes and remote monitoring-ready environments

In the Box:

  • Victron SmartSolar MPPT Solar Regulator +VE.CAN
  • Integrated terminal block connectors

Documents:

Victron SCC125070421 SmartSolar Regulator - Datasheet Victron SCC125070421 SmartSolar Regulator - User Manual

Videos:

How to change MPPT settings using Bluetooth?
