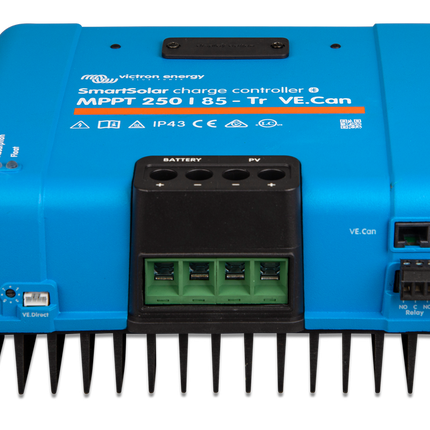

Victron SmartSolar MPPT Regulator, 85A, 12-48/250V, +VE.CAN - SCC125085411

Victron SmartSolar MPPT Regulator, 85A, 12-48/250V, +VE.CAN - SCC125085411

Low stock

Brand:
Item ID:
168031264
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
SCC125085411
Send Request for Quote (RFQ)
Victron SmartSolar MPPT regulator suits 12/24/36/48V Batteries, max 250V PV arrays, 85A battery charging, with Screw Terminals that includes communications ports for both VE.Direct and VE.CAN in addition to Bluetooth. An optional SmartSolar pluggable display is available. This front-mounted screen displays essential regulator, solar, and battery information, and provides programming options for added convenience.
Regular price $969.00
Regular price $0.00 Sale price $969.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

Victron SmartSolar MPPT Solar Regulator; 85A 12-48V / 250V; +VE.CAN consist of advanced features which help in maximizing solar efficiency & battery life.

Product Features:

  • The solar regulator gathers energy from solar panels and efficiently stores it in batteries.
  • The SmartSolar regulator can be programmed via Bluetooth to work with a variety of batteries.
  • MPPT technology continuously monitors solar module voltage and current output.
  • The regulator supports high input solar voltage and automatically detects and manages battery voltage ranging from 12V to 48V for optimal charging.
  • The VE.CAN model regulators support daisy-chaining multiple units via a CAN-bus link.
  • The device is compatible with GX controllers through an RJ45 communications link into broader systems.
  • Bluetooth connectivity enables pairing with smartphones using the VictronConnect App.
  • Remote monitoring and control are made possible by integrating the regulator with GX controllers and an internet connection.

Application Areas:

  • Large off-grid and hybrid solar systems
  • Commercial solar power installations
  • Industrial energy storage systems
  • RV, marine, and mobile solar systems
  • Telecommunication and surveillance solar setups
  • Battery backup and emergency power systems
  • Systems requiring high voltage and current handling
  • Smart homes and remote monitoring-ready environments

In the Box:

  • Victron SmartSolar MPPT Solar Regulator +VE.CAN
  • Integrated terminal block connectors

Documents:

Victron SCC125085411 SmartSolar Regulator - Datasheet Victron SCC125085411 SmartSolar Regulator - User Manual

Videos:

How to change MPPT settings using Bluetooth?
