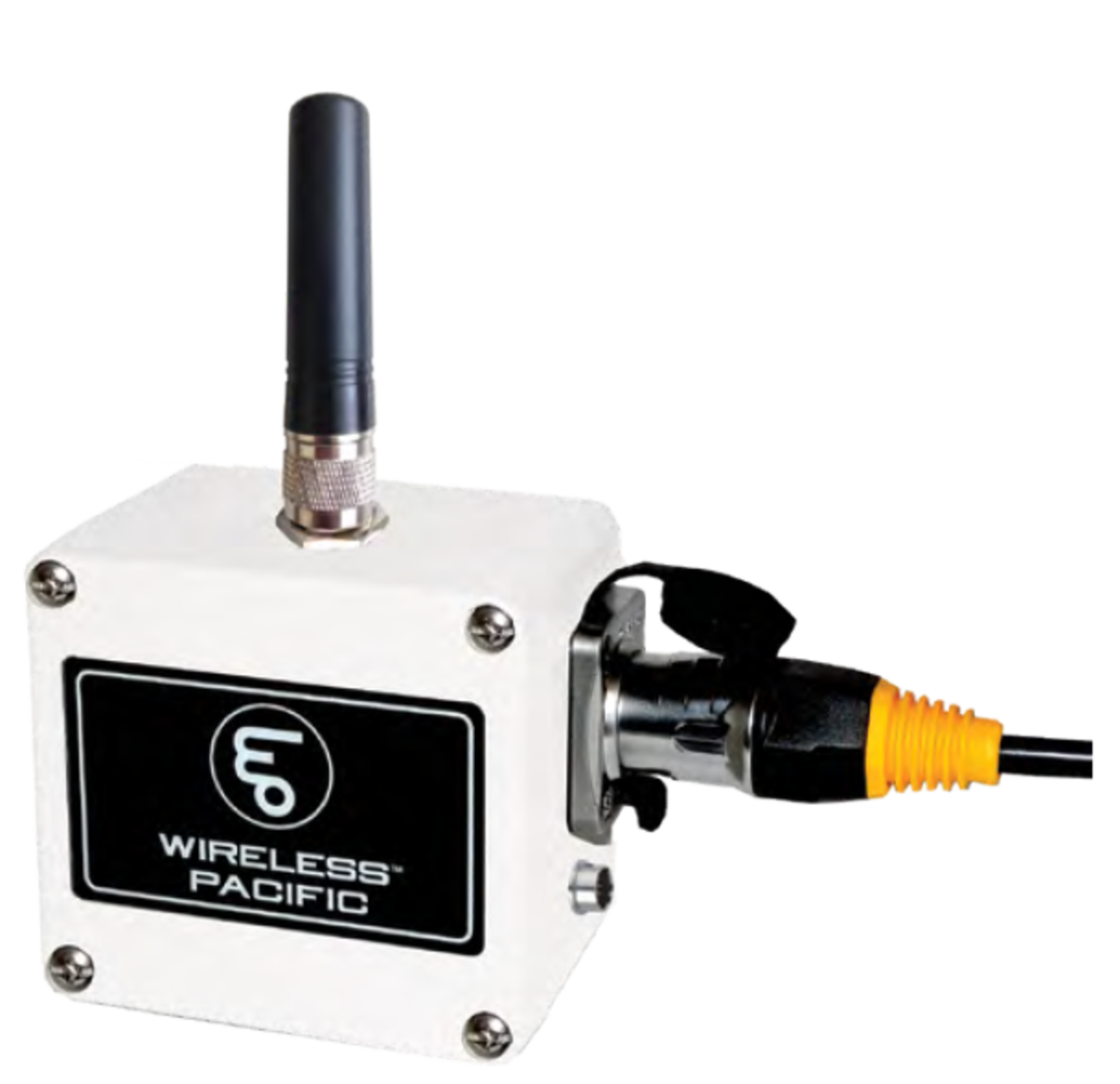

The X10DR XRTG-EX2 Elite Series Roof Top Gateway (GEN2) is designed to provide extended range and improved in-building coverage by relocating the gateway externally. This unique version of the Elite Gateway is housed in an IP55-rated weatherproof enclosure, making it ideal for roof, light rack, or similar external mounting.
Product Features:
- The XRTG-EX2 gateway is designed to operate in the 2.4 GHz band, where coaxial cable losses can be significant.
- It repackages the Elite Gateway electronics into a weatherproof IP55-rated housing for external mounting.
- The external mounting allows for unobstructed placement, achieving range in excess of 700 meters in open environments.
- It provides improved in-building penetration compared to standard internally mounted gateways.
- Connection is made via a 5.2-meter shielded Cat 6 cable (XRTC-5.2) with a 6.0 mm outer diameter, similar to LMR200 coax.
- Both ends of the cable are pre-terminated for simplified installation, with replacement RJ45 plugs available if modification is needed.
- Compatible with IP65-rated bulkhead RJ45 connectors for watertight cable entry into vehicle cabins.
- The X10DR Secure Microphone charges using the X10DRMC mobile charger, which is mechanically similar to the standard Elite gateway cradle.
- Handset pairing is done by accessing the three internal pairing pins inside the XRTG housing or using the optional XRPC pairing cradle.
Application Areas:
- The gateway is ideal for installations requiring extended range and enhanced signal penetration.
- It is suitable for external mounting on vehicle roofs, light racks, or similar structures.
- This device is perfect for communication setups where internal gateway placement is limited or less effective.
- It is used in professional environments where reliable and long-range wireless microphone operation is essential.
In the Box:

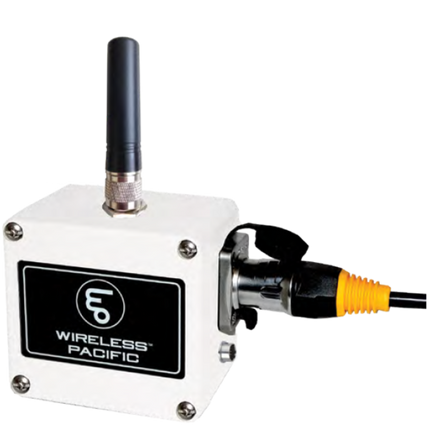

- 1x X10DR XRTG-EX2 Elite Series Roof Top Gateway - GEN2
- 1x 5.2m Shielded Cat 6 Cable (XRTC-5.2)
Documents:
X10DR XRTG-EX2 Elite Series Roof Top Gateway - Application Note
