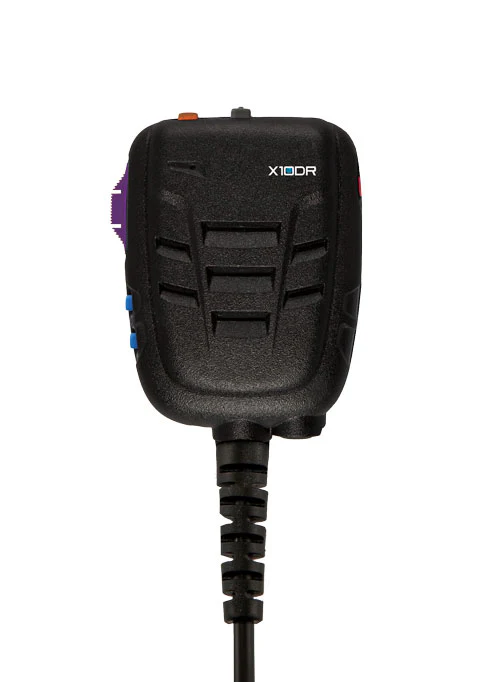

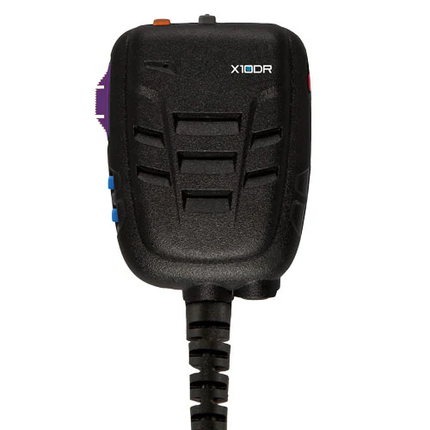

The X10DR Talkback Microphone transforms your X10DR gateway into a vehicle dispatch console, enabling seamless communication between users inside and outside the vehicle. The device allows a user inside the vehicle to maintain full contact with X10DR handset users operating outside while also providing instant access to the host radio network. A top grey control button serves as a toggle for the side PTT button, switching between radio network communication (blue LED) and local talk around communication (green LED). Users can also configure the PTT buttons to match their preferred setup.

• Press once → Side PTT becomes Talk around Transmit (Green LED) for local communication.
• Press again → Side PTT switches to Radio PTT (Blue LED) for network communication.

Designed with backward compatibility, the Talkback Microphone works seamlessly with X10DR Elite, Pro, and Plus Series models. It can even connect to the original first-generation X10DR system using an XIB-TA interface box and necessary cables. The microphone also includes an emergency duress alarm capability, allowing users to trigger an emergency mode on the connected host mobile radio. Additionally, if an X10DR wireless handset user activates their emergency duress button, the Talkback Microphone's LED will briefly glow red, and the X10DR gateway can be programmed to emit an audible alert.

Product Features:

• Instantly switch between talk around mode (local communication) and radio PTT mode (network communication).
• Green LED indicates local talk around mode, while Blue LED indicates radio PTT mode.
• Seamless Integration in series with the X10DR gateway system, allowing a vehicle user to maintain full communication with X10DR handsets outside the vehicle.
• Ensures all wireless and wired handsets hear both sides of the conversation for effective team communication.
• Default side PTT button is for radio transmission, while the top grey Control button toggles between talk around mode and radio PTT mode.
• Turns your X10DR gateway into a vehicle dispatch console, providing dual control head radio functionality without additional installation costs.
• Works with X10DR Elite, Pro, and Plus Series, and can connect to first-generation X10DR via the XIB-TA interface.
• Built for government, law enforcement, commercial, and industrial users.

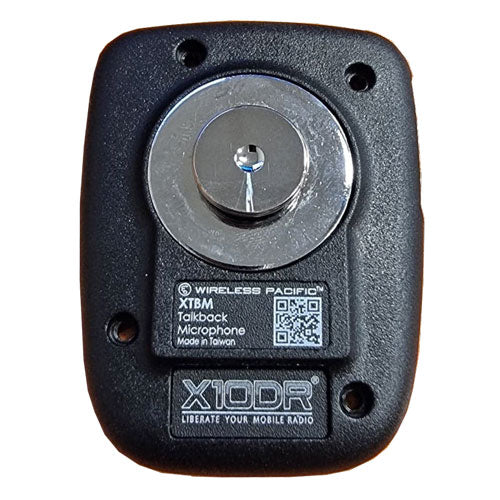

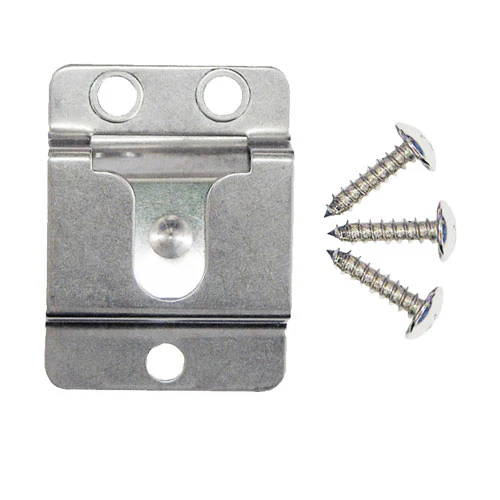

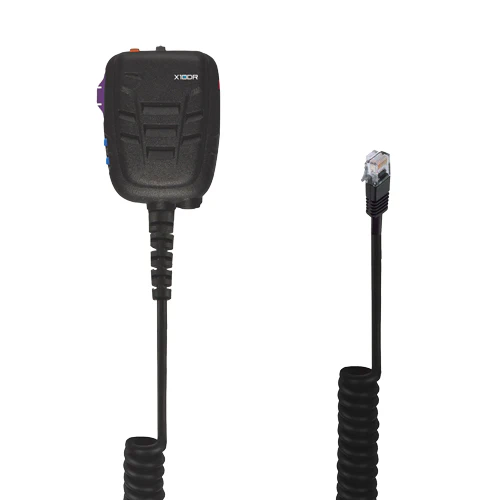

• Featuring IP55 weatherproofing, durable curly cables, and a metal dash-mounting clip.
• Includes a duress button that can trigger an emergency alert on the host radio.
• The LED flashes red when a connected X10DR handset activates its emergency mode, and an audible alert can be programmed to notify all team members.

Application Areas:

• Emergency Services in-vehicle personnel and field operators.
• Public Safety and Law Enforcement in patrol vehicles and command units.
• Fleet and Logistics Operations between drivers and dispatchers.
• Mining and Construction Sites in high-noise industrial environments.

In the Box:

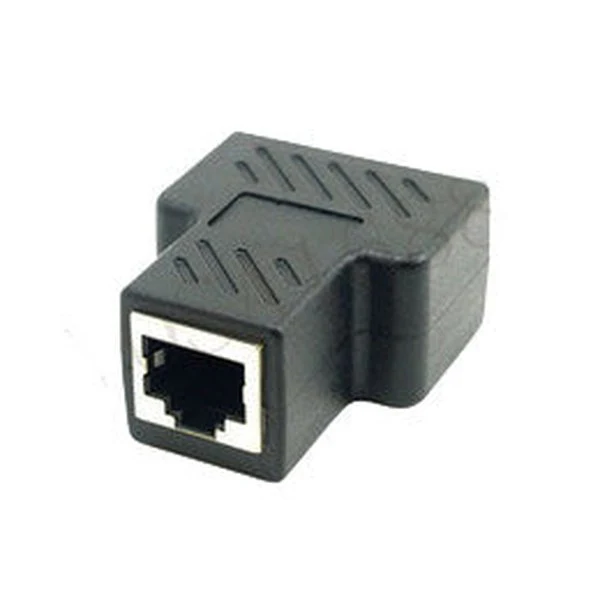

• 1 x XDIA Dual Interface Adapter.

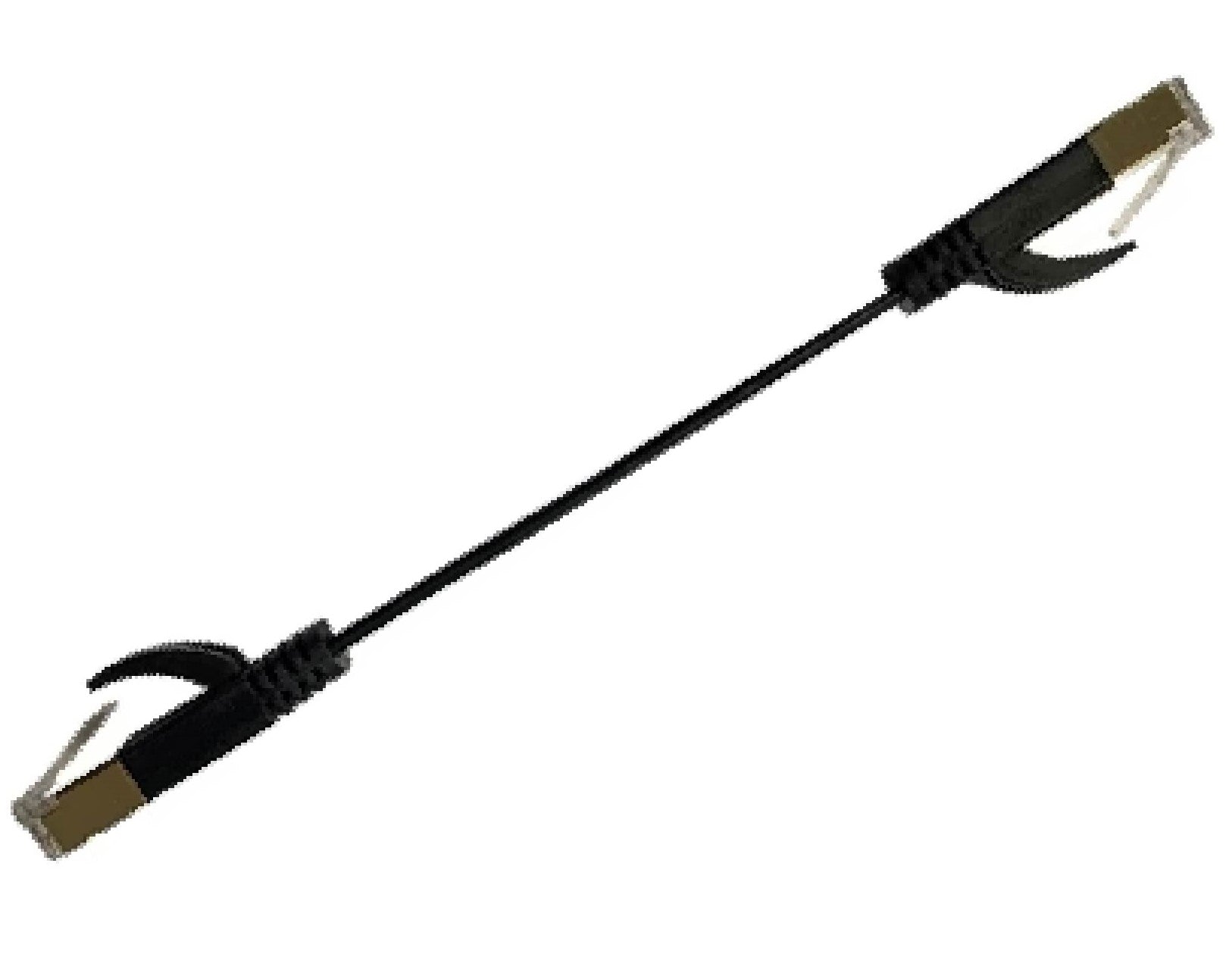

• 1 x XIC-0.15 15cm Interface Cable.
• 1 x X10DR In-Cab Talkback Microphone.

Documents:

X10DR XTBM Talkback Microphone - Datasheet XTBM Talkback Microphone User Guide
