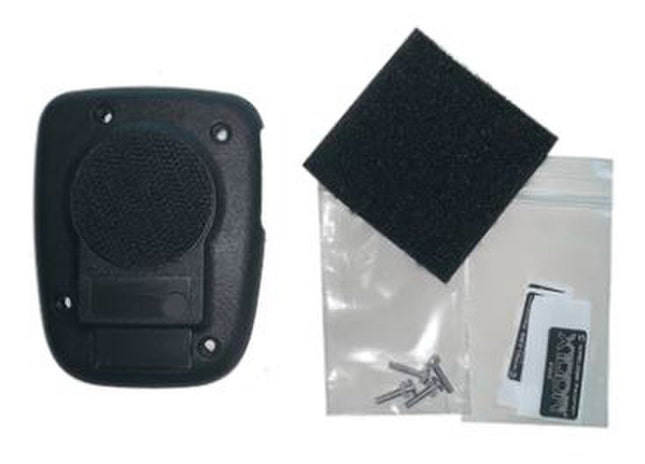

This field retrofit kit provides an alternative clothing attachment and uses Velcro "hook" on the back of the handset. The kit includes a 5x5cm Velcro "eye" patch to be sown to uniform or safety vest etc. Your X10DR will perform best when worn with the antenna protruding above your shoulder.

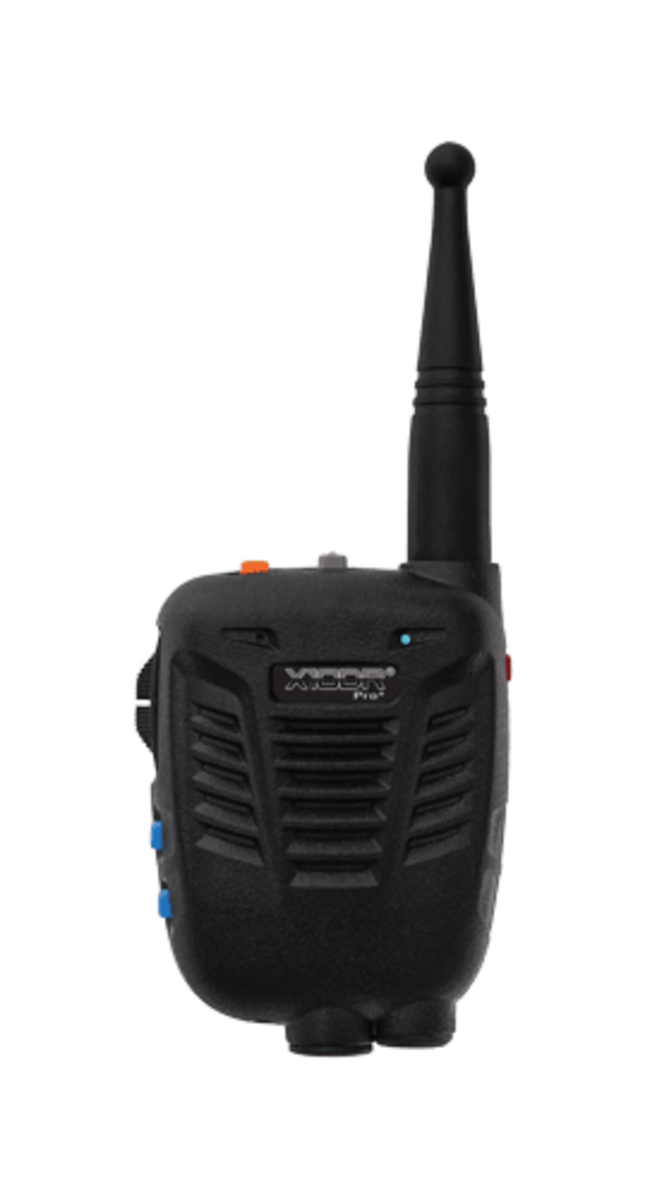

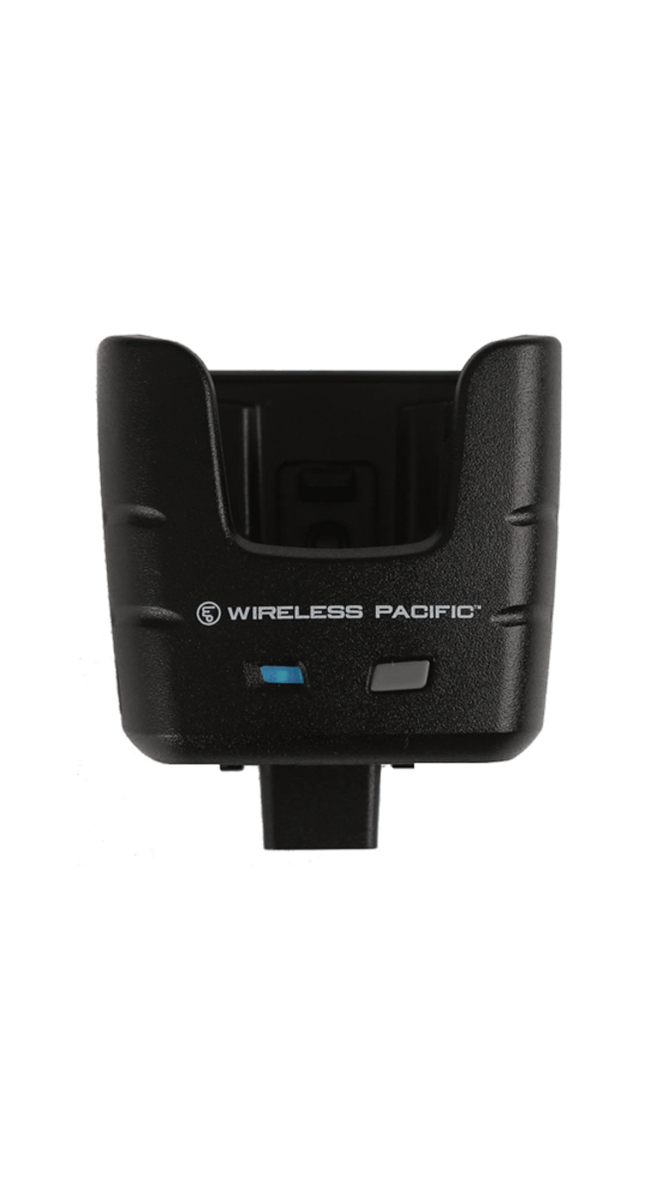

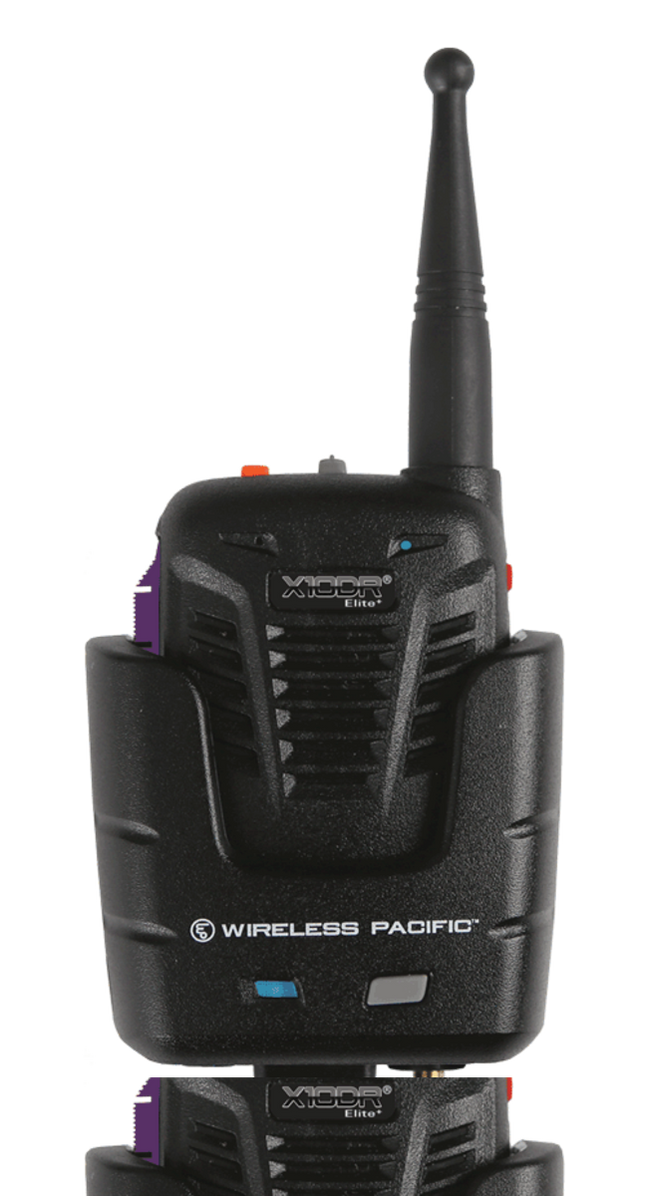

The XEX2 Elite Plus Extra Handset package is intended to be ordered where a 2nd or 3rd handset is desired to be used with an Elite Plus X10DR-EX2 or when ordering XRTG-EX2 or XIVG-EX2 gateway components.

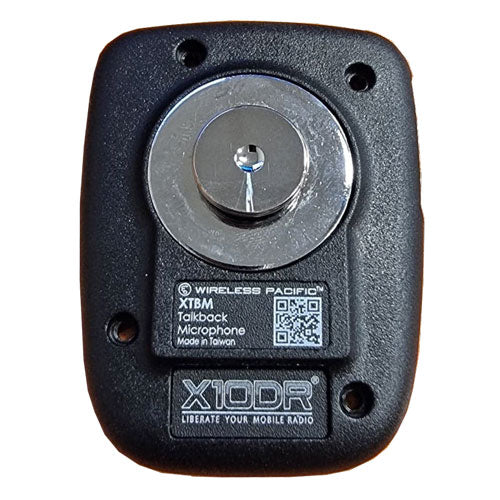

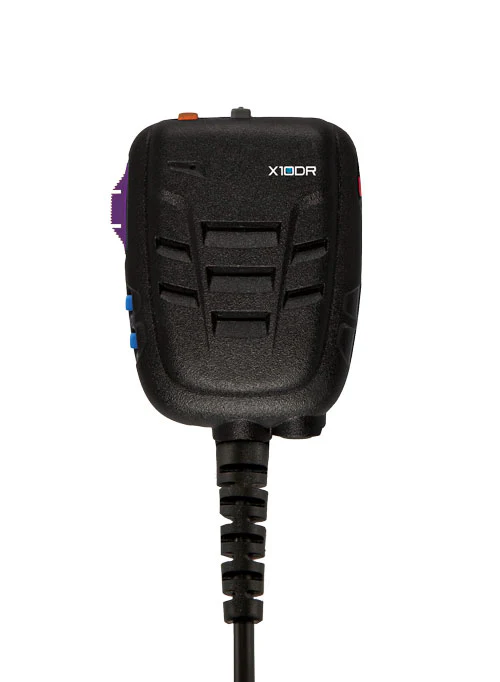

X10DR In-Cab Talkback Microphone is a versatile and intuitive communication device that seamlessly integrates with X10DR wireless handsets and the host radio network. With dual-mode functionality, users can instantly switch between local talk around mode and radio PTT mode, effectively turning the X10DR gateway into a vehicle dispatch console.
By default, the side PTT button is assigned to radio PTT, but it can be pre-assigned as the Talk around PTT button if preferred. In this case, the top grey Control button functions as the radio PTT button. Alternatively, for dynamic communication needs, the top grey Control button can act as a toggle switch. XIC-0.5 (50 cm) interface cableallows the X10DR In-Cab Talkback Microphone to be plugged in series with the XIC from the XCA adaptor connected to the radio.

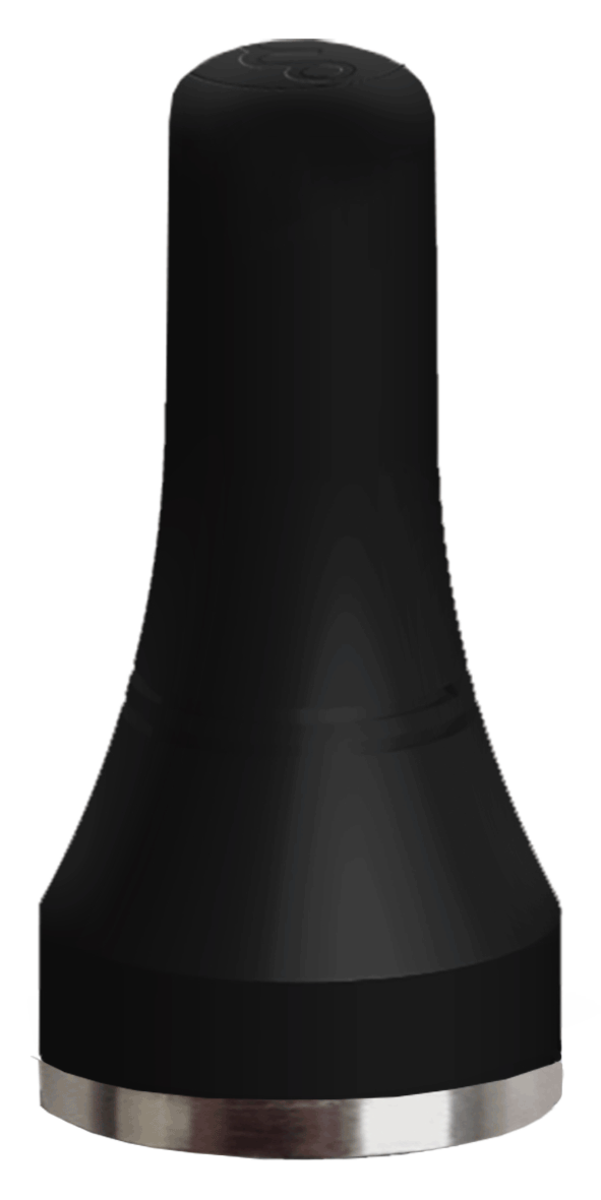

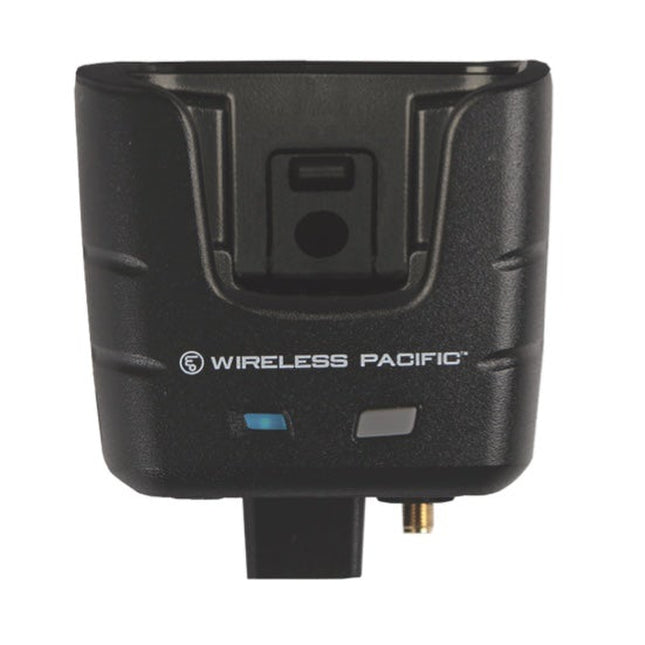

Out of Vehicle Communications System, Elite Plus feature set, IP67 waterproof handset with AES128 Bit Encryption, Emergency, Secondary PTT, Hirose audio port, Enhanced Speaker Mic antenna, 1450 mA Li-Polymer battery, integrated long mounting clip, mobile charging flat interface cable, XMPA antenna kit with 5.2m LMR200 coax, user card and 12 month warranty gateway, 1.5m black & and multi-handset capable mobile charging gateway
The X10DR XCA-M26T Radio Cable is designed to suit Motorola 26 Pin MTM5400 Tetra mobile radios. It provides the necessary connection for integrating X10DR systems with compatible Motorola Tetra models.
The X10DR XCA-V25 Radio Cable is designed to suit Vertex DB25 VX5500 mobile radios. It provides the necessary connection for integrating X10DR systems with compatible Vertex radio models.
This cable is specifically intended for use with XSJB and XHJB junction boxes. It provides a way of providing additional vehicle battery current when more than three X10DRs/ mobile chargers are connected to the one host mobile radio.

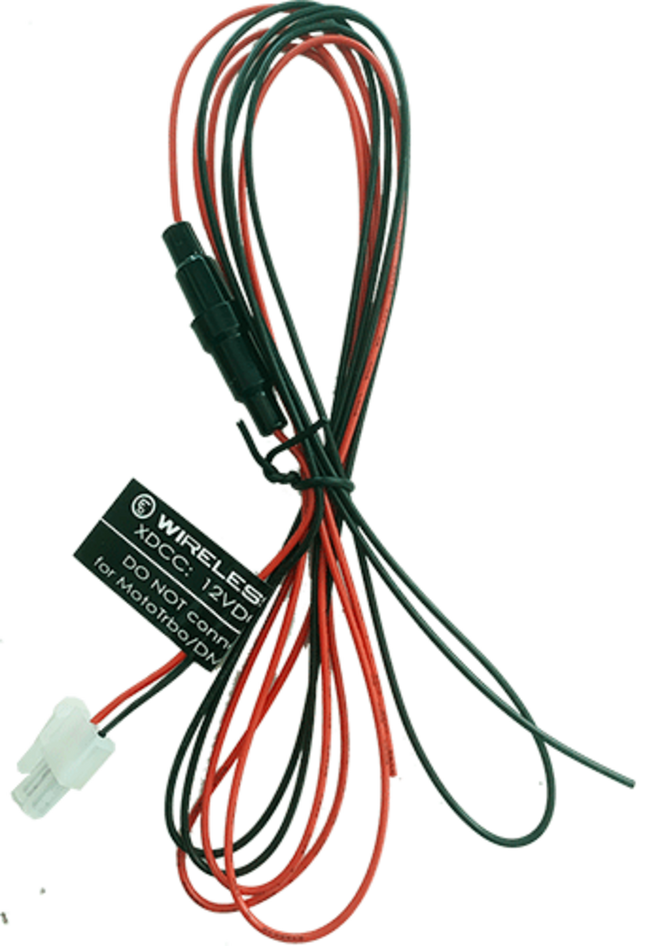

The X10DR XDCC-RJ Fused Power Cable is a 1.5-meter, 12 VDC cable designed to support mobile charger installations where additional power is required or no host mobile radio is connected.

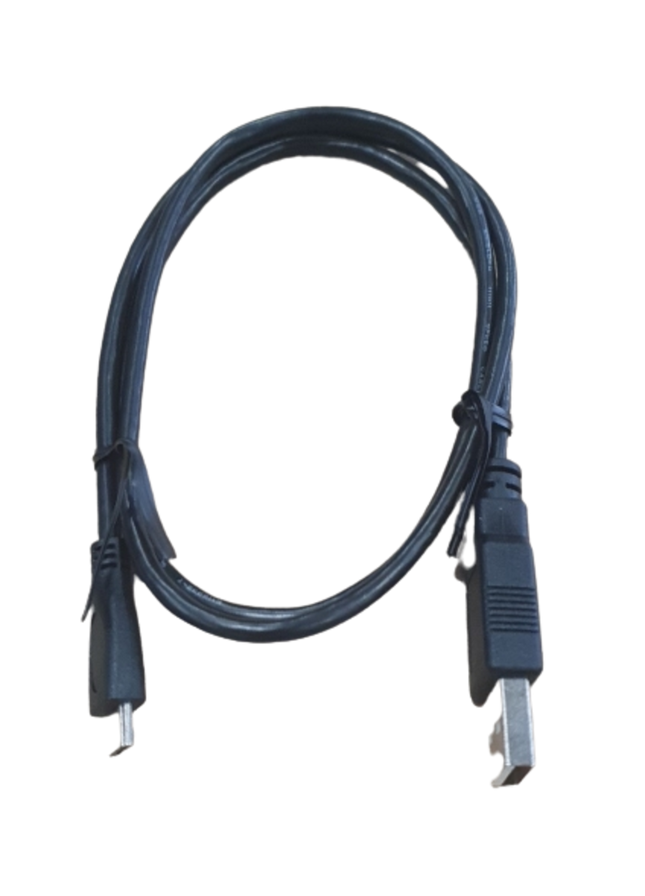

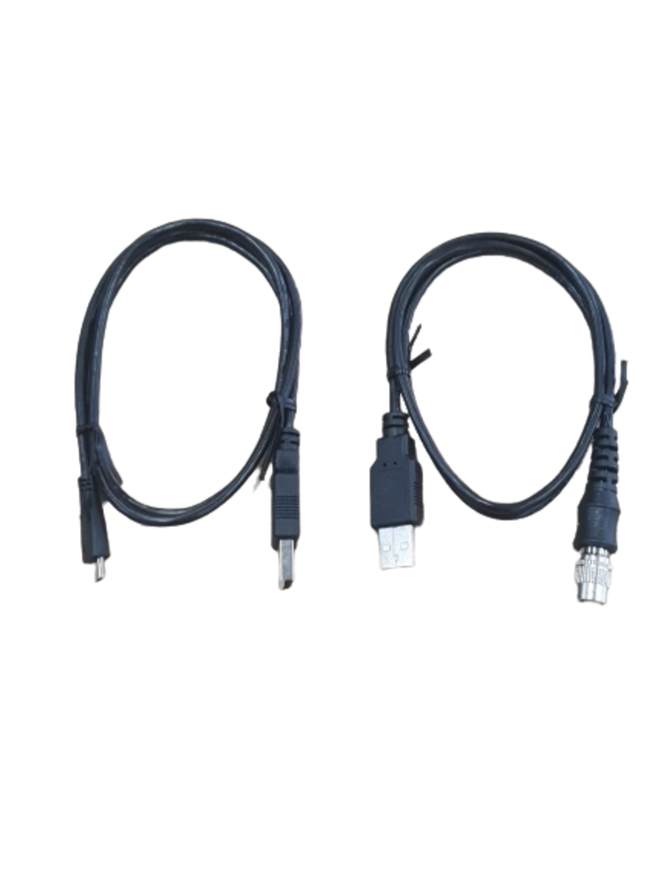

Includes two USB 2 cables:
One fitted with micro USB connector for programming gateways.
One fitted with Hirose HR10 plug for programming handsets
Latest Plus programming software downloadable here: Programming software
