Panorama

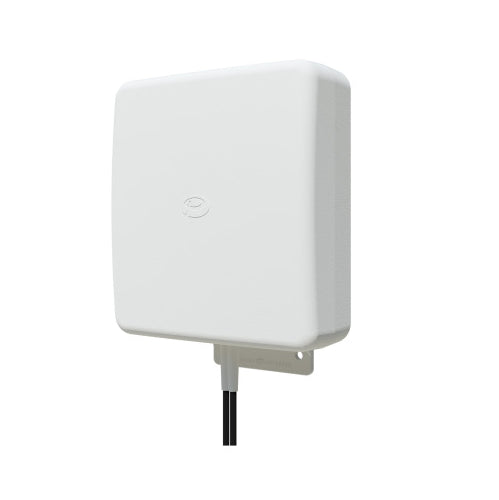

The WMM8GG-7-38 antenna is a high gain directional 2×2 MIMO signal boosting antenna for 4G and some 5G networks. Comes with a 5m SMA(m) cable.

Features:

• 3-in-1 antenna with directional 2×2 MIMO LTE and GPS
• High 6-9 dBi peak gain directional fixed-site antenna
• UV stable IP65 rated housing
• Integrate your wireless services into a single antenna
• Can be wall or mast-mounted

Read more less

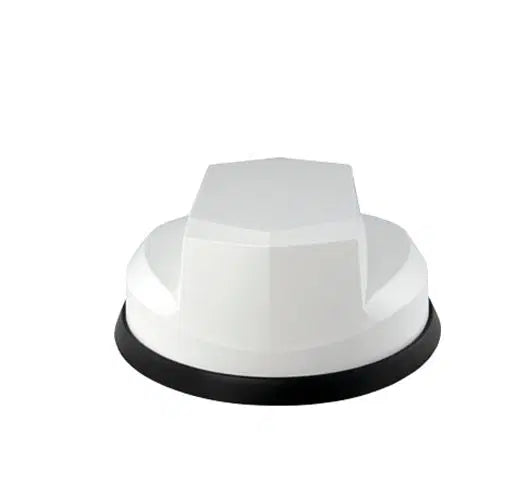

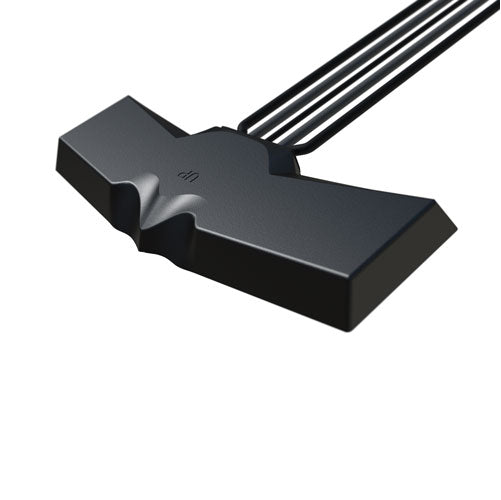

The Panorama BATG range is designed for Telematics applications requiring high-speed data with MiMo 4G / 5G and fall-back 3G/2G support along with optional positioning through GPS/GNSS, and optional dual-band 2.4/5.0-7.2 GHz WiFi 6e.

The isolated dual 4G/5G antennas cover 617-960/1710-6000 MHz and the efficient element design ensures a high first-time connection rate and an ongoing, robust communications link even in many low coverage areas.

Features:

• MiMo LTE product with distinctive BAT design
• Provides robust in-vehicle connectivity
• Discreet covert antenna
• 4G/5G LTE MiMo covering 600-6000 MHz
• SiSo or MiMo WiFi
• Active GPS/GNSS with advanced B13/14 filtering

Read more less

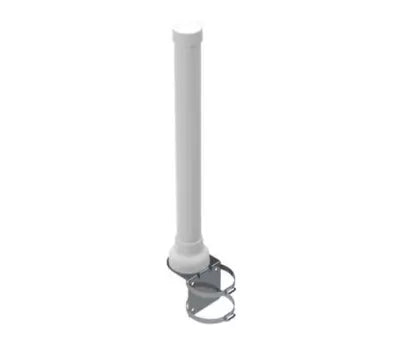

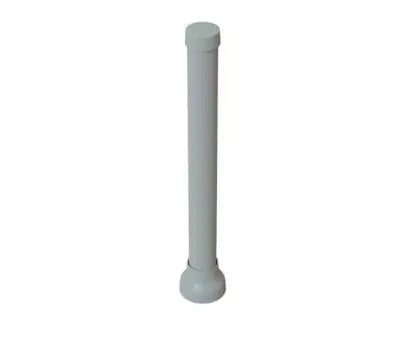

The Panorama 4G/5G MIMO Omni Antenna, 617 to 6000 MHz is a broadband antenna that covers 617-960/1427-6000 MHz and is suitable for external or internal installation. The mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast/rail mounting using the supplied clamps. The Omnidirectional radiation pattern allows easy placement of the antenna in an elevated position, without requiring directional alignment. The BSGM type is supplied with an integrated GPS/GNSS module with 26 dB LNA gain and advanced filtering to combat noise. This antenna is an ideal solution for IoT use in industrial and domestic environments for cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications. The weather and corrosion-resistant design also make the antenna suitable for certain marine and coastal applications.

Read more less

The Panorama 4G/5G MIMO Omni Antenna, 617 to 6000 MHz is a broadband antenna that covers 617-960/1427-6000 MHz and is suitable for external or internal installation. The mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast/rail mounting using the supplied clamps. The Omnidirectional radiation pattern allows easy placement of the antenna in an elevated position, without requiring directional alignment. The BSGM type is supplied with an integrated GPS/GNSS module with 26 dB LNA gain and advanced filtering to combat noise. This antenna is an ideal solution for IoT use in industrial and domestic environments for cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications. The weather and corrosion-resistant design also make the antenna suitable for certain marine and coastal applications.

Read more less

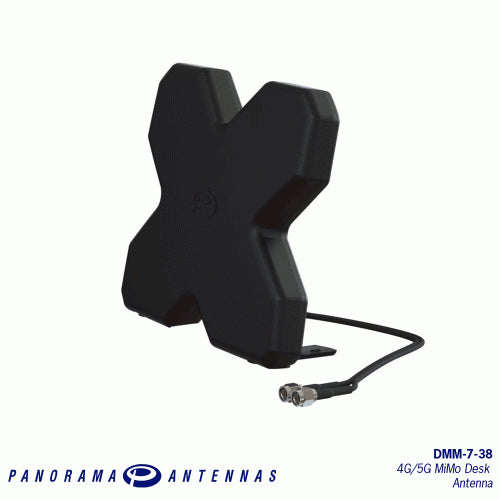

Use the DMM-7-38 to ensure a strong 4G or 3.6 GHz 5G connection and fast transfer speeds for your modem or router. It’s unique ‘X’ design enables MIMO connectivity across a huge frequency range and with the options of desk or window mounting the antenna is ideal for use on the move.

Features:

• Supports 2×2 MIMO 4G and 3.6 GHz 5G
• Desk, Window or Laptop Mount
• 2m cables

Read more less

Use the DMM-7-38 to ensure a strong 4G or 3.6 GHz 5G connection and fast transfer speeds for your modem or router. It’s unique ‘X’ design enables MIMO connectivity across a huge frequency range and with the options of desk or window mounting the antenna is ideal for use on the move.

Features:

• Supports 2×2 MIMO 4G and 3.6 GHz 5G
• Desk, Window or Laptop Mount
• 2m cables

Read more less

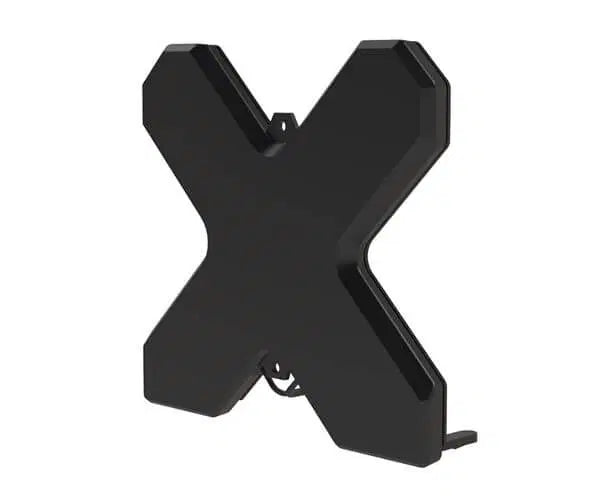

The Panorama 4×4 MiMo 4G/5G LTE Starfish Antenna is a future-proof solution for Cat 18/20 4G and 5G devices. Incorporating four separately fed, ultra-wideband elements for 617-960/1710-6000 MHz in a single housing, the DMM4 provides a 4×4 MiMo function. It can also provide a 2x 2×2 MiMo function for a router with dual modems, each requiring a 2×2 antenna system.  The DMM4 is highly portable and features desk mount feet that fold out for use, and fl at for transport. A suction window mount enables the user to optimize their signal in multiple locations, with instant installation and easy removal. For more permanent use, screw and adhesive pad mounting options are also provided. The antenna is supplied with two twinned 2m (6’) length coaxial cables, with the option of SMA, and TS9 connectors. The DMM4 is a cost-effective value-added product for network operators and service providers ensuring a stable link with improved data rates for subscribers, thereby improving satisfaction and retention.

Read more less

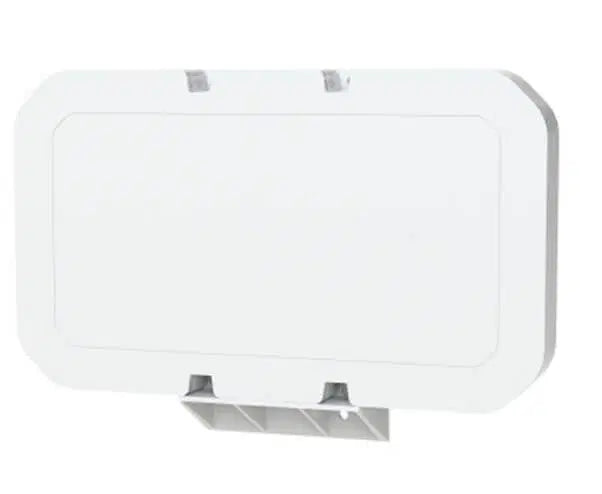

The Panorama DWMM4-6-60-5SP 4G-5G 4×4 MIMO Omnidirectional Antenna, 5m SMA(m) provides a solution for Global 4G/5G networks from 617 – 6000 MHz. Incorporating four separately fed ultra wideband elements in a single housing this antenna is suitable for a huge range of fixed site and failover applications. The supplied mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast mounting using the supplied clamps. The antenna can also be mounted with screws directly to non-conductive panels or internal walls or stood on a desk using supplied mounting feet. The omnidirectional radiation pattern allows easy placement of the antenna without requiring directional alignment. The DWMM4G type is supplied with an integrated GPS/GNSS module with 26 dB LNA gain and advanced filtering to combat noise. The antenna is fitted with an integrated flame retardant CS32 cable (FR CS29 for GPS/GNSS) which minimises exposed connector joints and simplifies cable management for easy installation.

Features:

• 4×4 MIMO Omnidirectional Antenna
• Multiple mounting options
• Optional GPS/GNSS
• IP66 rated

Read more less

The Panorama DWMM4-6-60-5SP 4G-5G 4×4 MIMO Omnidirectional Antenna, 5m SMA(m) provides a solution for Global 4G/5G networks from 617 – 6000 MHz. Incorporating four separately fed ultra wideband elements in a single housing this antenna is suitable for a huge range of fixed site and failover applications. The supplied mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast mounting using the supplied clamps. The antenna can also be mounted with screws directly to non-conductive panels or internal walls or stood on a desk using supplied mounting feet. The omnidirectional radiation pattern allows easy placement of the antenna without requiring directional alignment. The DWMM4G type is supplied with an integrated GPS/GNSS module with 26 dB LNA gain and advanced filtering to combat noise. The antenna is fitted with an integrated flame retardant CS32 cable (FR CS29 for GPS/GNSS) which minimises exposed connector joints and simplifies cable management for easy installation.

Features:

• 4×4 MIMO Omnidirectional Antenna
• Multiple mounting options
• Optional GPS/GNSS
• IP66 rated

Read more less

This high-performance antenna offers multiple antenna functions for applications where a cost-effective, efficient and robust antenna is essential. It is ideal for vending machines, payment terminals and other M2M applications.

Features:

• Consists of up to 9 elements:
• Two isolated high-performance antenna elements covering 617-960/1710-6000 MHz offer MiMo/diversity at cellular/LTE frequencies.
• Up to 6 optional dual-band elements covering 2.4 & 7.2 GHz support MiMo/diversity operation for WiFi.
• An optional high-performance GPS/GNSS antenna with an integrated 26 dB gain LNA and high-quality filtering offers unparalleled positioning accuracy.
• Does not require a metallic ground plane.
• Maintains a high level of performance even when mounted on non-metallic surfaces.

Read more less

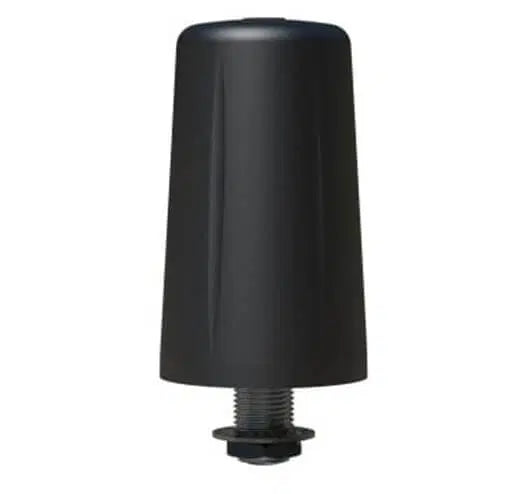

The LPB-6-60 antenna is a cost-effective Omnidirectional panel mount antenna for 4G/3G/2G and 5G devices from 617-960/1710-6000 MHz. This Antenna is an ideal solution for use in industrial and domestic environments with cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications.

Features:

• Low profile wideband antenna
• Covers all 3G/4G/5G LTE cellular bands from 600-6000 MHz
• IP66 for outdoor use
• Allows for SiSo LTE connectivity in a small antenna profile and footprint
• Suitable for use across multiple applications and industries

Read more less

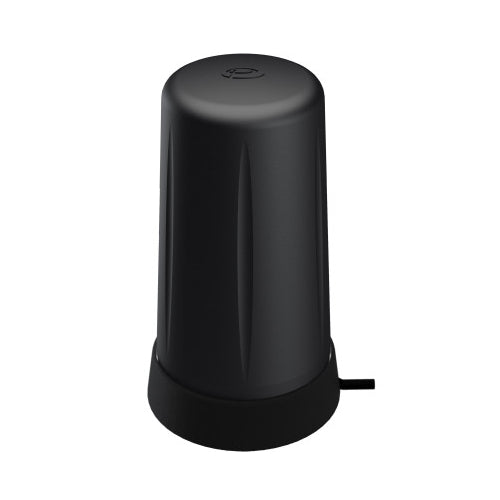

Panorama's LPBEM-6-60 antenna is a high-performance SISO antenna that supports 3G, 4G & 5G technologies across 617-960 MHz and 1710-6000 MHz frequency bands. Comes in black color, fitted with 2m RG174 flexible cable and SMA (M) termination.

Read more less

This antenna offers ground-plane independent Omni-directional performance across global cellular and LTE bands, making it a versatile solution for any number of applications.  The efficient element design ensures a high first-time connection rate and an ongoing, robust communications link even in problematic coverage areas.

Features:

• Low profile, wall panel or enclosure mount
• Mount by screw fixings or adhesive pad*
• Supports 3G/4G, 698-960/1710-2700 MHz

Read more less

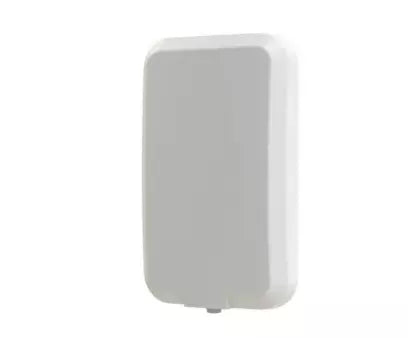

Panorama 4G/5G 2×2 MIMO Directional Antenna, 617 to 6000 MHz, 0.5m N Male incorporates two wideband element assemblies in a single housing and is designed to support fixed-site client devices. This antenna offers a 6 dBi peak gain for 617- 960 MHz and a 9 dBi peak gain for 1710-6000 MHz. The weather-resistant housing is designed for wall or mast mounting with the supplied hardware.

Read more less

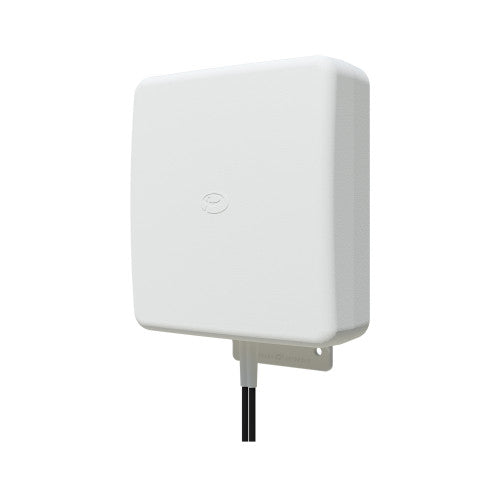

The WMM8G-7-38 antenna is a high gain directional 2×2 MIMO signal boosting antenna for 4G and some 5G networks.

Features:

• 2×2 MiMo wideband cellular LTE antenna
• High 9 dBi peak gain directional product
• Covers wideband 700-3800 MHz for 2G/3G/4G/5G LTE
• 6-9 dBi peak gain directional fixed-site antenna
• Ideal product for fringe network areas

Read more less

Panorama 4G-5G Desk / Wall / Mast Mount MIMO Omni, 700 to 3800 MHz provides an innovative and Future Proof solution for 3G/4G and 3.4-3.8 GHz 5G networks. Incorporating two separately fed, ultra-wideband elements in a single housing, it provides a client-side 2×2 MiMo antenna system for the networks of today and tomorrow. With between 2-5 dBi gain in the range 698-3800 MHz, the WMMG gives a great performance, whilst maintaining a wide beam pattern which is ideal for metro and urban areas. The rugged, weatherproof housing is designed for wall or mast mounting and hardware is provided. A desk stand is also included to enable the antenna to be positioned on a window sill if preferred. The antenna is supplied with an integral “twinned” CS29 coaxial cable. WMMG-7-38-5SP version has a 5m length, fitted with sma plug connectors for a simple ‘plug & play’ installation. WMMG-7-38-03NJ version has a 30 cm length, fitted with N socket connectors, which enables the use of lower loss cable types for longer runs. The WMMG is a cost-effective value-added product for network operators and service providers ensuring a stable network connection with improved data rates for subscribers, improving satisfaction and retention.

Read more less

Panorama 4G-5G Desk / Wall / Mast Mount MIMO Omni, 700 to 3800 MHz provides an innovative and Future Proof solution for 3G/4G and 3.4-3.8 GHz 5G networks. Incorporating two separately fed, ultra-wideband elements in a single housing, it provides a client-side 2×2 MiMo antenna system for the networks of today and tomorrow. With between 2-5 dBi gain in the range 698-3800 MHz, the WMMG gives a great performance, whilst maintaining a wide beam pattern which is ideal for metro and urban areas. The rugged, weatherproof housing is designed for wall or mast mounting and hardware is provided. A desk stand is also included to enable the antenna to be positioned on a window sill if preferred. The antenna is supplied with an integral “twinned” CS29 coaxial cable. WMMG-7-38-5SP version has a 5m length, fitted with sma plug connectors for a simple ‘plug & play’ installation. WMMG-7-38-03NJ version has a 30 cm length, fitted with N socket connectors, which enables the use of lower loss cable types for longer runs. The WMMG is a cost-effective value-added product for network operators and service providers ensuring a stable network connection with improved data rates for subscribers, improving satisfaction and retention.
