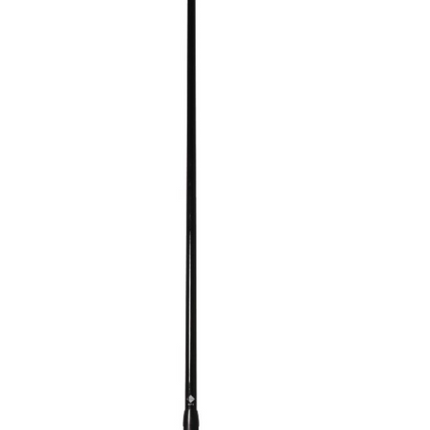

This black replacement whip fits CDQ8195-B collinear antenna which is very popular for use on vehicles and routers. This Australia-made antenna from RFI is part of the CDQ8100 antennas series and is known for its exceptional gain performance across all bands over the frequency range 698-3800 MHz, thanks to the patented Meanderâ„¢ technology then enables efficient radiating elements.
Product Features:
-
Patented Collinear Design: Meanderâ„¢ circuits for ultimate pattern and gain stability
-
True Multi-Band Coverage: Ideal for new 5G/LTE networks with comprehensive coverage
-
High Gain Performance: Suited for fringe and rural applications
-
Installation: Designed for harsh Australian conditions and includes an integrated spring with threaded stud/nut for easy installation on vehicles.
-
Q-Fit® Removable Whip System: Easy removal in low-height environments
-
Integrated N Male and Female Connectors: Versatile whip removal and assembly
Whip Comparison of CDQ8100 Series Antennas
- CDQ8194 Whip: 5.5 dBi low-band gain, 0.74m whip length
- CDQ8195 Whip: 6.5 dBi low-band gain, 0.88m whip length
- CDQ8197 Whip: 7.5 dBi low-band gain, 1.11m whip length
- CDQ8199 Whip: 8.5 dBi low-band gain, 1.94m whip length
CDQ8195-B supports 3GPP technologies 2G, 3G, 4G & 5G over 698-3800 MHz. The antenna has a gain of 6.5 dBi on low band 698-960 MHz and 6.5 dBi on the latest 5G band 3400-3800 MHz. CDQ8195 antenna has a slightly better low-band gain than CDQ8194 antenna. CDQ8195 comes in black color with a 5m low loss RG58 cable with SMA(M) termination.
This high-quality antenna is perfect for harsh environment like that of Australia, when you’re looking for same excellent performance all-round the year.
This antenna is designed as SISO. To achieve MIMO operation (better performance), for example 2x2 MIMO, two antennas can be installed separated by 43cm.
RFI Vehicle Antenna Comparison Table
Below is a comparison table of CD8100 Series, CDR8100 Series, CDQ8100 Series, CD8200 Series, COL8100 Series and CSM700 Series:
| Criteria |
CD8100 Series
|
CDR8100 Series
|
CDQ8100 Series
|
CD8200 Series
|
COL8100 Series
|
CSM700Series
|
| CD8194 |
CD8195 |
CD8197 |
CDR8194 |
CDR8195 |
CDQ8194 |
CDQ8195 |
CDQ8197 |
CDQ8199 |
CD8294 |
CD8295 |
COL8195 |
COL8199 |
|
Frequency MHz
|
698-960 / 1710-2170 / 2300-2700 / 3400-3800 |
|
Nominal Gain dBi
|
| 698-960 MHz |
5.5 |
6.5 |
7.5 |
5.5 |
6.5 |
5.5 |
6.5 |
7.5 |
8.5 |
5.5 |
6.5 |
6.5 |
8.5 |
2 |
| 1710-2170 MHz |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
3.5 |
| 2300-2700 MHz |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
5 |
| 3400-3800 MHz |
6.5 |
6.5 |
6.5 |
6.5 |
6.5 |
6.5 |
6.5 |
6.5 |
6.5 |
6.5 |
6.5 |
6.5 |
6.5 |
5 |
|
Mount Assembly
|
Fixed Spring Assembly |
Quick Fit Q-fit® Antenna Mount with Heavy Duty Spring Assembly |
Threaded Stud |
SS Mounting Tube |
16mm Hole |
|
Mounted Length mm
|
645 |
920 |
1150 |
665 |
940 |
705 |
970 |
1210 |
2080 |
550 |
820 |
965 |
1730 |
80 |
|
Cable & Connector
|
5m Low Loss Cable with SMA Male Connector |
Stud & Nut |
Application Areas:
- CDQ8195 is widely used vehicles for cellular coverage improvement.
- Due to its excellent low-band gain, antenna is highly recommended to use with Cel-Fi ROAM R41 signal repeater.
- This antenna is also widely used for in-car cellular routers like Teltonika's RUTX50 in a MIMO configuration.
| 3GPP Band |
Frequency Band |
Operator |
Gain (dBi/dBd) |
| 28L |
700 MHz* |
Telstra (4GX), Optus (4G+) |
6.5 dBi |
| 28U |
700 MHz* |
Vodafone (4G+) |
6.5 dBi |
| 5 |
850 MHz |
Telstra, Vodafone |
6.5 dBi |
| 8 |
900 MHz |
Optus, Vodafone |
6.5 dBi |
| 3 |
1800 MHz |
Telstra, Optus, Vodafone |
4.5 dBi |
| 1 |
2100 MHz |
Telstra, Optus, Vodafone |
4.5 dBi |
| 40 |
2300 MHz |
Optus (TDD) |
5.5 dBi |
| 7 |
2600 MHz |
Telstra, Optus |
5.5 dBi |
| 78 |
3500 MHz |
Telstra (5G), Optus(5G), Vodafone(5G) |
6.5 dBi |
| 257 |
26 GHz |
Telstra, Optus, Vodafone |
- |
*Australia operators have also launched 5G on 700 MHz Band. 5G can only be supported by the antenna on this band if the operator as well as the device used also supports 5G.
In the Box:
- 1 x Removeable CDQ8195 whip in black colour
Installation Guide:
- The antenna comes with an integrated spring with threaded stud/nut that makes antenna installation as easy as ABC.
- The antenna assembly is based on Q-Fit® technology, allowing easy removal of the whip when not required. The whips of the CDQ8100 Series can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.
- The antenna can be mounted on a vehicle guard, boot, bull bar or other locations using an appropriate mounting bracket, however in the case of the CDQ8100 Series, we recommend mounting on a bull bar only.
- When choosing a mounting location, try to ensure that the whole antenna (in particular, the fibreglass whip section itself) is as high as possible and as far away as practical from metallic obstructions (roof racks or vehicle pillars). This will minimise reflection or shadowing of the signal.
- Ensure there are no other antennas installed within 0.6 metre of the antenna when installed to minimise signal interference.
- This antenna has been factory terminated with an SMA male connector to simplify installation and comes complete with 5m of RG58 low loss cable. In most cases no further cable termination should be required.
- CDQ8100 antenna is supplied with the whip not installed. If this is the case, please remove (& keep) the protective cap and screw the antenna onto the spring assembly and tighten as necessary.
Documents:
CDQ8195-B Antenna - Datasheet
CDQ8195-B Antenna - Specifications
CDQ8195-B Antenna - Installation Guide
