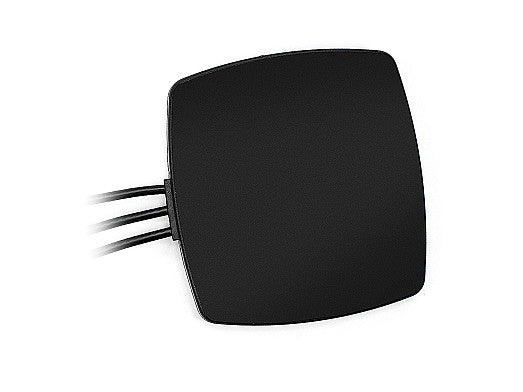

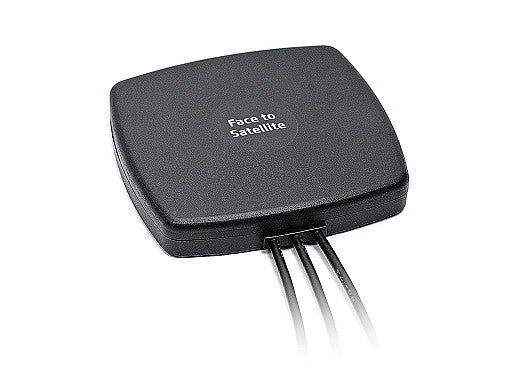

The 2J 2J6084PGFa Falcon Antenna, 617-5925 MHz, Adhesive Mount, Black is low-profile compact design and high-quality adhesive mount make this antenna an ideal solution for outdoor applications with quick and easy installation on a wide range of surfaces. This 4G-5G WiFi ultraband MIMO antenna is ideal for various high-power applications, offering exceptional durability and protection.

Product Features:

• This 2J6084PGFa antenna features a 3-in-1 combination design, covering an ultra-wide band range of 617 to 5925 MHz, and providing full 4GLTE backward compatibility.
• It is ground plane independent, allowing for a wide range of installation options with minimal restrictions.
• The antenna offers a 4.9 dBi 5G NR peak gain, enhancing signal strength and reliability.
• It includes an active GNSS antenna with 28 dB active gain and a pre-filter GNSS voltage range of 1.5 - 3.6 V.
• The antenna is housed in a compact design (80 x 76 x 16 mm) made from black or white ABS/UV stable material, which is IP67 certified for superior protection against water and dust.
• Cable 1 and 2 come with standard SMA-Male connectors and 300 cm long DACAR302 coaxial cables, known for their environmental properties, best coupling resistance, and stable impedance.
• Cable 3 comes with a standard SMA-Male connector and a 300 cm long LMR100 low loss coaxial cable, offering an economical solution with excellent performance for short antenna runs.
• The low-profile design ensures it can be easily integrated into various setups, and the customizable cable and connector options enhance its versatility.
• The antenna supports the health of the environment by being fully RoHS compliant, manufactured without hazardous materials.

Application Areas:

• This antenna is perfect for use in automotive applications, providing reliable performance and environmental protection.
• It is suitable for renewable energy systems, ensuring consistent and dependable connectivity.
• This antenna is ideal for high-power industrial applications, where durable and robust equipment is required.
• It is versatile enough for use in various projects requiring a high-quality, low-profile antenna solution.

In the Box:

• 1x 2J 2J6084PGFa Falcon Antenna, 617-5925 MHz, Adhesive Mount, Black

Documents:

2J6084PGFa 5G/GPS Antenna - Datasheet
