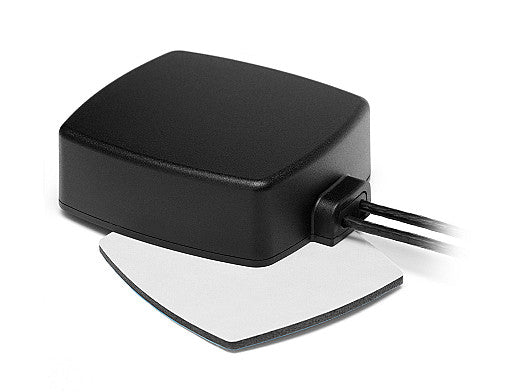

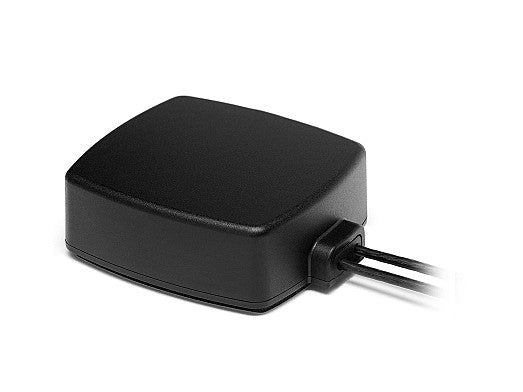

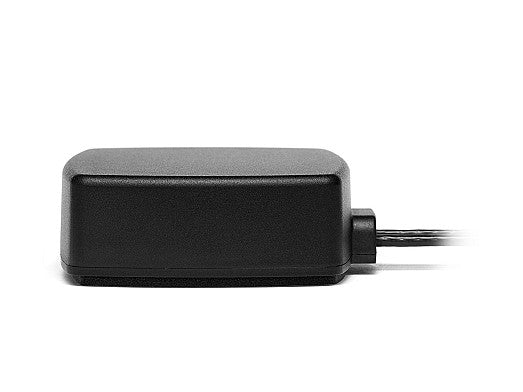

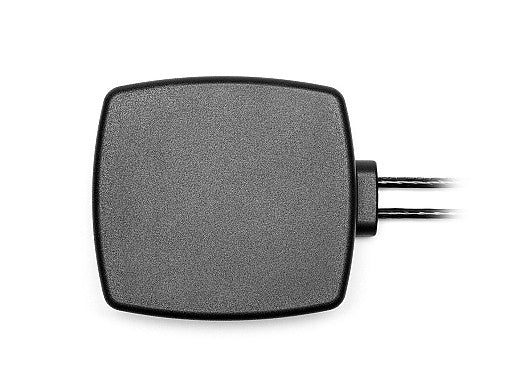

The 2J 2J6983Pa 5G Low Profile Antenna, MIMO, 617-5925 MHz, Adhesive Mount is designed for reliable performance in demanding outdoor environments. This 4G-5G WiFi ultraband 2x2 MIMO antenna is ideal for various high-power applications, offering exceptional durability and protection.It comes with standard SMA-Male connector and 300 cm long D302 Coaxial cable, a popular choice for automotive applications due to its environmental properties.

Product Features:

• This 2J6983Pa antenna features a 2-in-1 combination design, covering an ultra-wide band range of 617 to 5925 MHz, and providing full 4GLTE backward compatibility.
• It is ground plane independent, allowing for a wide range of installation options with minimal restrictions.
• The antenna offers a 6.3 dBi 5G NR peak gain, enhancing signal strength and reliability.
• It is housed in a compact design (89 x 76 x 30 mm) made from black or white ABS/UV stable material, which is IP67 and IP69 certified for superior protection against water and dust.
• This antenna is designed with high-grade adhesive mounting, allowing for easy installation on metal or non-metal surfaces.
• It comes with a standard SMA-Male connector and a 300 cm long D302 coaxial cable, making it a popular choice for automotive applications due to its environmental properties.
• The low-profile design ensures it can be easily integrated into various setups, and the customizable cable and connector options enhance its versatility.
• The antenna supports the health of the environment by being fully REACH and RoHS compliant, manufactured without hazardous materials.

Application Areas:

• This antenna is perfect for use in automotive applications, providing reliable performance and environmental protection.
• It is suitable for renewable energy systems, ensuring consistent and dependable connectivity.
• This antenna is ideal for high-power industrial applications, where durable and robust equipment is required.
• It is versatile enough for use in various projects requiring a high-quality, low-profile antenna solution.

In the Box:

• 1x 2J 2J6983Pa 5G Low Profile Antenna

Documents:

2J6983Pa 5G Antenna - Datasheet
