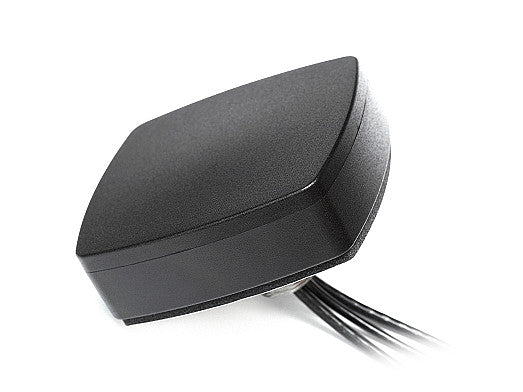

The 2J 2J6984BGFa Phoenix 5G, GNSS Antenna, MIMO, 617-5925 MHz, Screw Mountis designed for reliable performance in demanding environments. This 3-port combo stud antenna is ideal for various high-power applications.

Product Features:

• This 2J6984BGFa antenna covers an ultra-wide band range of 617 to 5925 MHz, providing full 4GLTE backward compatibility and supporting sub 6 GHz bands.
• It features a 3-in-1 combination design with 2x2 MIMO and an active GNSS antenna, offering 5.1 dBi 5G NR peak gain and 28 dB GNSS active gain with a pre-filter GNSS voltage range of 0.5 - 3.6 V.
• The antenna is housed in a low-profile box shape (80 x 74 x 25.6 mm) made from highly durable ASA UV stable material, available in black and white.
• This antenna is fully IP67 and IP69 certified, providing superior protection against water and dust in harsh environments.

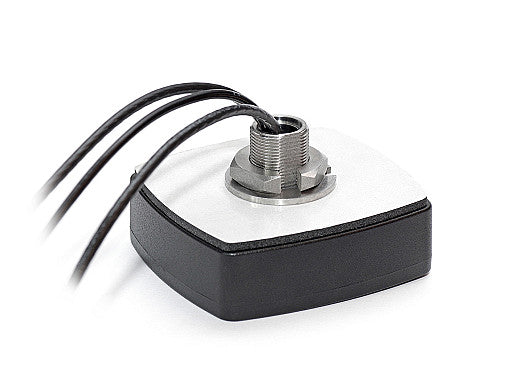

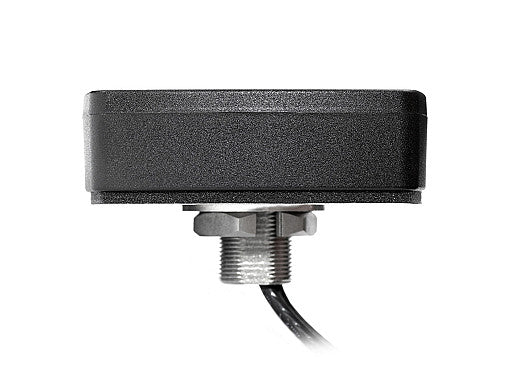

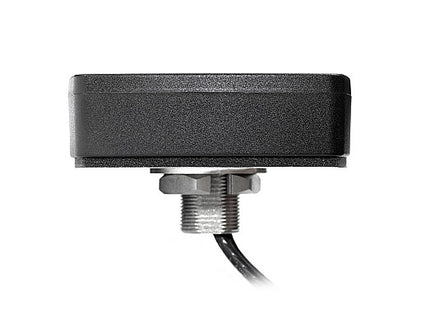

• It is designed with a heavy-duty anti-rotation screw mount, allowing for secure installation on vertical or horizontal surfaces without the need for grounding.
• The omni-directional radiation pattern ensures optimal and uninterrupted signal strength when aligned in a 360-degree line of sight.
• This antenna supports customizable cable and connector options, enhancing its versatility and ease of use.

Application Areas:

• This antenna is perfect for use in PowerPlus Eco & LiFe Premium batteries, providing reliable performance.
• It is suitable for renewable energy systems, ensuring consistent and dependable connectivity.
• This antenna is ideal for high-power industrial applications, where durable and robust equipment is required.
• It is versatile enough for use in battery energy storage systems (BESS) and other projects requiring a high-quality antenna solution.

In the Box:

• 1x 2J 2J6984BGFa Phoenix 5G, GNSS Antenna

Documents:

2J6984BGFa 5G/GNSS Antenna - Datasheet
