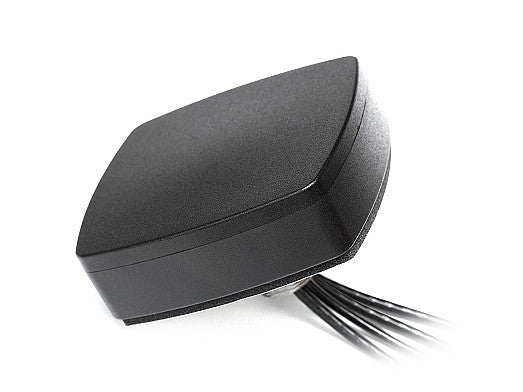

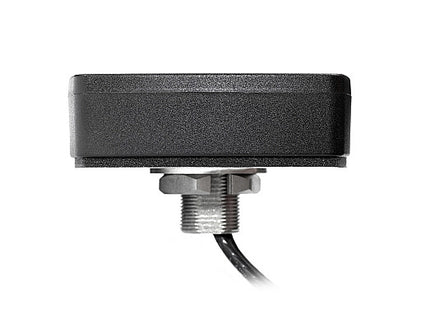

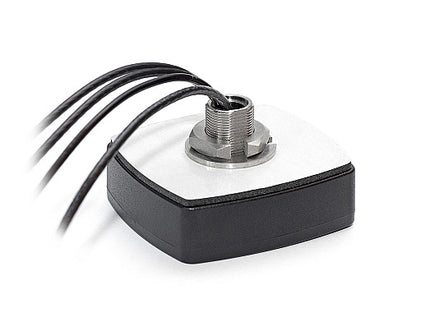

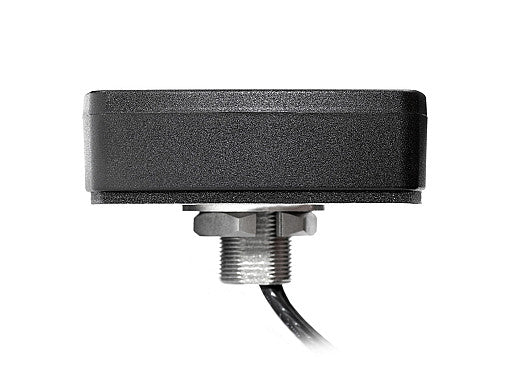

2J6986BGFc Phoenix Antenna measures 80 x 74 x 25.6 mm and is fully IP67 and IP69 certified and the perfect antenna solution for external permanent outdoor installations. The boxed shaped antenna housing is manufactured with durable PC/ASA material available in black and white housing colours. It is ground plane independent and designed with an anti-rotation screw mount allowing installation to a wide range of surfaces without the need for grounding or free space.

Product Features:

• The 2J Phoenix 3M is a 4-in-1 combo antenna supporting 4G/5G Sub-6 GHz, dual-band WiFi-6E, and active GNSS—designed for high-performance and future-proof connectivity.
• Operates across an ultra-wide frequency range from 617 to 7125 MHz, delivering full 4G LTE backward compatibility and peak 5G NR performance at 3.2 dBi gain.
• Built-in dual-band Wi-Fi antenna supports 2.4/5.0/6.0 GHz bands with a peak gain of 1.7 dBi, ideal for Wi-Fi 6E applications.
• Equipped with an active GNSS antenna featuring a pre-filter, 28 dB gain, and a voltage range of 1.5 – 3.6 V, ensuring precise and reliable satellite positioning.
• Certified with IP67, IP69 for waterproof/dustproof performance and anti-rotation screw mount for secure installations on all surfaces.
• Ground plane independent for flexible mounting on non-metallic or irregular surfaces without requiring grounding.
• Supplied with 300 cm cables: D302 for cellular/ISM, D100 for GNSS, and SMA-Male (RP) connectors—fully customizable upon request.
• Environmentally responsible design—REACH and RoHS compliant.

Application Areas:

• Perfect for telematics, fleet tracking, smart transportation, public safety, remote monitoring, and next-gen IoT deployments.
• Suitable for vehicle rooftops, enclosures, machinery, and outdoor infrastructure requiring multi-network connectivity in a compact form.

In the Box:

• 1 x 2J Phoenix 3M Ultraband MIMO Antenna (2J6986BGFc)
• SMA-Male (RP) connector
• 300 cm long D302 (cellular/ISM)/ D100 (GNSS) cables.

Documents:

2J6986BGFc IoT Antenna - Datasheet
