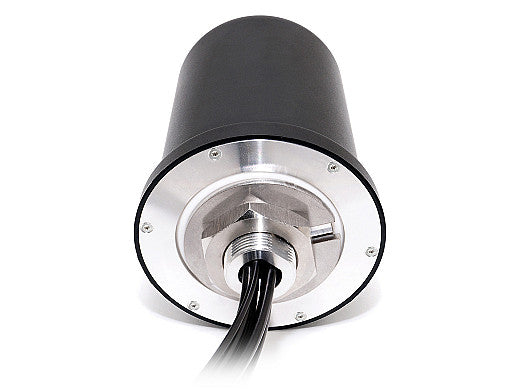

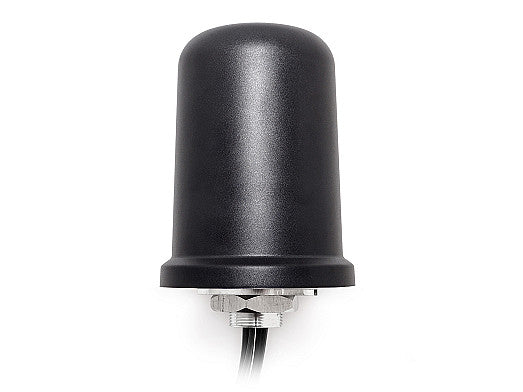

2J7183Bc 4x4 MIMO 5G Antenna is protected with a robust and heavy-duty housing made with high-quality acrylonitrile styrene acrylate (ASA) UV stable material, known for its thermal resistant properties, and an Aluminium Alloy base for maximum durability. Ground plane independence and screw mount technology allow for solidly locking the 2J 4G-5G Wi-Fi 617 to 5925 MHz Ultraband 4x4 antenna on top of its mounting location making its installation easy and reliable. It comes with standard SMA-Male connector and 300 cm long LL195 Standard cable, a popular choice for in high-frequency applications up to 6 GHz. Cables and connectors can be customized to specific requirements.

Product Features:

• The 2J7183Bc is an ultraband 4x4 MIMO antenna operating across 617 to 5925 MHz, supporting full 4G LTE and 5G NR Sub-6 GHz bands.
• Delivers a high peak gain of 4.7 dBi, providing superior performance in data-intensive and high-speed wireless communication applications.
• Features a 4-in-1 configuration in a compact and rugged form, ideal for demanding environments requiring multiple data streams and reduced latency.
• Built with a durable ASA UV-stable housing and a robust aluminium alloy base for enhanced impact, weather, and corrosion resistance.
• Ground plane independent design enables versatile mounting on non-metallic and irregular surfaces.
• Comes with anti-rotation screw mount and IP67, IP69, and IK09 certifications for maximum durability and protection in outdoor or industrial settings.
• Equipped with four 300 cm LL195 standard cables and SMA-Male connectors, customizable based on installation needs.
• REACH and RoHS compliant, manufactured without hazardous substances to ensure environmental safety.

Application Areas:

• Ideal for 5G NR networks, public safety, remote monitoring, smart city infrastructure, and industrial IoT deployments.
• Recommended for vehicles, enclosures, equipment cabinets, and telematics installations.

In the Box:

• 1 x 2J7183Bc Ultraband 4x4 MIMO 5G Stud Mount Antenna
• 300 cm long LL195 Standard cable
• SMA-Male connector

Documents:

2J7183Bc 5G Antenna - Datasheet
